Used Howo TX 6x4 U-shaped Dump Truck

Model: ZZ3257N384GB1R

Engine model: WD615.47, 371HP

Transmission: HW19710, 10F & 2R

Front Axle: VGD95, 1*9500 KGS

Overall Dimension: 8600*2550*3450 mm

EMAIL-11 whatsapp1 Leave A Message message-3
Used Howo TX 6×4 U-shaped Dump Truck

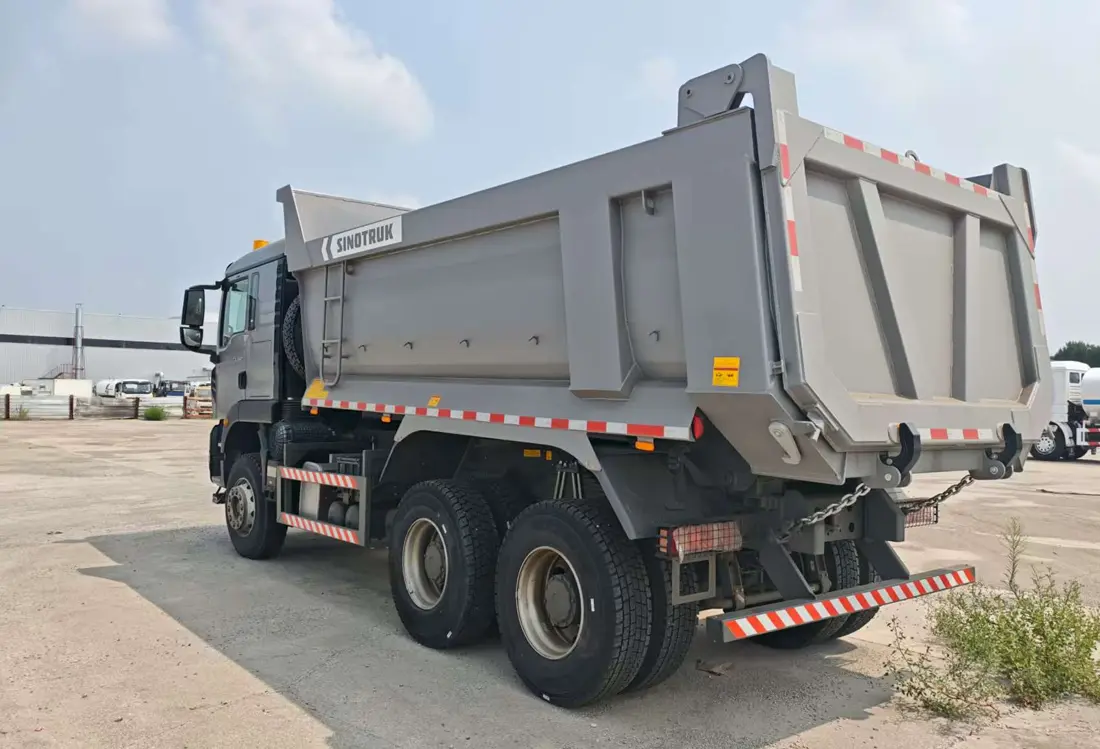

Used Howo TX 6×4 U-shaped Dump Truck-1

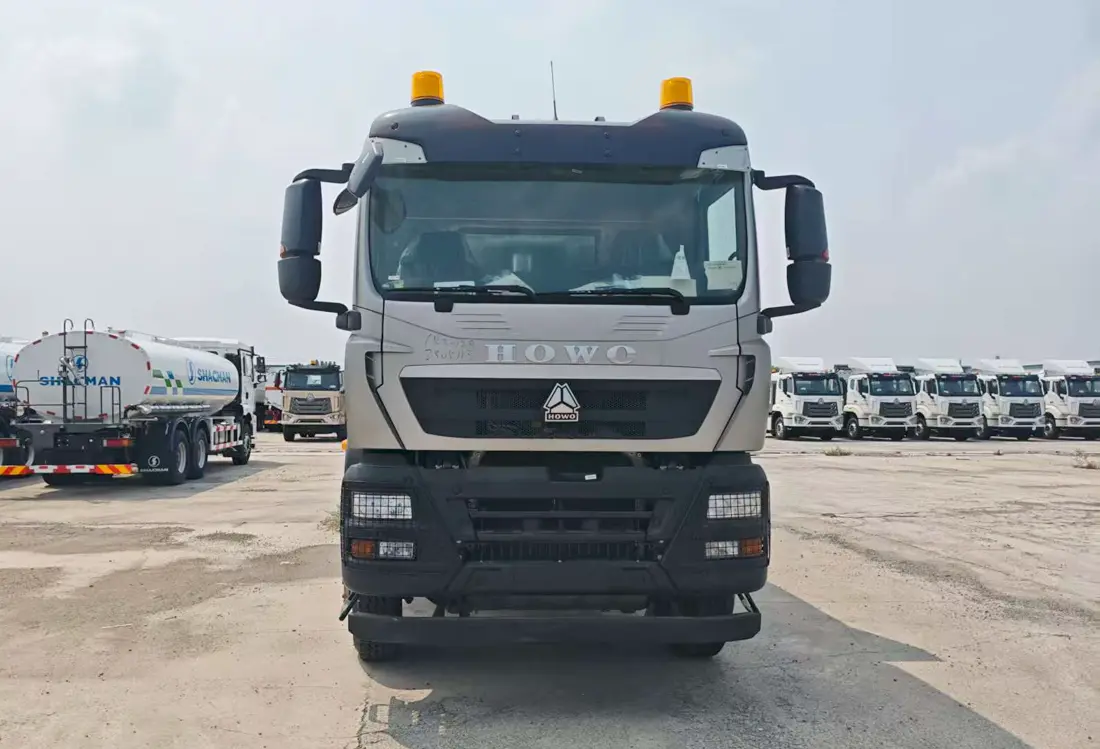

Used Howo TX 6×4 U-shaped Dump Truck-2

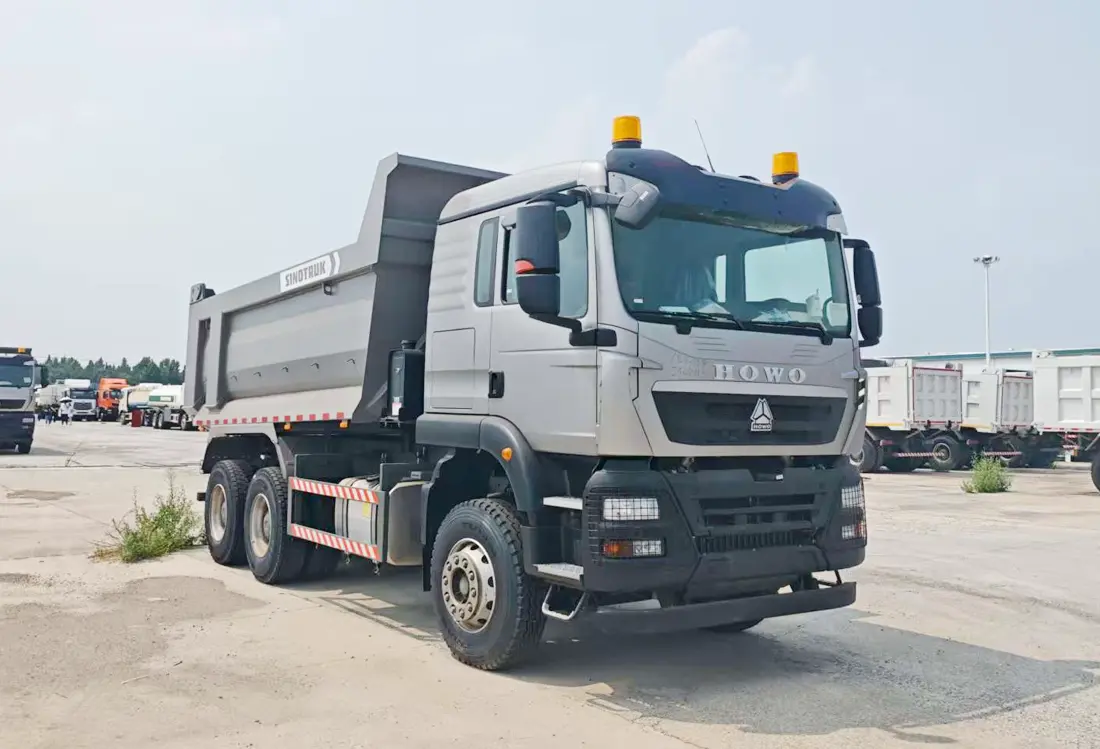

Used Howo TX 6×4 U-shaped Dump Truck-3
Overview

Used Sinotruk HOWO TX 6×4 U-shaped Dump Truck: Heavy-Duty Workhorse for Construction & Mining

The Used Sinotruk HOWO TX 6×4 U-shaped Dump Truck is a robust, high-capacity heavy-duty vehicle engineered for construction material transport, mining waste disposal, and urban infrastructure projects. Featuring a unique U-shaped cargo box design optimized for efficient material discharge, this pre-owned dump truck combines powerful performance, durable construction, and reliable hydraulic systems to handle the toughest hauling tasks. It is a cost-effective solution for construction firms, mining operations, and waste management companies seeking to expand their fleet without the high upfront cost of new equipment.

Used Howo TX 6×4 U-shaped Dump Truck-1

Used Sinotruk HOWO TX 6×4 U-shaped Dump Truck: Core Performance & Cargo Handling

Refurbished HOWO TX 6×4 U-shaped dump trucks retain the platform’s key features optimized for heavy-duty hauling:

U-shaped Cargo Box: The U-shaped design allows for fast and complete discharge of materials, minimizing residue buildup and reducing the risk of clogging. The box is made of high-strength wear-resistant steel with an anti-corrosion coating, ensuring durability and longevity even when transporting abrasive materials. Refurbished units undergo box cleaning, anti-corrosion coating inspection, and leak testing to ensure reliable operation.

Used Howo TX 6×4 U-shaped Dump Truck-3

Used Sinotruk HOWO TX 6×4 U-shaped Dump Truck: Refurbishment Quality Assurance

Used HOWO TX 6×4 U-shaped dump trucks undergo rigorous inspections and repairs to ensure they meet performance standards:

Mechanical Inspections: Full engine diagnostics, transmission service, brake system overhaul, and hydraulic tipping mechanism testing. Worn components such as injectors, turbochargers, and clutch plates are replaced to ensure optimal performance.

Cargo Box Maintenance: Box cleaning, anti-corrosion coating inspection, leak testing, and replacement of damaged hydraulic components. The box is also tested to ensure it tips smoothly and discharges materials completely.

Used Howo TX 6×4 U-shaped Dump Truck

Used Sinotruk HOWO TX 6×4 U-shaped Dump Truck: Applications & Suitability

The used HOWO TX 6×4 U-shaped dump truck is versatile enough for various heavy-duty applications:

Construction Projects: Transporting sand, gravel, cement, and construction waste to and from building sites, road construction, and bridge projects.

Mining Operations: Hauling mining waste, ore, and materials from remote mining sites to processing facilities.

Waste Management: Collecting and disposing of demolition waste, municipal waste, and industrial waste in urban and rural areas.

Function
Howo Sinotruk Engine
MC Series Engine – SINOTRUK's Exclusive High-End Power
Experience more power with less fuel: Employing the most advanced BOSCH high-pressure common rail system, the ECU precisely controls the fuel injection process according to the engine’s operating state, achieving a maximum injection pressure of 1600 bar to ensure superior fuel atomization, increased engine power, and reduced fuel consumption. Durable and Reliable: The cylinder block is constructed from vermicular graphite cast iron, offering increased rigidity and strength, enabling thinner walls, and reducing engine weight. Compared to traditional gray cast iron, vermicular graphite cast iron offers a 75% increase in tensile strength, a 40% increase in elastic modulus, and a 100% increase in fatigue strength.
Sinotruk Gearbox Assembly-1
Transmission - Always in the Right Gear
The HW series transmission incorporates a globally advanced transmission design, employing a double countershaft main transmission coupled with a planetary gear auxiliary transmission. This results in simpler, more reliable, and more durable PTO and gear shifting operations.
Sinotruk Howo Axles
Axles - Carry More, Cost Less
The MC series drive axles and V series steering axles are engineered based on advanced German axle technology and improved with the latest technical standards, offering higher transmission efficiency, superior heat dissipation, increased load capacity, and extended service life to accommodate various road conditions. The main reducer utilizes an Oerlikon gear, offering a 10% increase in strength and improved transmission efficiency
Sinotruk Howo Chassis
Chassis: A Good Foundation
The HOWO-TX chassis is constructed from high-strength steel, providing exceptional resistance to compression, torsion, and impact. The frame is engineered to handle both the heavy loads of cargo transport and the intense vibrations encountered on challenging roads, providing the strength necessary for vehicle stability and long-lasting durability. A variety of suspension configurations are available, allowing users to select the optimal setup for their specific transportation needs, thereby enhancing operational efficiency and economic benefits.
Specifications
Parameter Specification
Model Howo TX 340hp 6×4 Dump Truck U-shaped Bucket
Engine Power 340 HP (Horsepower)
Engine Model SINOTRUK WD615 series, Euro II emission standard
Drive Type 6×4 (6 wheels, 4 driving)
Transmission HW19710, 10 forward & 2 reverse speeds
Cab TX cab, with one sleeper, A/C, safety belts
Front Axle HF9, 9-ton loading capacity
Rear Axle HC16, 16-ton loading capacity, double reduction
Steering ZF8118 hydraulic steering with power assistance
Tires 12.00R20, radial tire (10 pieces + 1 spare)
Cargo Box Dimensions (L*W*H) 5600 x 2300 x 1500 mm (customizable)
Cargo Box Thickness Bottom: 8mm, Side: 6mm
Hydraulic Lift System Front lifting type (or Middle lifting)



Gallery

The Howo TX series is the high-end successor to the classic HOWO7, making it a top-tier choice in the used market for those who want better reliability and driver comfort without the price tag of a new MAX or SITRAK.

Used Howo TX 6×4 U-shaped Dump Truck-3
Used Howo TX 6×4 U-shaped Dump Truck-2
Used Howo TX 6×4 U-shaped Dump Truck
Thinking About Going Sinotruk Truck?
Leave your contact information here, and we will contact you to set up a call or a meeting to discuss your needs and plans for electrifying your operation.
Trucks From
Related Trucks Back to list page
Used Sinotruk Howo-7 8×4 Tipper Truck
Used Sinotruk Howo-7 8×4 Tipper Truck

Model: ZZ3317V386GB1

Engine model: WD615.47, 371HP

Transmission: HW19710, 10F & 2R

Front Axle: VGD95, 9500 KGS

Price on request Learn More
Used china Howo TX 4×2 Tractor Truck
Used China Howo TX 4×2 Tractor Truck

Model: ZZ4187V361GF1

Engine model: WD615.47

Front Axle: VGD95, 1*9500 KGS

Rear Axle: MCP16ZG, 2*16000KGS

Price on request Learn More

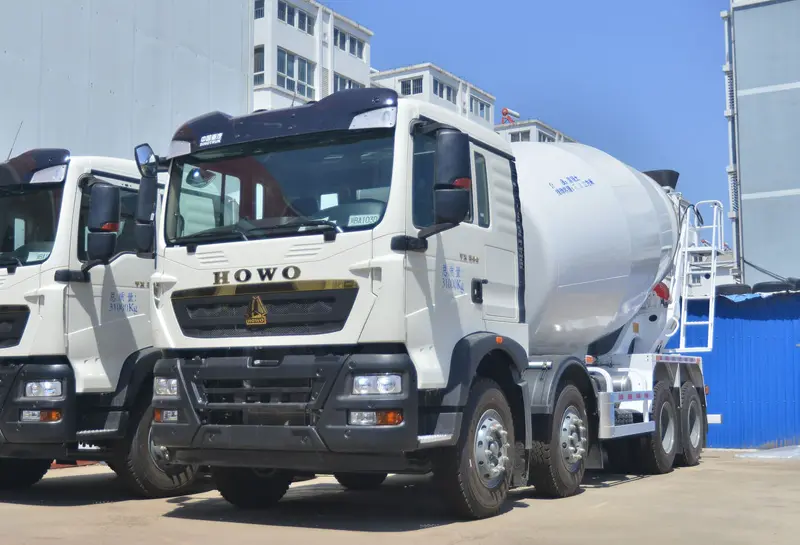

Used Sinotruk HOWO TX 8X4 Mixer Truck
