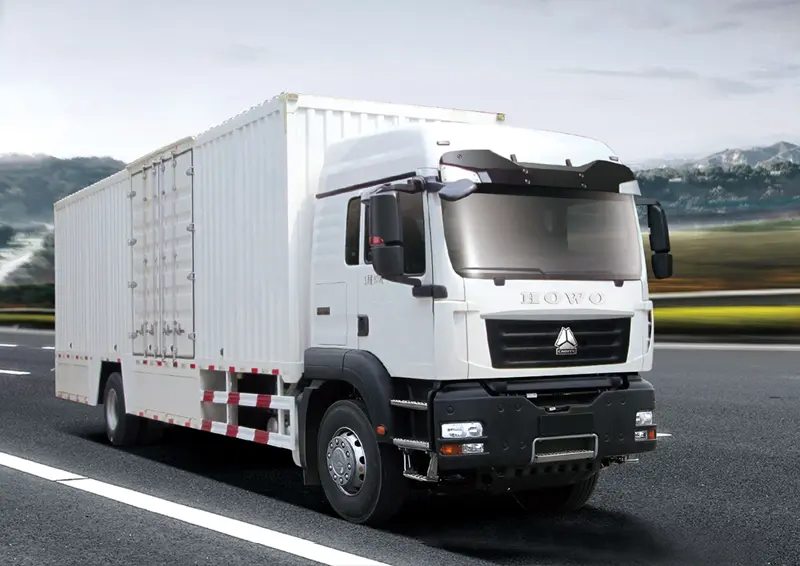

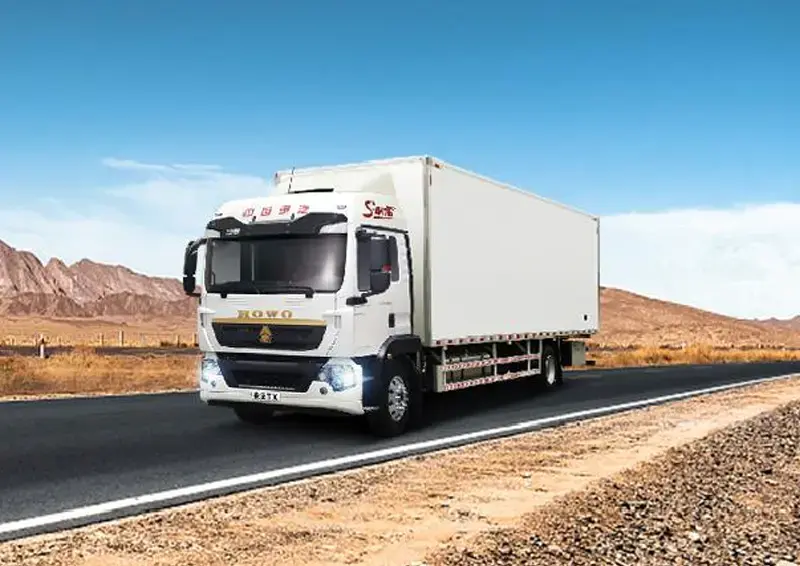

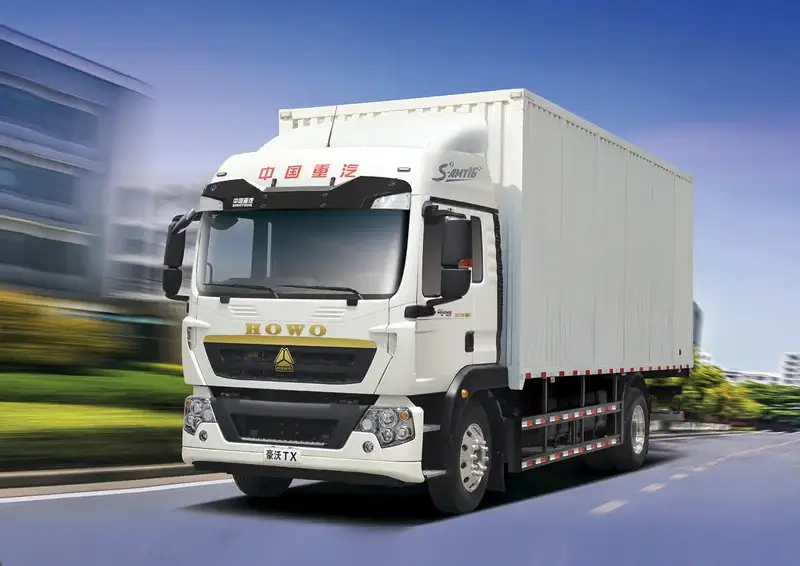

Sinotruck Howo TX 4×2 Box Cargo Truck

Model: ZZ1187N461GB1

Engine : WD615.87

Power : 300HP

Transmission: HW11710ACL

Max Speed : 89KM/h

Leave A Message

Overview
Function
Specifications
Gallery

Overview

The Sinotruk HOWO TX 4×2 Box Cargo Truck (often referred to as a Box Van or Dry Van) is a versatile, medium-duty commercial vehicle designed for urban and regional logistics. Built on MAN technology chassis components, it is widely used in courier services, cold chain logistics, and general cargo transportation.

Sinotruck Howo TX 4×2 Box Cargo Truck: Performance and Powertrain

Engine Range: Commonly powered by MC07 (MAN technology) or Weichai engines, with power outputs typically ranging from 280HP to 320HP. Some high-end configurations can reach up to 440HP.
Transmission: Usually equipped with a 9-speed or 10-speed manual transmission (such as the HW13709 series) featuring double countershaft designs for increased durability and smooth shifting.

Sinotruck Howo TX 4×2 Box Cargo Truck: Cargo Capacity and Body Design

Payload: The 4×2 configuration typically supports a rated load of 10 to 18 tons, depending on the specific chassis and body configuration.
Box Dimensions: The optional cargo box lengths for the TX series generally range from 6.2m to 9.3m.
Box Construction: For the “Box” version, the body is fully enclosed (Van type), often made of reinforced steel or lightweight composite materials to protect goods from weather and theft.

Sinotruck Howo TX 4×2 Box Cargo Truck: Cabin and Driver Comfort

Ergonomic Design: The TX cabin features a driver-centric layout with an adjustable, air-suspended seat that includes multi-directional electric adjustment and lumbar support.
Modern Amenities: Standard equipment often includes an LCD instrument panel, cruise control, a multifunctional steering wheel (with Bluetooth and multimedia controls), and automatic air conditioning.

Function

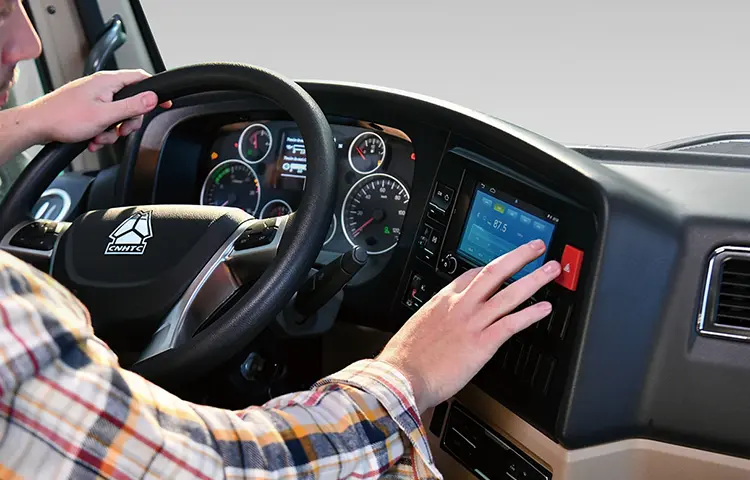

Excellent Ergonomic Design

All controls, instrument panels, and displays are intuitively arranged for easy access and quick information retrieval, minimizing distractions and maximizing driver focus. The pneumatically controlled steering wheel is fully adjustable for both height and angle.

Intuitive and User-Friendly Controls

Our clear and intuitive layout places functionally-related buttons and rotary switches together for direct, efficient, and error-free operation.

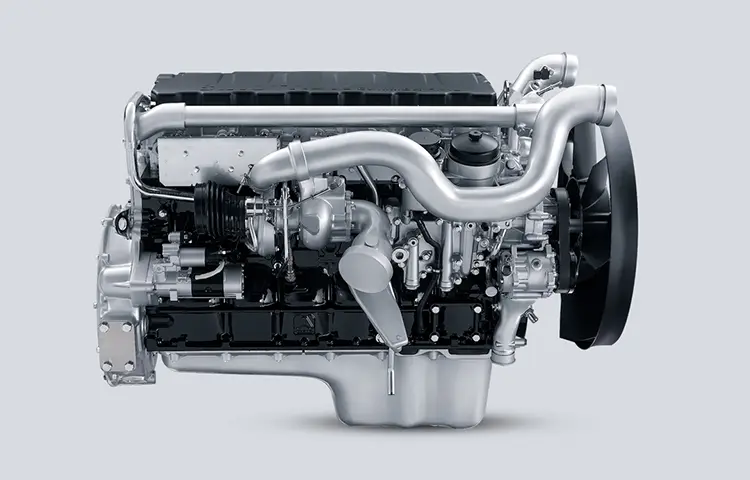

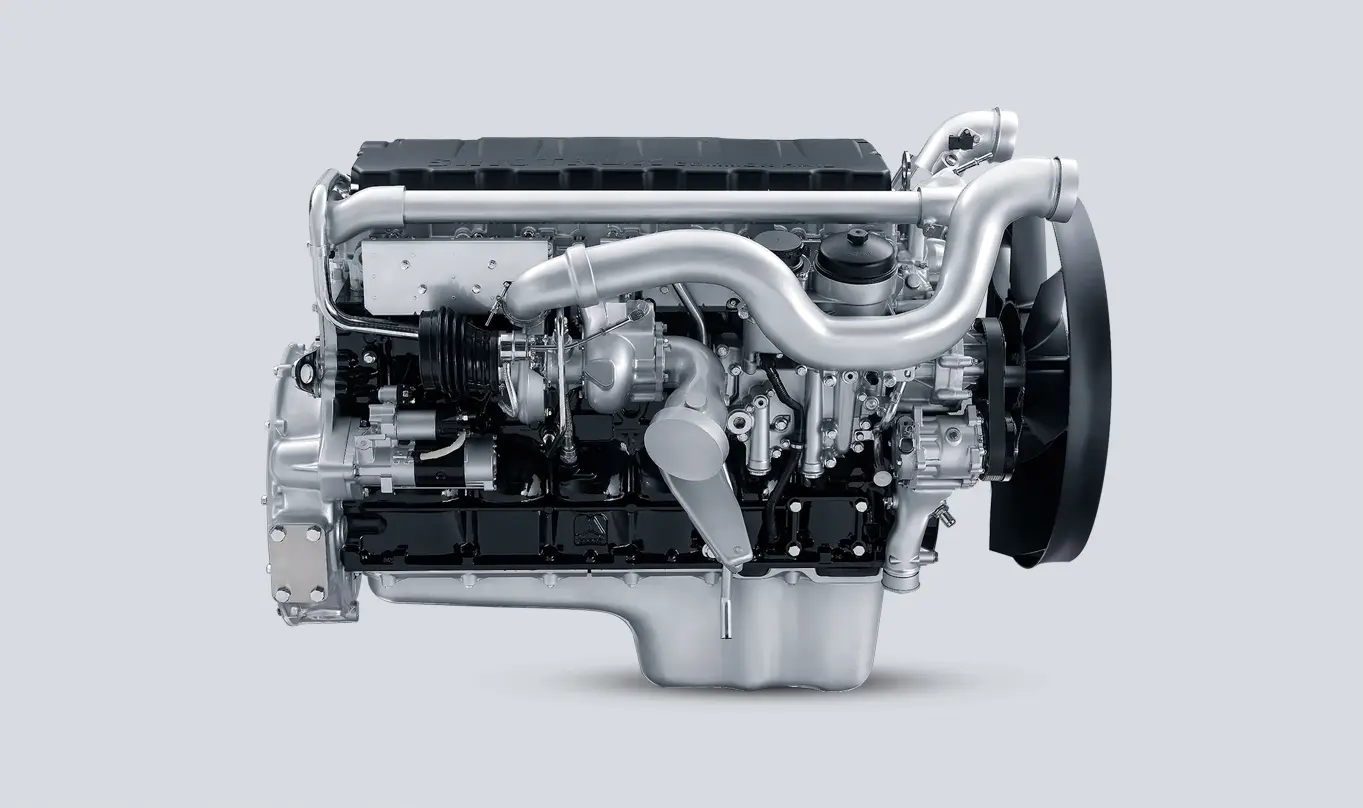

MC Series Engine – SINOTRUK's Exclusive High-End Power

Experience more power with less fuel: Employing the most advanced BOSCH high-pressure common rail system, the ECU precisely controls the fuel injection process according to the engine’s operating state, achieving a maximum injection pressure of 1600 bar to ensure superior fuel atomization, increased engine power, and reduced fuel consumption.

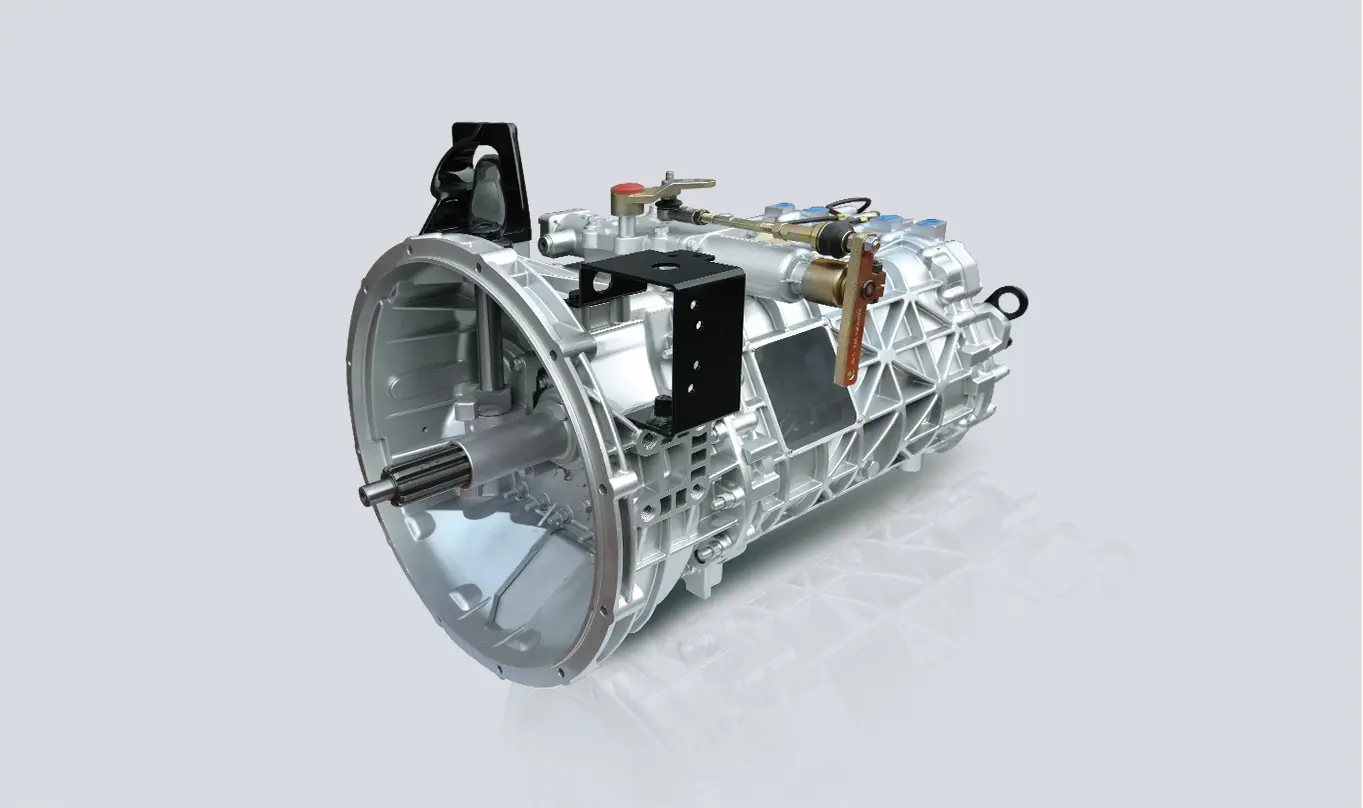

Transmission - Always in the Right Gear

The HW series transmission incorporates a globally advanced transmission design, employing a double countershaft main transmission coupled with a planetary gear auxiliary transmission. This results in simpler, more reliable, and more durable PTO and gear shifting operations.

Specifications

Sinotruck Howo TX 4×2 Box Cargo Truck
Production Year	New truck.
Cabin	TX -F cab, with one Sleeper and Air Conditioner(A/C)
Engine	Manual Injection Diesel 4-stroke direct injection diesel engine Engine model: WP10.300E22 , 300HP 6-cylinder in-line with water cooling, turbo-charging and inter-cooling Displacement: 9.726 L
Transmission	HW19710, 10 Fronts & 2 Reverses Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)
Steering	ZF8118, hydraulic steering with power assistance
Front Axle	VGD95, 9500 KGS
Rear Axle	MCX16ZG, 2×16000 KGS
Tires	12.00R20, radial tires with one spare tire
Fuel Tank	400L
Cargo Body	According to your needs.

Gallery

The HOWO-TX cab is designed with the driver in mind, prioritizing comfort and convenience to enhance both work and living conditions. Every detail reflects a deep understanding of their needs.
