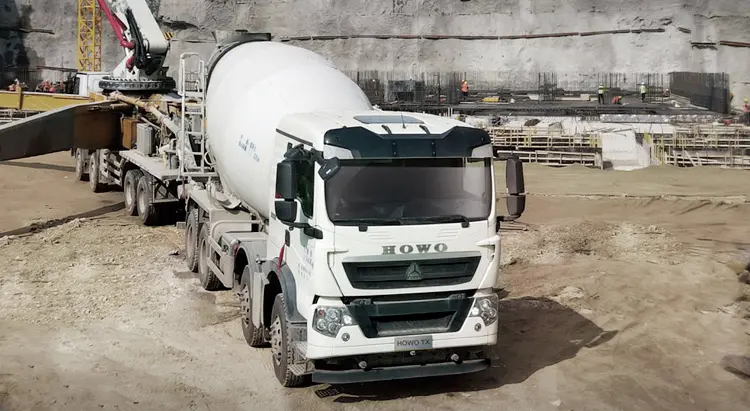

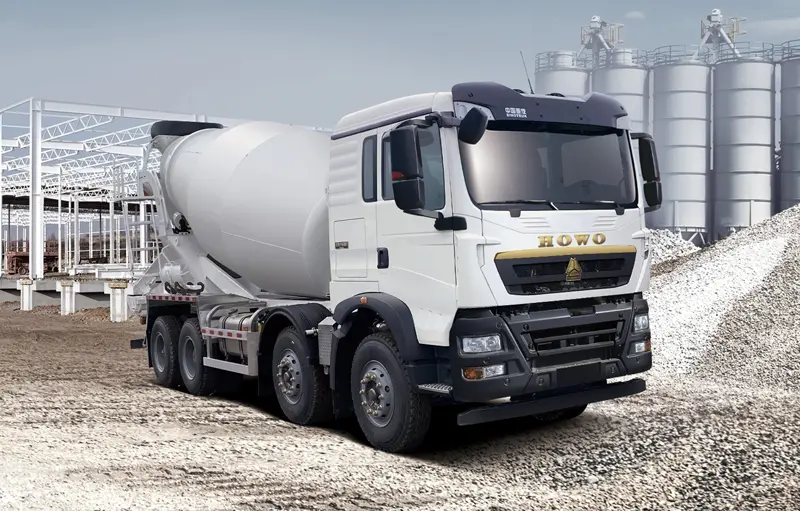

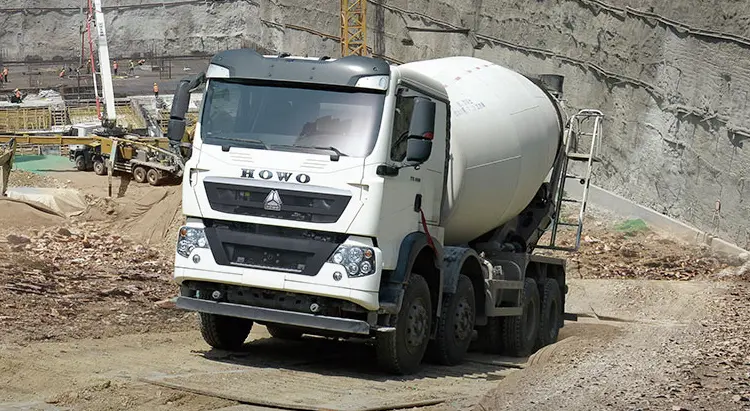

Sinotruk HOWO TX 8X4 Concrete Mixer Truck

Sinotruk HOWO TX 8X4 Concrete Mixer Truck: High-Performance Workhorse for Construction Sites

The Sinotruk HOWO TX 8X4 Concrete Mixer Truck is a robust, high-capacity vehicle engineered to handle the toughest concrete transportation tasks. Designed with advanced hydraulics, a durable chassis, and a driver-centric cabin, it delivers exceptional mixing performance, reliability, and operational efficiency—making it an ideal choice for large-scale construction projects, urban infrastructure development, and long-haul concrete delivery.

Sinotruk HOWO TX 8X4 Concrete Mixer Truck: Powerful Performance & Efficient Mixing

At the heart of the HOWO TX 8X4 is a combination of high-torque power and precision mixing technology:

Engine & Transmission: Powered by a Weichai WP8.340E51 Euro V emission engine, delivering 340 HP (250 kW) and 1400 Nm of torque at 1200-1700 rpm. Optional engines include WD615 series (371 HP, Euro II/III) for different emission standards. Paired with a 10JSD120T 10-speed manual transmission, it ensures smooth power transfer for heavy loads and steep terrain.

Mixing System: Equipped with a 12 m³ pear-shaped mixing drum made of high-strength steel, featuring optimized blade angles to prevent segregation and ensure consistent concrete quality. The drum is driven by a hydraulic system with variable piston pumps and motors, providing stable rotation speeds (0-14 rpm for mixing, 2-6 rpm for transportation).
Efficiency Features: The power take-off (PTO) system directly connects the engine to the mixing drum, minimizing energy loss. The water supply system includes a centrifugal pump and pressure tank for easy drum cleaning and concrete slump adjustment.

Sinotruk HOWO TX 8X4 Concrete Mixer Truck
Cabin	TX -F cab, with one sleeper and two seats, with Air Conditioner, 2-arm windscreen wiper system with three speeds, damped adjustable driver’s seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, with transverse stabilizer,with 4-point support fully floating suspension + shock absorber.
Engine	Diesel 4-stroke direct injection diesel engine Engine model:WD615.47, 371HP 6-cylinder in-line with water cooling, turbo-charging and intercooling
Transmission	HW19710, 10F & 2R Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)
Steering	ZF power steering, model ZF8118, hydraulic steering with power assistance
Front Axle	VGD95, 1×9500 KGS Steering with double T-cross section beam
Rear Axle	MCX16ZG, 2×16000 KGS Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles.
Chassis	Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross members Front suspension:9semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer
Brake	Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake
Electrics	Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Tires	12.00R20, Radial (steel wire) Tires. 10+1 Pics.
Mixer Body	Tank Body: it can as your requirements
Fuel Tank	400L
Overall Dimension	900025503950 mm

Whether you’re transporting concrete to high-rise construction sites, road infrastructure projects, or remote locations, the Sinotruk HOWO TX 8X4 Concrete Mixer Truck delivers the performance, reliability, and efficiency needed to keep your operations running smoothly.
