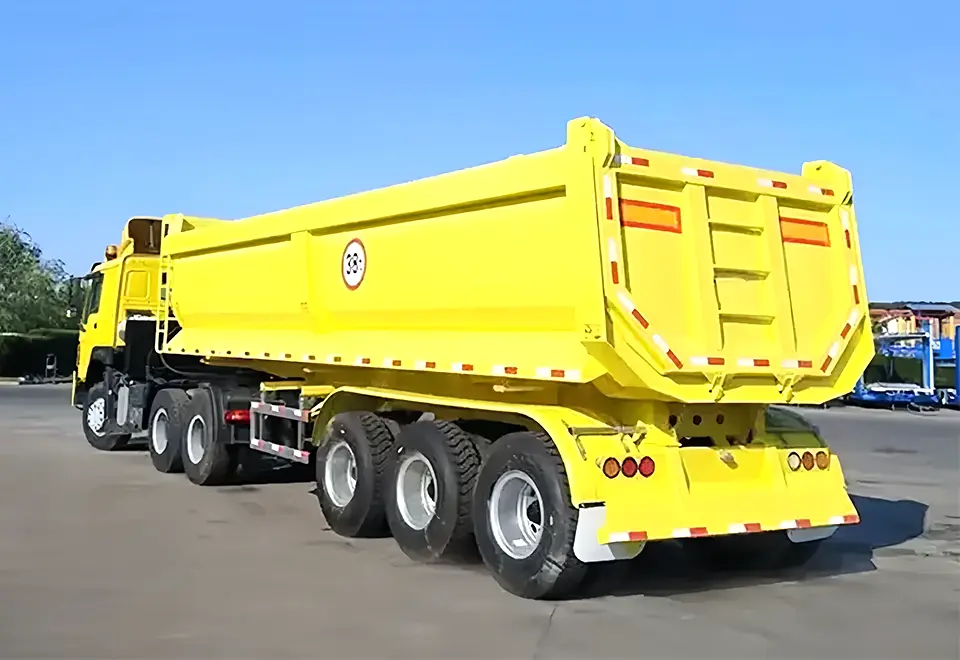

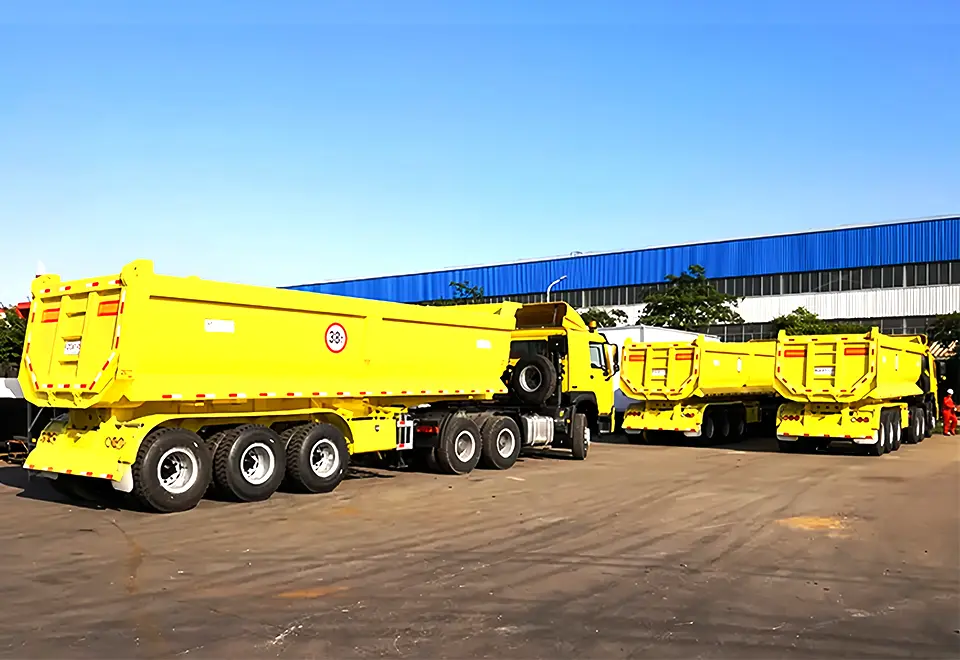

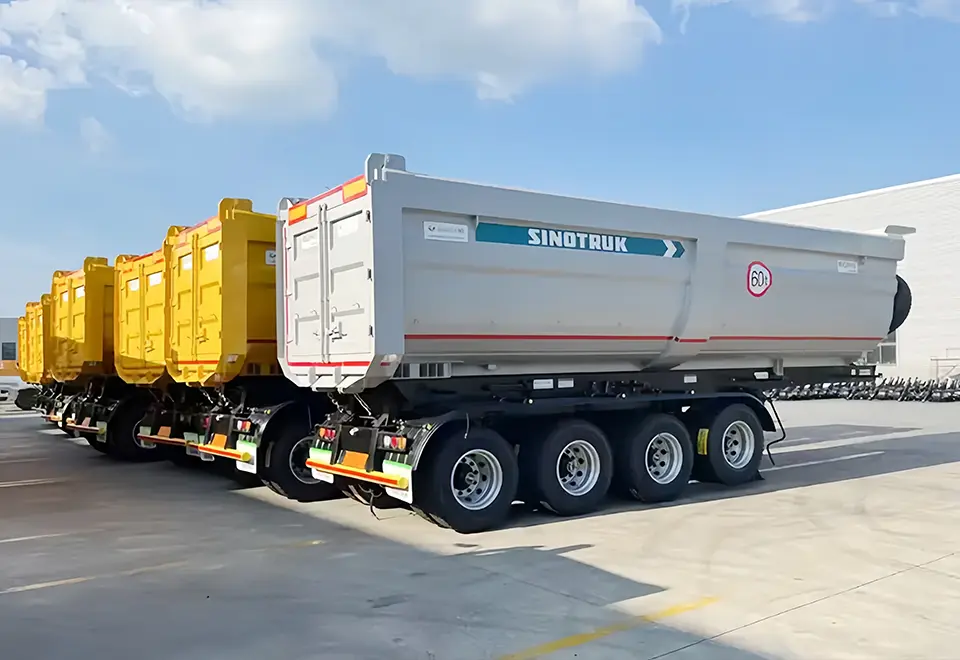

Sinotruck Howo Tipper Semi Trailer

Sinotruk Howo Tipper Semi Trailer: Heavy-Duty Dump Solution for Construction and Mining

The Sinotruk Howo Tipper Semi Trailer is a rugged and high-performance heavy-duty transportation solution designed to work seamlessly with SINOTRUK’s Howo truck models. Manufactured by top-tier Chinese manufacturers, these semi trailers are engineered to efficiently transport and unload bulk materials such as sand, gravel, coal, and ore, meeting the rigorous demands of construction, mining, and infrastructure projects worldwide.

Performance Features

Robust Construction: Built with high-quality steel and automatic submerged-arc welding processes for exceptional durability and load-bearing capacity
Efficient Dumping: Hydraulic lifting system enables quick and controlled dumping of bulk materials in various positions
Multi-Load Options: Available with different dump body volumes and configurations to suit diverse material transport needs
Customization Options: Tailorable dimensions, materials, and features to meet specific operational requirements and regional regulations
Advanced Safety Features: Equipped with reliable braking systems, emergency stop valves, and reflective markings for safe transport and operation

Applications

Construction Material Transport: Ideal for transporting sand, gravel, and concrete to construction sites
Mining Operations: Suitable for transporting coal, ore, and other minerals from mining sites to processing facilities
Infrastructure Projects: Supports large-scale infrastructure development by efficiently transporting construction materials
Logistics Services: Versatile enough to handle bulk material transportation needs for logistics companies and distribution centers

Why Choose Sinotruk Howo Tipper Semi Trailer?

Proven Durability: Built with high-strength steel and advanced manufacturing processes to withstand extreme loads and harsh operating conditions
High Capacity: Up to 70-ton maximum loading capacity ensures efficient transport of heavy bulk materials
Cost-Effective: Competitive pricing with low maintenance costs compared to international brands
Global Support: Backed by SINOTRUK’s extensive international service network and readily available spare parts
Customization Expertise: Ability to tailor trailer configurations to specific industry needs and regional regulatory requirements

SINOTRUK HOWO TIPPER SEMI TRAILER
Main Chassis Material	Made of high quality and high strength Q345 steel, ;made of two welded long itudinal beams in I form with cross beams at needed distances (Optional special T700 steel for light weight design)
Body Material	Body is made of Q345/NM450 materials for maximum abrasiveness and impact resistance. (Optional special Hardox® 450 and Hardox® 500 Tuf steel for light weight design)
Tail Gate	Mechanical open, lengthwise, top-hinged (Optional hydraulic)
Volume	30 m3 (Optional design with any volume)
Semi Trailer Axle Specification
Number of Axles	3 axles
Axle Brake Type	Drum brake type (Optional disc brake type)
Each Axles Capacity	13 tons capacity (Optional up to 20 tons)
Each Sequence Twin/Single Wheel	Single wheel (Depends on tire dimension)
Number of Steered Axles and Position	Optional other options
Semi Trailer Suspension Equipment
Suspension Type	Air suspension and equipment’s (Optional any type)
Suspension Bellows and Type	818 Type suspension bellows
Springs and Type	Parabolic double decked Z spring or other types
Shock Absorbers	Standard shock absorbers equipment
Trailer Tires & Rims Specifications
Tire Dimensions	385/65 R 22.5 (Optional any compatible size)
Rim Dimensions	22.5X11.75 steel rims with standard tire dimension
Total Tire & Rim Unit	With 385/65 R 22.5 option, totally 12 units (for 24m3)
Other Compatible Tire Sizes	12 R 22.5 (Double tire size optional)
Semi Trailer Brake System
Air Line	Standard Dual circuit brake hardware
Brake System	EBS (Optional 4S/3M or 4S/4M) WABCO or KNORR brand (Optional only ABS System)
Brake Slack Adjusters	Automatic type
Semi Trailer Electrical Equipment
Electrical Input Voltage	Standard 24V
Socket Type	Standard 7 (optional 15 pins) NATO type or any type distribution cable
Ex-Proof Compatibility	Available as optional
Lighting Functions	Brake, signal, stop, reversing and fog lights, side lights, reversing lights, license plate lights
Semi Trailer Hydraulic Equipment
Hydraulic System	Five stages heavy duty cold-drawn telescopic cylinder
Hydraulic Oil Tank	Available as optional (Optionally oil tank has 70lt capacity or at the desired capacity. On the tank there are, 125″ suction filter, and 25″ return filter with ventilation, level indicator, special valve, and releasing tap)
Other Standard Equipment
King Pin	50#/90#
Landing Legs	Dynamic 24 ton, static 50 tons capacity, one side controlled
Lockable Cabinets	1-2 units
Spare Tire Holder	1-2 units
Operate the shining vest	1-2 units
Water Tank	1 water tank with soap dispenser
Mudguards	3 sets of half mudguard
