Sinotruk Howo NX 6X4 Concrete Mixer Truck

Sinotruk HOWO NX 6×4 Concrete Mixer Truck: Precision, Power, and Profitability for Modern Construction

The Sinotruk HOWO NX 6×4 Concrete Mixer Truck is a next-generation heavy-duty vehicle engineered to set new standards in concrete transportation. Built with advanced mixing technology, a rugged chassis, and a driver-centric design, it delivers consistent concrete quality, exceptional fuel efficiency, and low operational costs—making it the ideal choice for urban infrastructure projects, commercial construction, and long-haul delivery operations.

Sinotruk HOWO NX 6×4 Concrete Mixer Truck: Advanced Mixing System for Consistent Concrete Quality

At the core of the HOWO NX is a state-of-the-art mixing system designed to preserve concrete integrity from batching plant to construction site:

High-Capacity Mixing Drum: Available in 10 m³, 12 m³, and 14 m³ capacities, the drum is fabricated from wear-resistant high-strength steel with a pear-shaped design and optimized spiral blade angles. This ensures thorough mixing, prevents segregation, and maintains uniform concrete slump even during long-distance transport.

Hydraulic Drivetrain: Powered by a German REXROTH hydraulic pump and motor, the drum offers smooth, variable rotation speeds (0-14 rpm for mixing, 2-6 rpm for transit). The system’s closed-loop design minimizes energy loss, reducing fuel consumption by up to 10% compared to conventional open-loop systems.
Convenience Features: A built-in water tank with a centrifugal pump enables on-the-fly slump adjustment and quick drum cleaning. Optional sensors monitor drum rotation speed, concrete temperature, and water level, providing real-time data to the driver for precision control.

Why Choose the Sinotruk HOWO NX 6×4 Concrete Mixer Truck?

Consistent Concrete Quality: Advanced mixing system prevents segregation and maintains slump during transit.
Powerful & Efficient: High-torque engine and optimized drivetrain deliver exceptional performance with low fuel consumption.
Durable & Reliable: Rugged chassis and wear-resistant components ensure long service life in harsh conditions.

Sinotruk Howo NX 6X4 Concrete Mixer Truck

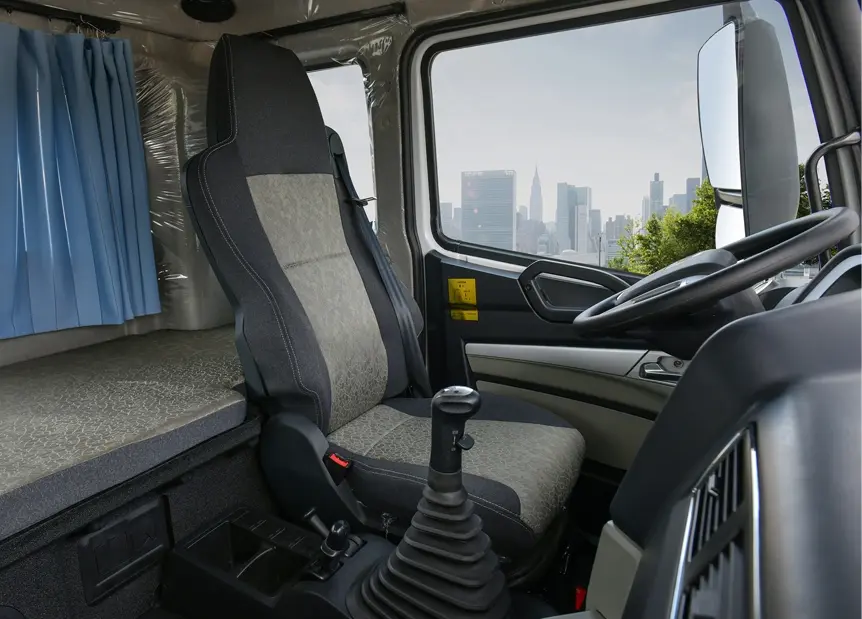

Cabin	H77L cab, with one sleeper and two seats, with Air Conditioner, 2-arm windscreen wiper system with three speeds, damped adjustable driver’s seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, with transverse stabilizer,with 4-point support fully floating suspension + shock absorber.
Engine	Diesel 4-stroke direct injection diesel engine Engine model:WP10.380E22，380HP 6-cylinder in-line with water cooling, turbo-charging and intercooling
Transmission	HW19710, 10F & 2R Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)
Steering	ZF power steering, model ZF8118, hydraulic steering with power assistance
Front Axle	VGD95, 1×9500 KGS Steering with double T-cross section beam
Rear Axle	MCX16ZG, 2×16000 KGS Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles.
Chassis	Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross members Front suspension:9semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer
Brake	Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake
Electrics	Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Tires	12.00R20, Radial (steel wire) Tires. 10+1 Pics.
Mixer Body	Tank Body: it can as your requirements
Fuel Tank	400L
Overall Dimension	900025503950 mm

The HOWO-NX series is designed with an ultra-high cost-performance ratio, delivering exceptional comfort, reliability, and profitability beyond your expectations.
