Sinotruk Howo NX 6x4 Box Cargo Truck

Model: ZZ5257XXYV464KF1

Engine model: WP10.400E53

Horsepower: 400HP

Transmission : Sinotruk HW19710

Gross vehicle weight: 25,000 kg

Leave A Message

Overview
Function
Specifications
Gallery

Overview

Sinotruk Howo NX 6×4 Box Cargo Truck: Versatile and Reliable for Efficient Goods Transportation

The Sinotruk Howo NX 6×4 Box Cargo Truck is a robust and versatile heavy-duty vehicle designed for efficient transportation of goods in urban, intercity, and rural areas. Built with advanced technology and reinforced construction, this truck combines exceptional payload capacity, durability, and fuel efficiency, making it an ideal choice for logistics companies, construction firms, and freight operators.

Sinotruk Howo NX 6×4 Box Cargo Truck: Powerful and Efficient Performance

The Howo NX 6×4 Box Cargo Truck is equipped with a Sinotruk WD615.47 engine, delivering an impressive 371 horsepower and high torque, ensuring reliable performance even under full load. Paired with a HW19710 manual transmission (10 forward gears, 2 reverse gears), the truck provides smooth gear shifts and optimal power distribution for various road conditions. Its 6×4 drive configuration, featuring a VGD71 front axle and MCY12 rear axle (based on German technology), delivers exceptional traction and stability, making it suitable for challenging terrains. With a maximum speed of up to 90 km/h, the NX ensures efficient and timely deliveries.

Sinotruk Howo NX 6×4 Box Cargo Truck: Durable and Robust Construction

Constructed with a high-strength frame (based on German technology) and a reinforced suspension system, the Howo NX 6×4 Box Cargo Truck is built to withstand heavy loads and harsh operating conditions. With a gross vehicle weight of 30,000 kg, it offers a substantial payload capacity of up to 22,000 kg for efficient cargo transportation. The truck is fitted with 12.00R20 mining area block pattern tires or 315/80R22.5 tubeless tires, providing excellent durability and grip on various road surfaces. Its strengthened frame and thickened suspension further reduce maintenance costs and extend vehicle longevity, ensuring a low total cost of ownership.

Sinotruk Howo NX 6×4 Box Cargo Truck: Customization and After-Sales Support

The Howo NX 6×4 Box Cargo Truck offers flexible customization options to meet specific operational needs, including adjustable wheelbase, different engine power outputs, and optional features such as a hydraulic lift gate or side panels. Sinotruk provides comprehensive after-sales service, including a two-year warranty (or 100,000 km, whichever comes first) for engine, gearbox, and axles, lifelong technical support, and a global network of service centers. The company’s overseas engineers are available for on-site training and technical assistance, ensuring optimal performance and reliability for customers worldwide.

Function

Sinotruck Howo NX Engine

Utilizing MC, WD, and WP series powertrains, the vehicle offers high torque at low speeds and strong power. Parts are highly interchangeable within the same engine series, leading to low maintenance costs and easy repairs.

Sinotruck Howo NX Transmission

The HW series transmission incorporates a globally advanced transmission design, employing a double countershaft main transmission coupled with a planetary gear auxiliary transmission. This results in simpler, more reliable, and more durable PTO and gear shifting operations.

Sinotruck Howo NX Four-Point Air Suspension

The four-point air suspension provides excellent stability, shock absorption, and comfort, and features a cabin rearward displacement function during collisions, ensuring passenger safety.

Sinotruck Howo NX Chassis

The NX series tractor features an extended two-leaf front spring design, with redesigned suspension stiffness for better performance. The rear suspension adopts a four-leaf main and auxiliary spring structure, optimizing the vehicle’s suspension frequency under both loaded and unloaded conditions, preventing resonance, and improving overall comfort. The front two-leaf and rear four-leaf steel spring suspension system meets lightweight vehicle requirements, reducing overall weight by more than 70 kg.

Specifications

Category	Details
Model	ZZ5257XXYV464KF1
Truck Name	Sinotruk Howo NX 6×4 Box Cargo Truck
Drive Type	6×4
Engine	– Model: WP10.400E53 – Power: 400 HP – Displacement: 9.726 L – Emission Standard: Euro V / Euro VI
Transmission	– Model: HW19710 – Type: Manual – Gears: 10 forward, 2 reverse
Axles	– Front axle: HF9 (9t loading capacity) – Rear axle: HC16 (16t loading capacity)
Box Dimensions	– External: 8500mm x 2550mm x 3950mm – Internal: 8300mm x 2450mm x 3800mm
Weight	– Curb weight: 12,500 kg – Gross vehicle weight: 25,000 kg – Max payload capacity: 12,270 kg
Tires	12.00R20 (10 pieces) mining area block pattern tires / 12R22.5 tubeless tires
Fuel Tank	300L / 400L optional
Braking	WABCO ABS system with drum brakes
Frame	High-strength double-layer frame (300x80x8+5 mm)
Cab	– H77L Cab with 1 sleeper – Air conditioning, air suspension seat – Central door lock, electric window lifter, power mirror
Electrical System	24V, CAN bus intellectual electronic control system
Steering	Hydraulic power steering system

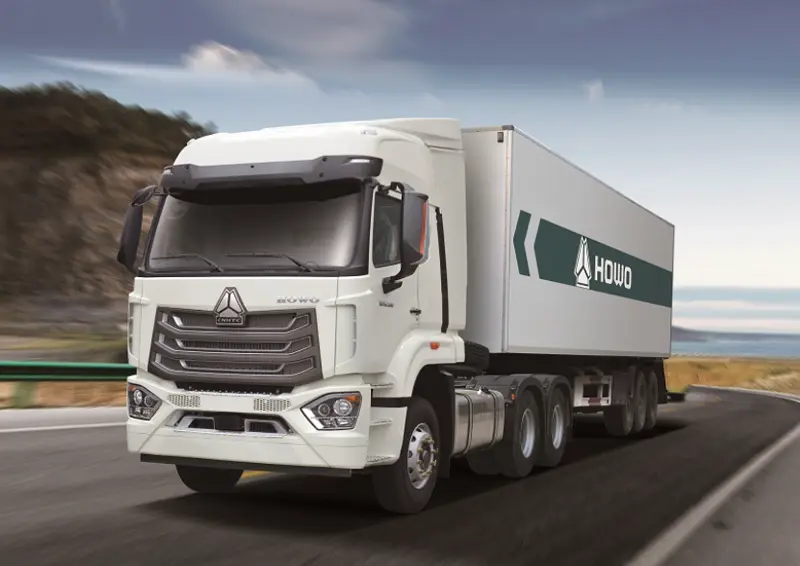

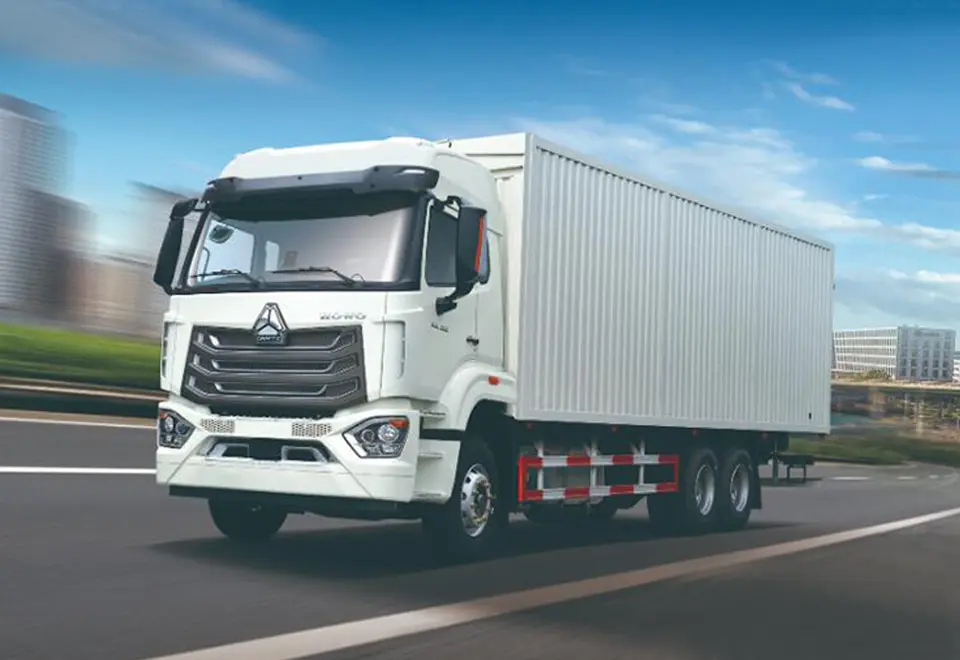

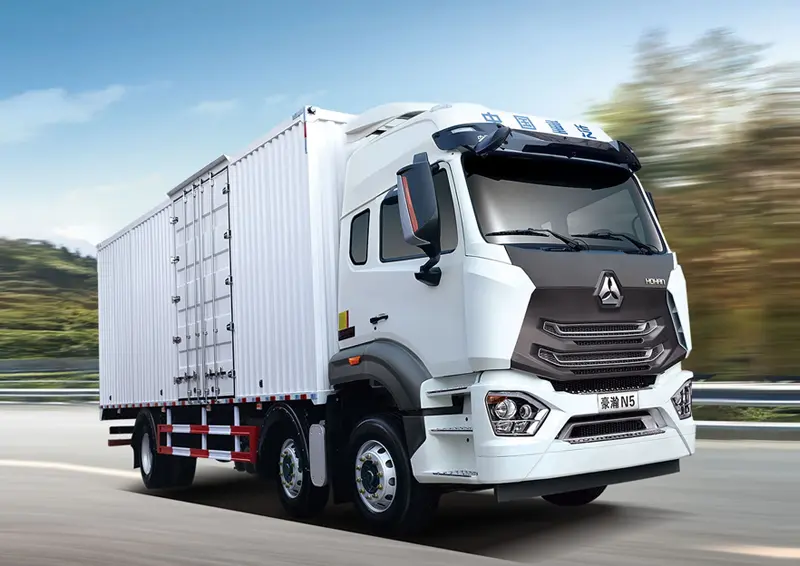

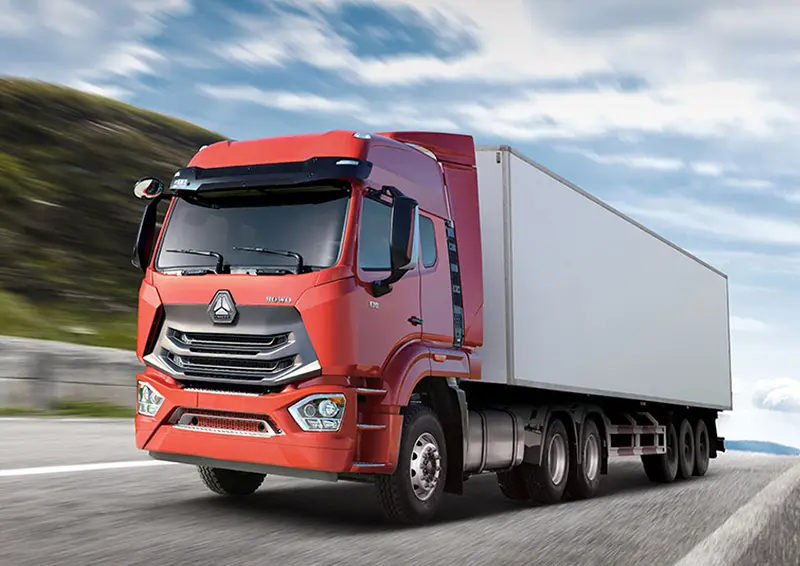

Gallery

Super Cost-Effective HOWO-NX

The HOWO-NX series is designed with an ultra-high cost-performance ratio, delivering exceptional comfort, reliability, and profitability beyond your expectations.
