Sinotruk Howo Box Cargo Truck

Model: ZZ1047D3415C1

Engine model: YN4100QBZL

Engine power: 116HP

Maximum speed: 95 km/h

Fuel Tank : 220L

Leave A Message

Overview
Specifications
Gallery

Overview

Sinotruk Howo 4×2 Light Box Cargo Truck: Secure, Efficient, and Built for Urban Logistics

The Sinotruk Howo 4×2 Light Box Cargo Truck is a specialized, enclosed-transport vehicle engineered to solve the unique challenges of urban and regional freight delivery. Designed to protect fragile, valuable, or weather-sensitive cargo while navigating tight city streets, it combines a lockable, weatherproof box body with agile handling and fuel-efficient performance—making it the top choice for e-commerce fulfillment, retail distribution, and last-mile delivery services.

Sinotruk Howo Box Cargo Truck: Reinforced, Weatherproof Box Body

At the core of this truck’s design is a durable, purpose-built box cargo body crafted to safeguard your goods through any conditions:

Construction: Made from high-quality steel or lightweight aluminum panels with reinforced corners, the box features a weatherproof seal along all doors and edges to prevent water, dust, and debris from entering. Inner dimensions range from 4200×2100×2100mm to 6800×2300×2500mm, offering customizable capacity for loads up to 10 tons.

Accessibility: Options include dual rear swing doors (opening up to 180° for forklift access), sliding side doors for curb-side loading, and a low entry height for manual handling. For perishable goods, a refrigerated box variant with temperature control (-20°C to +10°C) is available, complete with insulated panels and an independent cooling unit.
Security Features: Standard lock systems, reinforced door hinges, and optional alarm systems protect valuable cargo during transit and overnight stops. The box can also be fitted with tracking devices to monitor location in real time.

Sinotruk Howo 4×2 Light Box Cargo Truck: Agile Maneuverability for Urban Environments

Built to thrive in tight spaces, the Howo 4×2 Light Box Cargo Truck combines compact dimensions with responsive performance:

Compact Footprint: With an overall length as short as 5995mm and a minimum turning radius of 8.5m, it easily navigates narrow city streets, crowded loading docks, and residential neighborhoods.
Efficient Powertrain: Powered by a CUMMINS ISF3.8 (154 HP) or YC4E140 (140 HP) diesel engine, paired with a 6-speed manual transmission, it delivers smooth acceleration for stop-and-go traffic while maintaining fuel efficiency of up to 12L/100km.

Specifications

MODEL	ZZ1047D3414C145
ENGINE	Manufacturer: YUNEI
	Diesel:4-strote direct injection diesel engine
	Engine model: YN4100QBZL engine, Euro II emission standard, water-cooled, four strokes, 4 cylinders in line with water cooling. Turbocharged and intercooling, directly injection
	Max output:110HP(81kw)
	Displacement:3.298L
CLUTCH	Φ300 diaphragm single-plate dry coil-spring clutch.
TRANSIMISSION	Model: WLY6T100, 6forward & 1reverse
FRONT AXLE	2.4T Forging I beam
REAR AXLE	4.2T Pressed welding axle housing
STEERING	Left hand driving
BRAKING SYSTEM	service brake: dual circuit compressed air brake Parking brake(emergency brake):spring energy, compressed air operating on rear wheels
TIRES	7.00R16 Radial Tire with one spare tire.
CAB	1880 one and half row cabin, with A/C
ELECTRICAL SYSTEM	Operating voltage: 24V, negative grounded Starter: 6 kW Alternator: 28V, 55A batteries: 2 x 12V, 120 Ah
INSTRUMENT PANEL	Active check control with indicators, with this instrument the daily manual checks on the vehicles and combined indicators of compressed pressure, coolant temperature, engine oil pressure and battery charging
DIMENSION IN (MM)	Wheel base	3360
	Front/ Rear wheel track	1605/1520
	Front/ Rear overhang	1160/1475
	Approach/ Departure angle(°)	20/18
	Dimension(Lx W x H)（unloaded）	6995×2100*2650

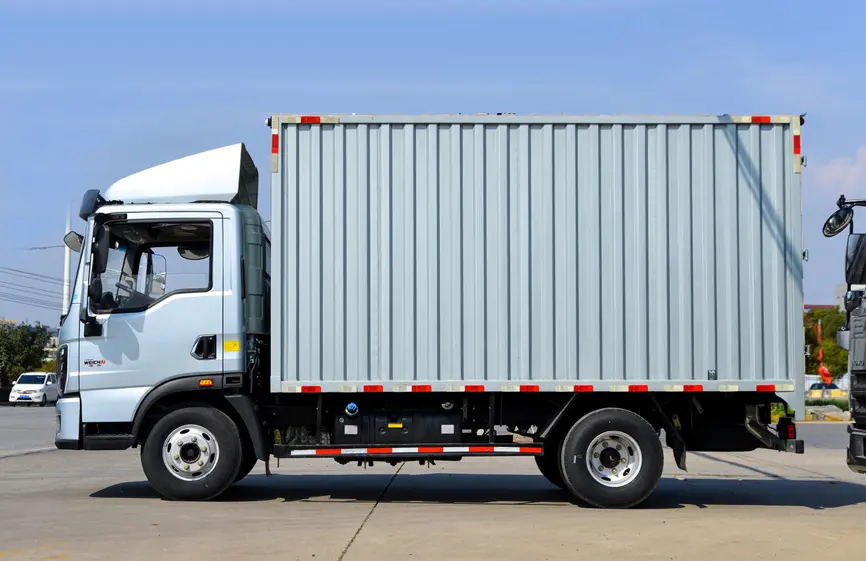

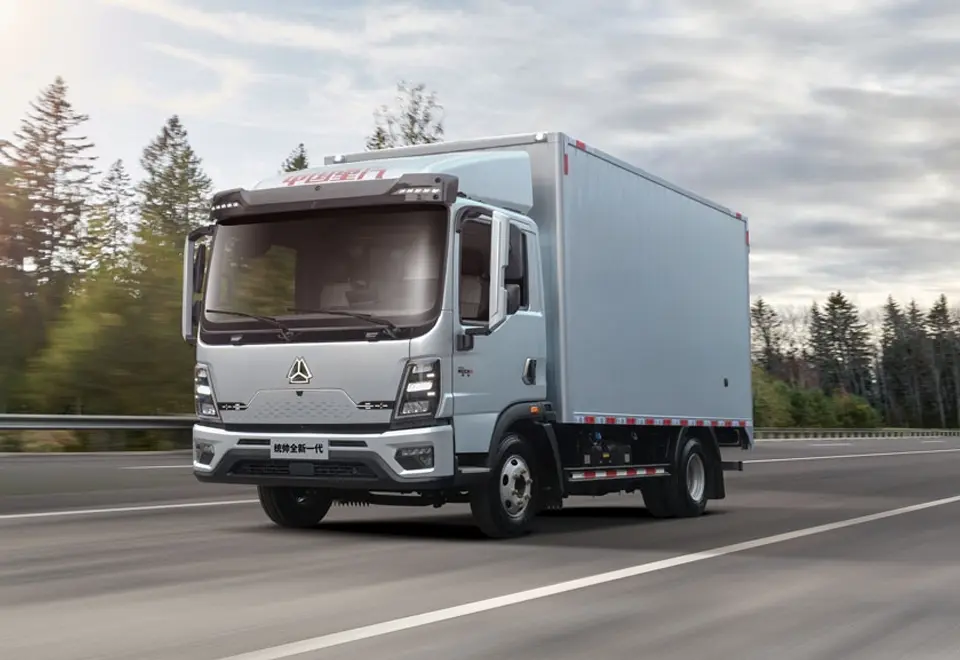

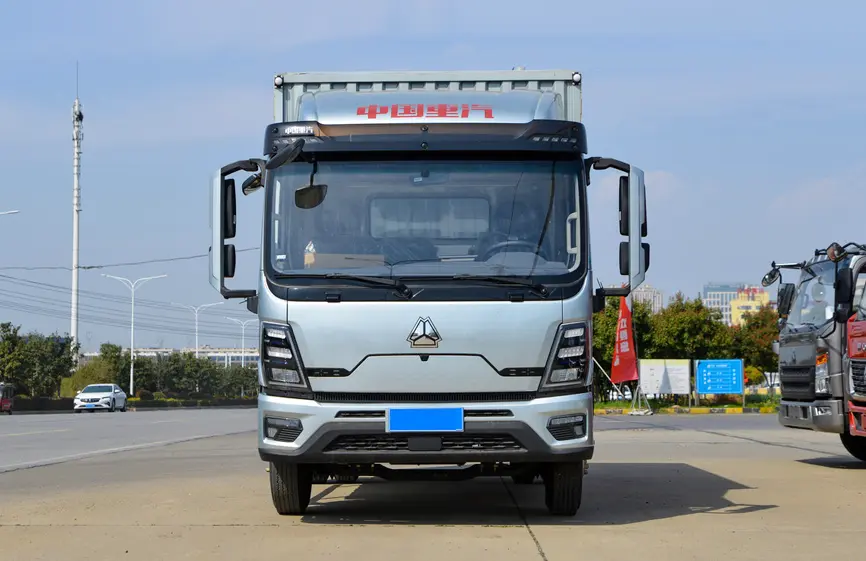

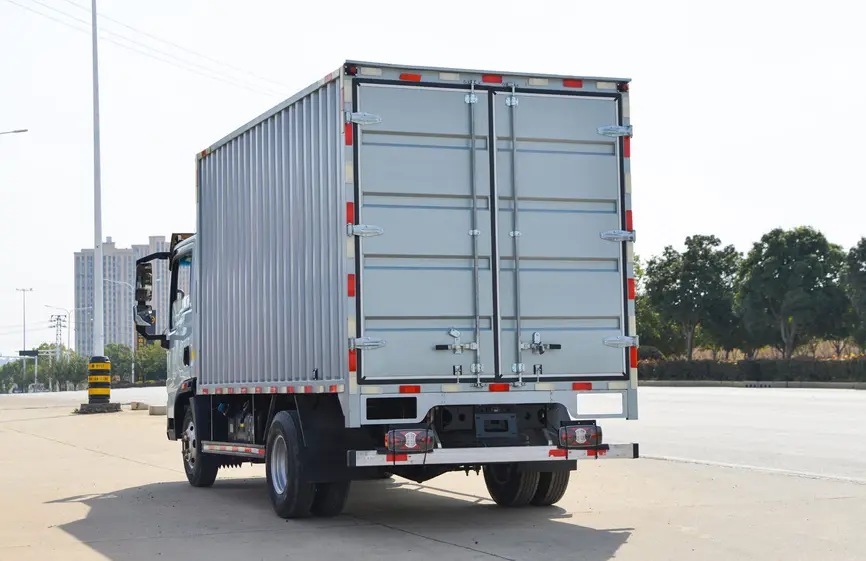

Gallery

Whether it’s the fast delivery of e-commerce packages, timely restocking of supermarket goods, or high-precision cold chain transportation, the HOWO light truck is up to the task.Its powerful engine enables smooth navigation through busy streets and complex urban road conditions.
