Sinotruk Howo 7 6x4 Tractor Truck

Model: ZZ4257V3247B1R

Engine model: WEICHAI

Horsepower: 371/380/400/430

Rear Axle: MCP16ZG, 2*16000KGS

Transmission: HW19710

Leave A Message

Overview
Function
Specifications
Gallery

Overview

Sinotruk Howo 7 6×4 Tractor Truck: A Reliable Workhorse for Heavy-Duty Transportation

The Sinotruk Howo 7 6×4 Tractor Truck is a heavy-duty commercial vehicle engineered to meet the demanding needs of long-haul logistics, construction, and industrial applications. Built by SINOTRUK, a leading Chinese manufacturer of commercial vehicles, this tractor truck combines robust performance, durability, and advanced features to deliver exceptional value for businesses worldwide.

Powerful Engine: Equipped with a Weichai WD615 diesel engine, the Howo 7 delivers reliable power and torque for heavy-duty operations, ensuring efficient performance even in challenging terrain.
Robust Chassis: The 6×4 drive configuration provides excellent traction and stability, making it suitable for various road conditions and heavy load transportation.
Comfortable Cabin: Spacious and ergonomic cabin design with advanced features to enhance driver comfort during long journeys, including air conditioning, adjustable seats, and modern instrumentation.

Configuration: 6×4 (three axles, four driving wheels)
Horsepower Range: 371HP – 420HP (Weichai WD615 series diesel engine)
Transmission: HW19710 10-speed manual gearbox
Maximum Traction Capacity: 41-50 tons
Cabin: HW76/HW79 comfortable cabin with left-hand drive
Tire Options: 12.00R20, 295/80R22.5, 315/80R22.5 tubeless tires
Emission Standards: Euro 2/Euro 3 compliant

Function

Engine

Utilizing WD615/D10 series and WP10/WP12 series powertrains, the vehicle offers high torque at low speeds and strong power. Parts are highly interchangeable within the same engine series, leading to low maintenance costs and easy repairs. Horsepower range covers 266-430Ps, and emissions cover Euro 2-Euro 5.

Transmission

Utilizing HW series 10-speed/12-speed transmissions, the transmission adopts a main and auxiliary box structure, the main box is a double countershaft structure, and the auxiliary box is a planetary reduction structure, with strong bearing capacity and reliable structure; Combining forced lubrication and gear splash lubrication, this system provides more thorough lubrication and is suitable for various road conditions.

Specifications

SINOTRUK HOWO 7 6X4 TRACTOR TRUCK
Production Year	new truck.
Cabin	HW76 cab. with one sleeper and two seats, with Air Conditioner, 2-arm windscreen wiper system with three speeds, damped adjustable driver’s seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, with transverse stabilizer,with 4-point support fully floating suspension + shock absorber. High Position Steel Bumper
Engine	Diesel 4-stroke direct injection diesel engine Engine model: WP12.430E201, 430HP； WD615.47, 371HP； WP10.380E22 ,380HP； WP12S400E201/WP12.400E201 ,400HP； 6-cylinder in-line with water cooling, turbo-charging and intercooling
Transmission	HW19710, 10F & 2R. Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)
Steering	ZF power steering, model ZF8118, hydraulic steering with power assistance
Front Axle	VGD95, 1*9500 KGS Steering with double T-cross section beam
Rear Axle	MCP16ZG, 2*16000KGS Pressed axle housing, central Single reduction with hub reduction and with differential locks between wheels and axles.
Propeller Shaft	Double universal joint propeller shaft with gear-shaped coupling flange
Chassis	Front suspension: 10 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension: 12 leaf semi-elliptic springs, bogie spring and stabilizer
Brake	Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake

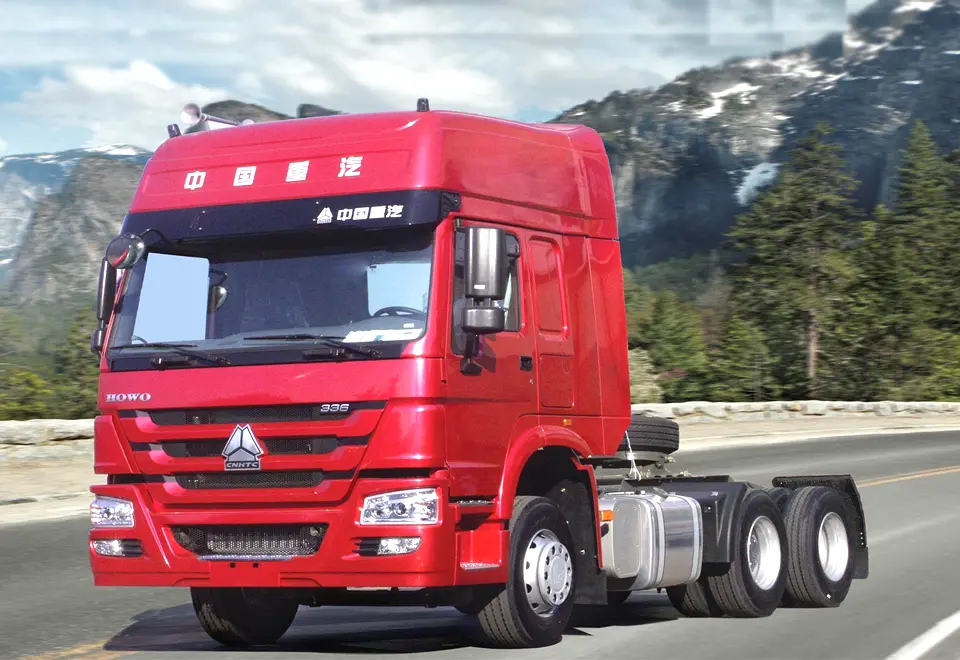

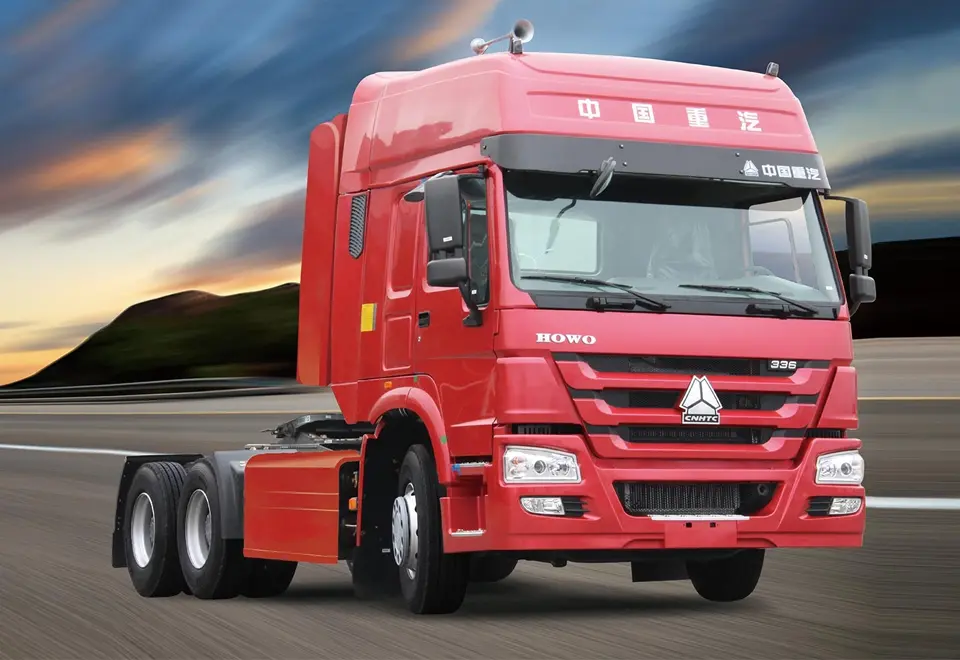

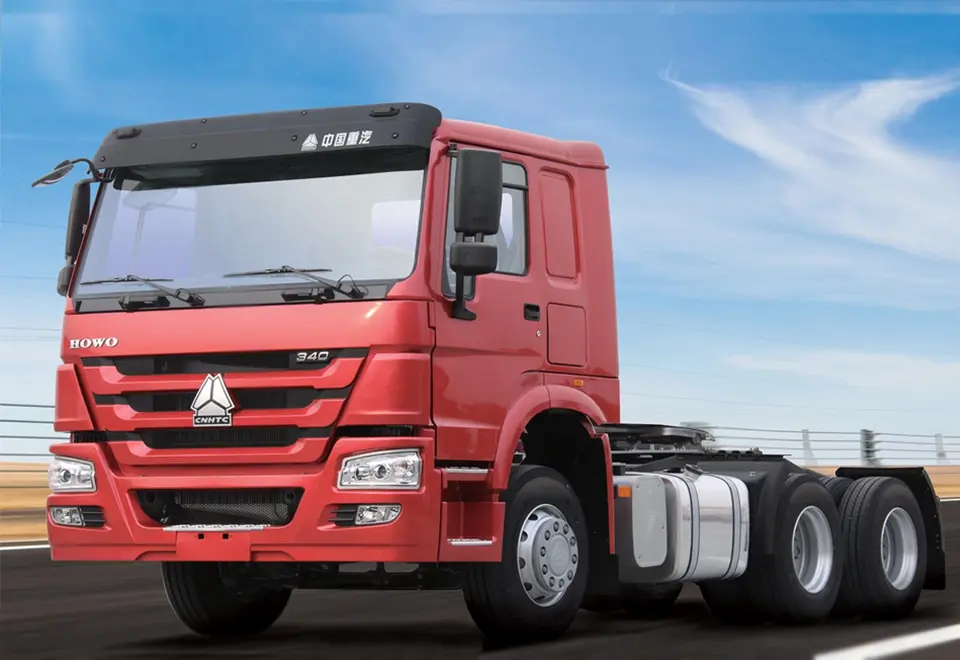

Gallery

Discover the Sinotruk Howo 7 6×4 tractor truck with 420HP Weichai engine, 10-speed HW19710 transmission, and 46-ton towing capacity.
