Sinotruk HOWO 6×4 Crane Truck: Versatile Hoisting Solution for Construction and Logistics

The Sinotruk HOWO 6×4 Crane Truck is a heavy-duty, all-in-one vehicle that combines powerful lifting capabilities with robust cargo transport performance. Designed to handle construction materials, equipment, and heavy goods in diverse environments, it integrates a hydraulic crane system with a durable truck chassis, making it an ideal choice for construction sites, logistics operations, and emergency rescue missions.

Sinotruk HOWO 6×4 Crane Truck: Powerful Crane System with Customizable Configurations

Equipped with high-performance crane units tailored to meet different lifting needs:

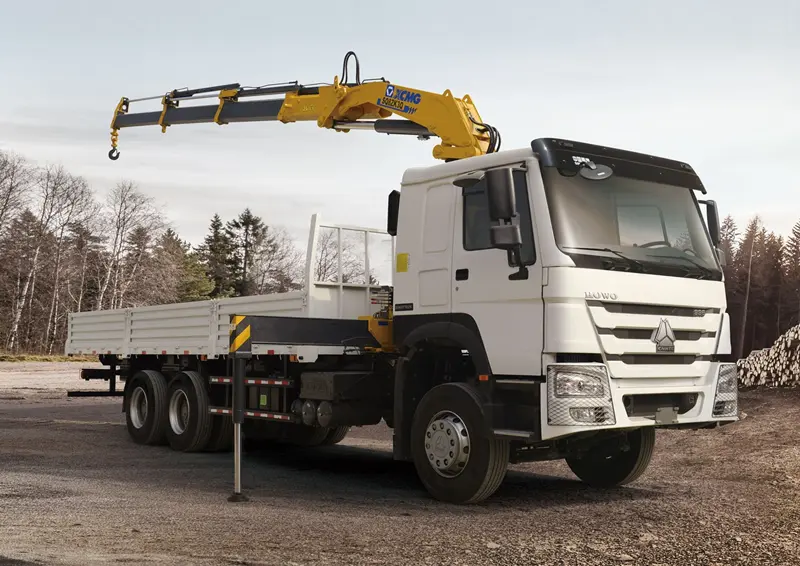

Crane Options: Available with straight-arm or folding-arm cranes from leading brands such as SANY, XCMG, or Palfinger. Straight-arm cranes offer maximum reach up to 18 meters with lifting capacities of 8-16 tons, while folding-arm cranes provide flexible maneuverability in tight spaces with capacities of 10-20 tons.
Hydraulic System: Powered by a high-pressure hydraulic pump and multiple cylinders, the crane delivers smooth and precise lifting operations. It features a 360-degree rotating platform, allowing full coverage of the work area. The system is equipped with overload protection and safety valves to prevent accidents during lifting.

Sinotruk HOWO 6×4 Crane Truck: Robust Truck Performance for Rugged Terrain

Built to handle heavy loads and challenging road conditions:

Engine & Transmission: Powered by a Weichai WP12.400E201 Euro II diesel engine delivering 400 HP (294 kW) and 1900 Nm of torque, paired with a Sinotruk HW19710 10-speed manual transmission. This powertrain combination ensures strong acceleration, smooth gear shifts, and reliable performance even when carrying maximum payloads.

Why Choose the Sinotruk HOWO 6×4 Crane Truck?

All-in-One Solution: Combines lifting and transport capabilities in a single vehicle, reducing operational costs.
Powerful Performance: High-torque engine and robust chassis for heavy-duty operations.
Customizable Configurations: Multiple crane and cargo body options to meet diverse needs.
Operator Comfort: Ergonomic cab and advanced control systems for improved productivity.
Global Support: Extensive after-sales service network ensures reliable operation.

Category	Specifications
Basic Information	– Model: ZZ5257JQVNB471 – Brand: SINOTRUK HOWO – Drive Type: 6×4 (6 wheels, 4 driven) – Emission Standard: Euro II/III/Euro IV optional – Application: Construction, Logistics, Mining, Emergency Rescue
Crane System Options	– Straight-Arm Crane: 8-16 ton capacity, 12-18 m maximum reach – Folding-Arm Crane: 10-20 ton capacity, 10-15 m maximum reach – Brand: SANY/XCMG/Palfinger/China-made Kingtec – Rotation: 360° full rotation – Control Mode: Manual lever / Wireless remote control – Hydraulic System: High-pressure piston pump with overload protection
Engine Performance	– Euro II Version: Weichai WD615.69 (336 HP, 1600 Nm @ 1200-1600 rpm); WD615.47 (371 HP, 1800 Nm @ 1200-1600 rpm) – Euro III Version: Weichai WD615.87 (375 HP, 1900 Nm @ 1200-1600 rpm) – Euro IV Version: Weichai WP12.400E401 (400 HP, 2000 Nm @ 1200-1600 rpm) – Fuel Type: Diesel – Displacement: 9.726 L – Cooling: Water-cooled, turbocharged + intercooling
Transmission & Chassis	– Transmission: SINOTRUK HW19710 10-speed manual (10 forward, 2 reverse) with PTO – Front Axle: 9.5 ton capacity, drum brake – Rear Axle: 2×16 ton double reduction axles with differential lock – Frame: High-strength steel, 300×90×(8+8) mm U-profile beam – Suspension: Front 10-leaf spring, rear 12-leaf spring with stabilizer bar – Wheelbase: 3800+1350 mm / 2040+1860+1860 mm (depends on cab)
Dimensions & Weight	– Overall Dimension: 12000×2550×3950 mm – Cargo Body Dimension: 6800×2400×600 mm – 8200×2400×550 mm – Gross Vehicle Weight (GVW): 25000 kg – Curb Weight: 12000-16000 kg – Max Payload: 9000-13000 kg (excluding crane system)
Cab & Comfort	– Cab Type: HW76/HW78 high-roof cab with 2 seats + sleeper – Features: Air-suspended driver seat, air conditioning, power windows, multi-function steering wheel, digital dashboard – Safety: Reinforced crash structure, air horn, rearview camera with parking sensors, seat belts – Electrical System: 24V, 2×12V/165Ah batteries, 28V/1500W alternator
Braking & Tires	– Brake System: Dual-circuit compressed air brakes with drum brakes + parking brake – Tires: 12.00R20 radial tires (10 tires + 1 spare) – Fuel Tank: 300-400 L aluminum alloy tank
Customization Options	– Cargo Body: Flatbed / enclosed van / drop-side – Crane Brand & Capacity: Customizable based on requirement – Additional Features: Winch, outriggers, toolboxes, GPS tracking system

Sinotruk Howo 6×4 Crane Truck is a multifunctional vehicle that combines the cargo-carrying capacity of a Sinotruk HOWO Crane Truck with the lifting capabilities of a hydraulic crane.
