Sinotruk Howo 4×2 Light Box Cargo Truck

Model: ZZ1107G451CD1C

Engine model: Cummins ISF3.8S3154

Engine power: Power: 154 HP / 115 kW

Gross vehicle weight: 10,000 kg

Fuel Tank : 220L

Leave A Message

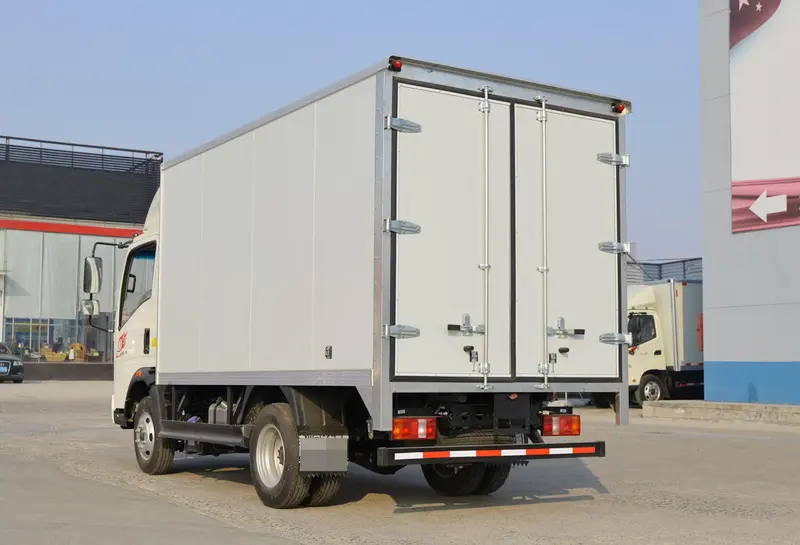

Sinotruk Howo 4×2 Light Box Cargo Truck-3

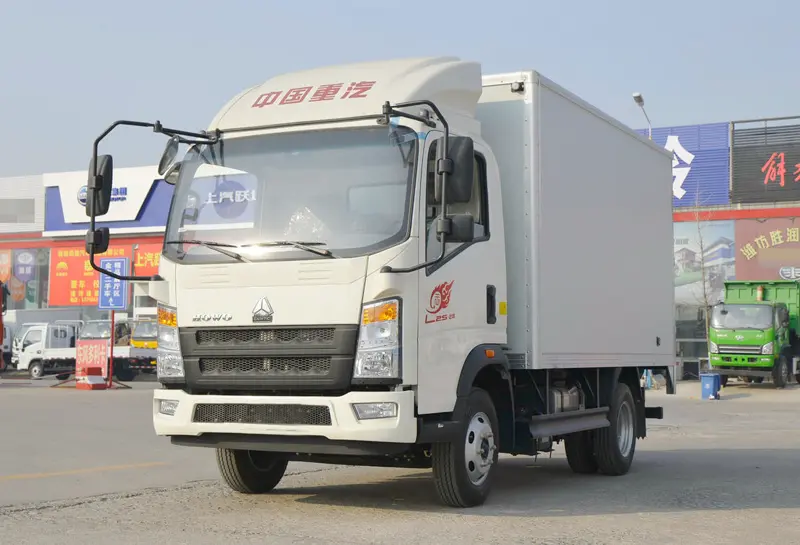

Sinotruk Howo 4×2 Light Box Cargo Truck-2

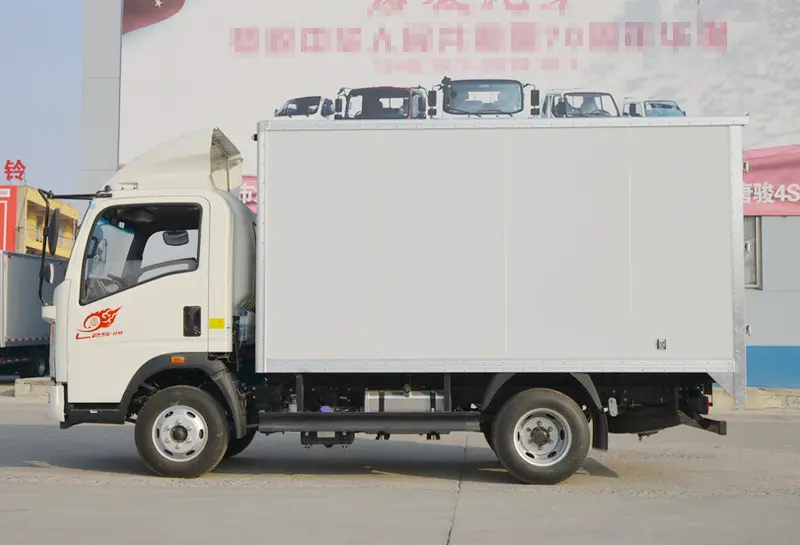

Sinotruk Howo 4×2 Light Box Cargo Truck-1

Overview
Specifications
Gallery

Overview

The Sinotruk HOWO 4×2 Light Box Cargo Truck (also known as a Light Duty Box Van) is an agile, medium-duty commercial vehicle designed for efficient urban distribution and regional logistics. It features a maneuverable 4×2 chassis, a fully enclosed cargo box, and a driver-centric cabin optimized for city driving.

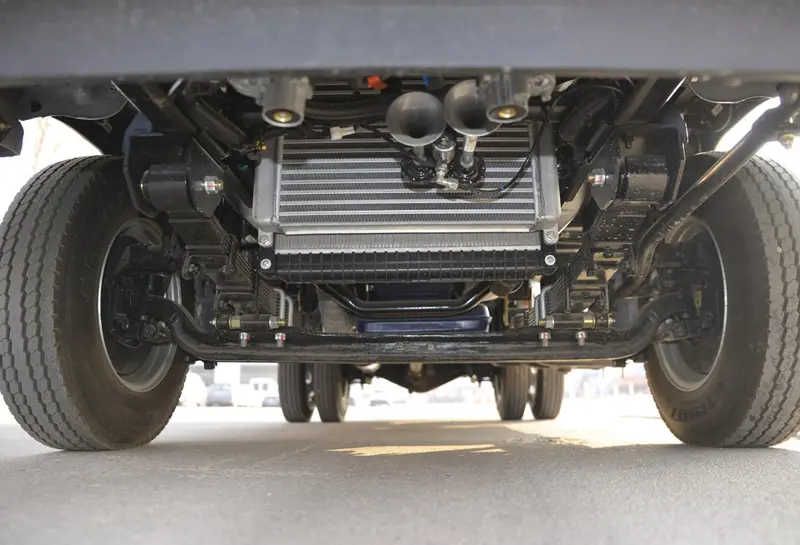

Sinotruk Howo 4×2 Light Box Cargo Truck-5

Sinotruk Howo 4×2 Light Box Cargo Truck: Powertrain and Performance

Engine Options: Typically powered by fuel-efficient 4-cylinder diesel engines from brands like Yunnei, Yuchai, or Sinotruk MC05/07 series.
Horsepower: Power outputs generally range from 110HP to 160HP, balancing torque for heavy city loads with low fuel consumption.
Transmission: Usually matched with a 5-speed or 6-speed manual gearbox (such as WLY6T models) for smooth shifting in stop-and-go traffic.

Sinotruk Howo 4×2 Light Box Cargo Truck: Cargo Capacity and Body Design

Payload Capacity: Standard configurations typically handle rated loads of 3 to 10 tons, depending on the specific model and chassis reinforcement.
Box Dimensions: Common cargo box lengths range from 4.2 meters to 6.2 meters, providing versatile space for various goods.
Enclosed Structure: The “Box” or “Van” body protects cargo from weather, theft, and dust, making it ideal for e-commerce, courier services, and retail distribution.

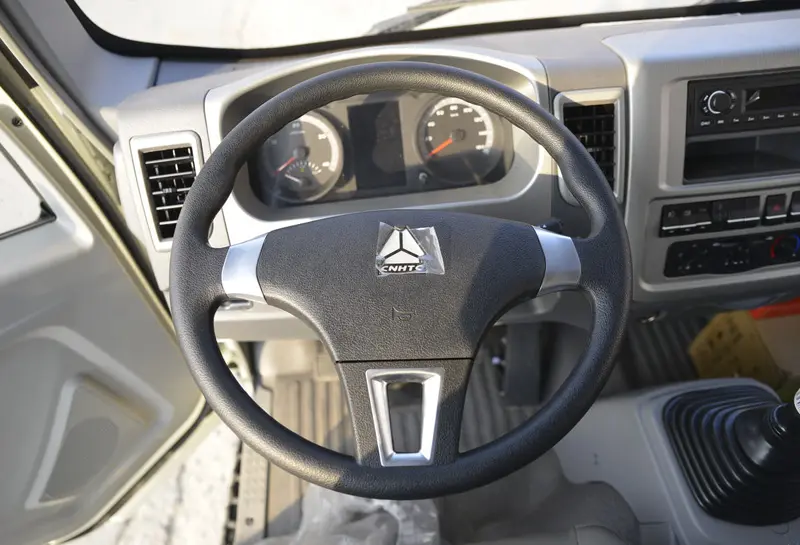

Sinotruk Howo 4×2 Light Box Cargo Truck-4

Sinotruk Howo 4×2 Light Box Cargo Truck: Cabin and Driver Comfort

Modern Cabin: Available in single or extended cab versions (e.g., 1880mm or 2080mm wide), often featuring a high-visibility windshield to reduce blind spots.
Interior Features: Equipped with ergonomic seating, air conditioning, and a multifunctional dashboard. High-end models may include a multifunction steering wheel with cruise control and Bluetooth.

Specifications

Category	Details
Model	ZZ1107G451CD1C
Drive Type	4×2
Engine	– Model: Cummins ISF3.8S3154 – Power: 154 HP / 115 kW – Displacement: 3.76 L – Emission Standard: Euro III / Euro V optional
Transmission	– Model: WLY6T53 – Type: Manual – Gears: 6 forward + 1 reverse
Axles	– Front axle: 2.7t drum brake – Rear axle: 7.2t drum brake (ratio 4.875)
Box Dimensions	– Internal: 5800mm x 2300mm x 2300mm – External: 8000mm x 2498mm x 3400mm
Weight	– Curb weight: 5,095 kg – Gross vehicle weight: 10,000 kg – Max payload capacity: 8,200 kg
Tires	8.25R16 (6 + 1 spare pieces)
Fuel Tank	220L
Braking	Dual circuit compressed air brake + exhaust brake
Frame	Single-layer frame (height 215mm)
Cab	– 2080mm extended cab, 3 seats + 1 sleeper – Air conditioning – Power steering – Clutch booster – Spring brake
Electrical System	24V
Steering	Hydraulic power steering
Performance	– Max speed: 90 km/h – Gradeability: ≥20% – Wheelbase: 4500mm

Gallery

Whether it’s the fast delivery of e-commerce packages, timely restocking of supermarket goods, or high-precision cold chain transportation, the HOWO light truck is up to the task.Its powerful engine enables smooth navigation through busy streets and complex urban road conditions.
