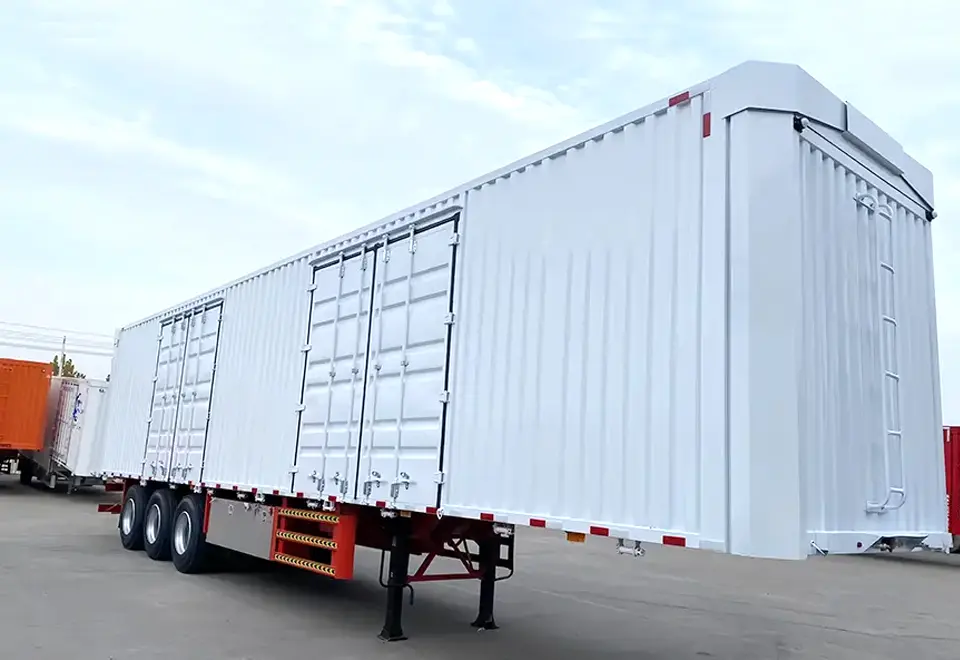

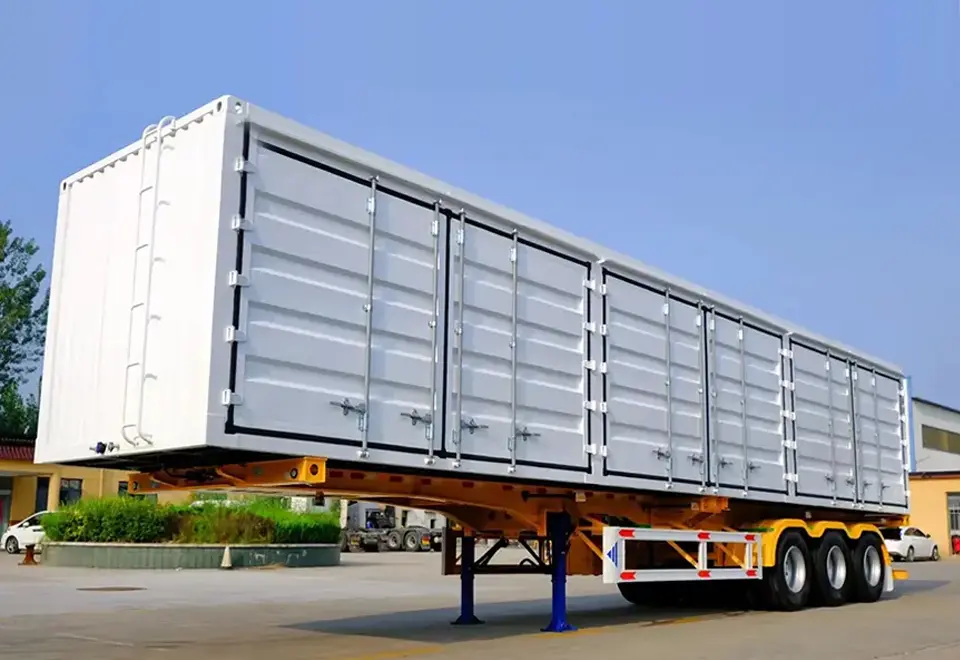

Sinotruck Howo Van Box Semi Trailer

Sinotruck Howo Van Box Semi Trailer: Secure and Efficient Cargo Transport Solution

The Sinotruck Howo Van Box Semi Trailer is a specialized heavy-duty transportation solution designed to work seamlessly with SINOTRUK’s Howo truck models. Manufactured by top-tier Chinese manufacturers, these semi trailers are engineered to provide secure and efficient transportation of general cargo, making them ideal for logistics companies, freight carriers, and distribution centers worldwide.

Robust Construction: Built with high-quality high tensile steel and advanced manufacturing technology to withstand extreme loads and harsh operating conditions
Low-Profile Design: Low deck height enhances stability during transport and allows for taller cargo to be carried without exceeding height restrictions
Versatile Configurations: Multiple axle configurations and extendable options to accommodate different cargo sizes and weights
Customization Options: Tailorable dimensions, materials, and features to meet specific operational requirements and regional regulations

Why Choose Sinotruck Howo Van Box Semi Trailer?

Proven Durability: Built to withstand the most demanding operating conditions with reinforced chassis and high-quality steel construction
Secure Cargo Protection: Enclosed van box design ensures cargo remains safe and protected during transport
Cost-Effective: Competitive pricing with low maintenance costs compared to international brands
Global Support: Backed by SINOTRUK’s extensive international service network and readily available spare parts
Customization Expertise: Ability to tailor trailers to specific industry needs and regional regulatory requirements

SINOTRUCK HOWO VAN BOX SEMI TRAILER
Product Type	Van Box Semi-Trailer
Main Chassis Material	Made of high quality and high strength Q345 steel, ;made of two welded long itudinal beams in I form with cross beams at needed distances (Optional special T700 steel for light weight design)
Tail Gate	Mechanical open, lengthwise, top-hinged (Optional hydraulic)
Volume	45-60 m3 (Optional design with any volume)
Semi Trailer Axle Specification
Number of Axles	2-3-4 axles
Axle Brake Type	Drum brake type (Optional disc brake type)
Each Axles Capacity	13 tons capacity (Optional up to 20 tons)
Each Sequence Twin/Single Wheel	Single wheel (Depends on tire dimension)
Number of Steered Axles and Position	Optional other options
Semi Trailer Suspension Equipment
Suspension Type	Air suspension and equipment’s (Optional any type)
Suspension Bellows and Type	818 Type suspension bellows
Springs and Type	Parabolic double decked Z spring or other types
Shock Absorbers	Standard shock absorbers equipment
Trailer Tires & Rims Specifications
Tire Dimensions	385/65 R 22.5 (Optional any compatible size)
Rim Dimensions	22.5X11.75 steel rims with standard tire dimension
Total Tire & Rim Unit	With 385/65 R 22.5 option, totally 12 units (for 24m3)
Other Compatible Tire Sizes	12 R 22.5 (Double tire size optional)
Semi Trailer Brake System
Air Line	Standard Dual circuit brake hardware
Brake System	EBS (Optional 4S/3M or 4S/4M) WABCO or KNORR brand (Optional only ABS System)
Brake Slack Adjusters	Automatic type
Semi Trailer Electrical Equipment
Electrical Input Voltage	Standard 24V
Socket Type	Standard 7 (optional 15 pins) NATO type or any type distribution cable
Ex-Proof Compatibility	Available as optional
Lighting Functions	Brake, signal, stop, reversing and fog lights, side lights, reversing lights, license plate lights
Semi Trailer Hydraulic Equipment
Hydraulic System	Five stages heavy duty cold-drawn telescopic cylinder
Hydraulic Oil Tank	Available as optional (Optionally oil tank has 70lt capacity or at the desired capacity. On the tank there are, 125″ suction filter, and 25″ return filter with ventilation, level indicator, special valve, and releasing tap)
Other Standard Equipment
King Pin	50#/90#
Landing Legs	Dynamic 24 ton, static 50 tons capacity, one side controlled
Lockable Cabinets	1-2 units
Spare Tire Holder	1-2 units
Operate the shining vest	1-2 units
Water Tank	1 water tank with soap dispenser
Mudguards	3 sets of half mudguard
