Sinotruck Howo TX 6X4 Electrical Prime Mover Tractor Truck

Model: ZZ4257V384GZ1SBEV

Rear motor model : TZ400XSTPG06

Peak power : 360kW

Battery capacity : 282kWh

Maximum Speed: 89km/h

Leave A Message

Sinotruck Howo TX 6X4 Electrical Prime Mover Tractor Truck

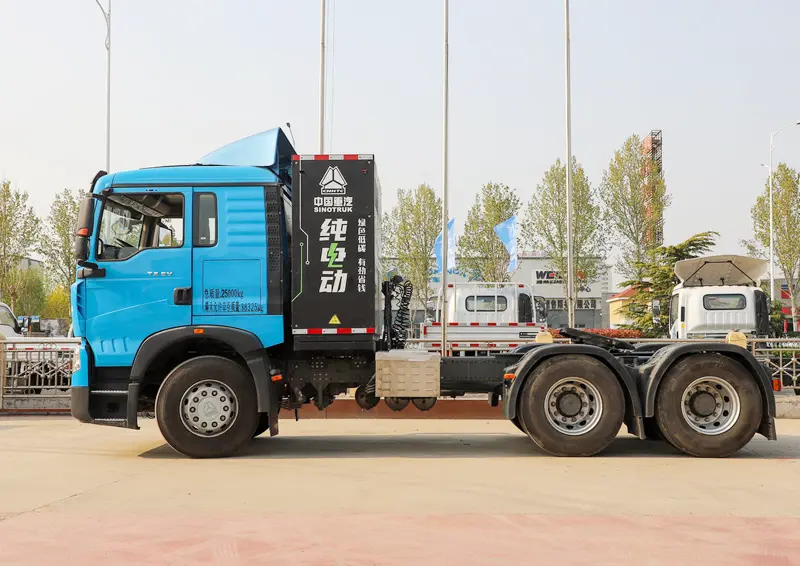

Sinotruck Howo TX 6X4 Electrical Prime Mover Tractor Truck-2

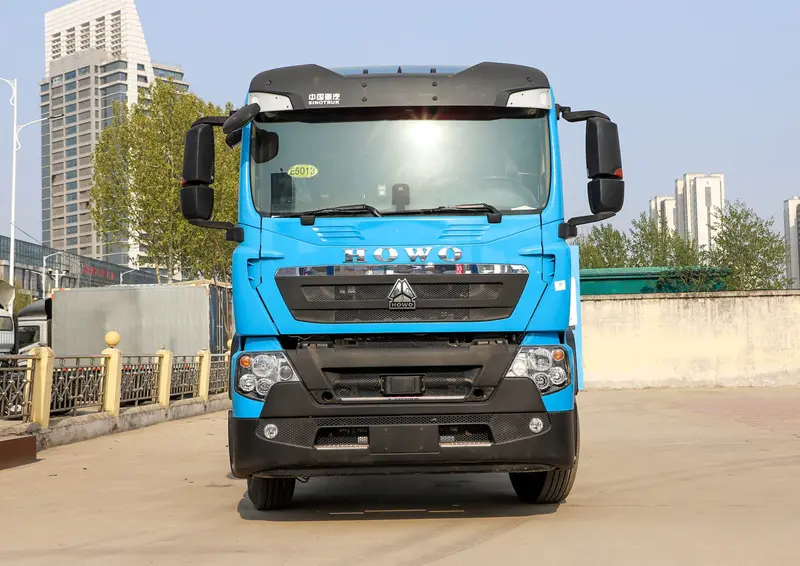

Sinotruck Howo TX 6X4 Electrical Prime Mover Tractor Truck-3

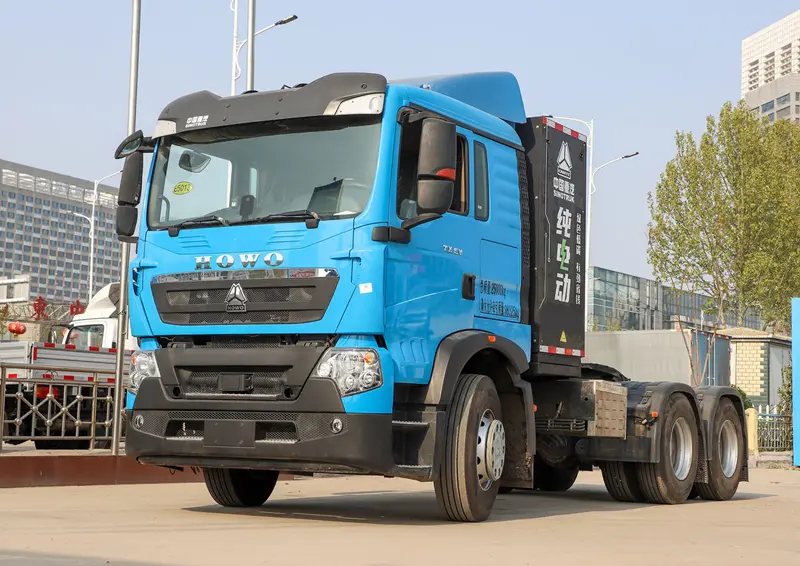

Sinotruck Howo TX 6X4 Electrical Prime Mover Tractor Truck-1

Overview
Function
Specifications
Gallery

Overview

The Sinotruk HOWO TX 6×4 Electric Tractor Truck (Model ZZ4257V384GZ1SBEV) is a heavy-duty, zero-emission prime mover designed for short-to-medium distance logistics, port operations, and industrial hauling. It combines the established MAN technology-based TX chassis with a high-performance electric powertrain to offer a sustainable alternative to traditional diesel trucks.

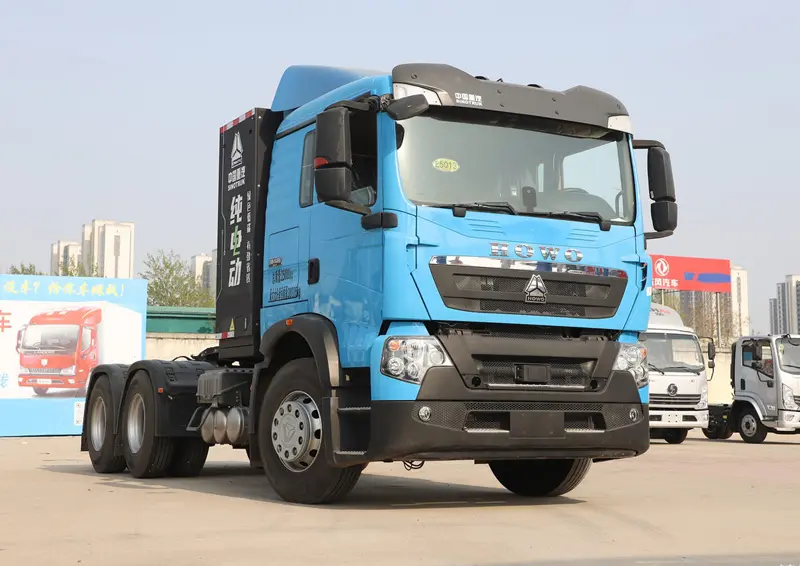

Sinotruck Howo TX 6X4 Electrical Prime Mover Tractor Truck-4

Sinotruck Howo TX 6X4 Electrical Prime Mover Tractor Truck Powertrain and Performance

Electric Motor: Equipped with a high-efficiency Permanent Magnet Synchronous Motor (PMSM).
Peak Power: Typically 480kW (approximately 650HP), with some configurations offering up to 410kW or a triple-motor setup reaching 825kW.
Maximum Torque: The powertrain can deliver up to 34,913 N·m of output torque, providing exceptional climbing and starting abilities.

Sinotruck Howo TX 6X4 Electrical Prime Mover Tractor Truck Charging and Efficiency

Fast Charging: Supports dual-gun 600A fast charging, allowing for a 30% to 80% charge in less than 25 minutes.
Battery Swap: Some variants are compatible with 5-minute battery swapping technology for 24/7 continuous operation.
Regenerative Braking: Features an energy recovery system that converts kinetic energy back into electricity during braking, extending the vehicle’s operational range

Sinotruck Howo TX 6X4 Electrical Prime Mover Tractor Truck Cab and Safety

TX-F Cabin: A modern, driver-centric cab featuring a flat-floor design and 3-passenger seating.
Technology: Includes a 12-inch center screen, an airbag shock-absorbing seat, and automatic air conditioning.
Safety Systems: Standard safety features include ABS (Anti-lock Braking), ASR (Anti-Slip Regulation), and ESC (Electronic Stability Control).

Function

Exceptional Seating and Sleeping Comfort

Drivers can easily adjust the airbag's inflation and deflation with a simple button. Plus, both-sided armrests enhance driver comfort further.

Always in the Right Gear

The HW series transmission incorporates a globally advanced transmission design, employing a double countershaft main transmission coupled with a planetary gear auxiliary transmission. This results in simpler, more reliable, and more durable PTO and gear shifting operations.

Intuitive and User-Friendly Controls

Our clear and intuitive layout places functionally-related buttons and rotary switches together for direct, efficient, and error-free operation.

Safety At All Times

Active and passive safety protection put your safety first and keeps other pedestrains safe at anytime and anywhere.

Specifications

Category	Details
Truck Name	Sinotruck Howo TX 6X4 Electrical Prime Mover Tractor Truck
Model	ZZ4257V3241W
Drive Type	6×4
Battery & Motor	– Battery Capacity: 350kWh (LFP battery) – Motor Power: 360kW (max output) – Range: Up to 250 km (on full charge) – Charging Time: 1.5 hours (DC fast charge)
Transmission	Single-speed direct drive transmission
Axles	– Front axle: HF7 – Rear axle: HW16707 (MAN technology)
Dimensions	– Length x Width x Height: 6800mm x 2600mm x 3450mm – Wheelbase: 3225+1350 mm
Weight	– Curb weight: 10200 kg – Gross vehicle weight: 42000 kg
Performance	– Maximum speed: 90 km/h – Maximum torque: 2500 Nm
Cab	– HOWO TX high-roof luxury cab – Air conditioning, adjustable seats, sleeper berth – Ergonomic control layout with digital instrument cluster
Steering	ZF hydraulic power steering
Braking	Regenerative braking system with ABS/EBD
Tires	12R22.5 tubeless tires
Fifth Wheel	2-inch standard (3.5-inch optional)
Applications	Urban logistics, port transportation, short-haul cargo delivery (zero-emission operation)

Gallery

The HOWO-TX cab is designed with the driver in mind, prioritizing comfort and convenience to enhance both work and living conditions. Every detail reflects a deep understanding of their needs.
