Sinotruck Howo TH7 Fence Cargo Truck

Model: ZZ5317XXYV446KF1

Engine model: MC11H.49-61

Horsepower: 490 HP

Gross vehicle weight: 31 t

Fuel Tank : 600L / 800L optional

Leave A Message

Overview
Function
Specifications
Gallery

Overview

The Sinotruk HOWO TH7 Fence Cargo Truck is a premium, high-efficiency heavy-duty vehicle designed for demanding logistics sectors such as agriculture, livestock, and construction. Positioned as a flagship model, it features an advanced aerodynamic cab and powerful MAN or Weichai engines to provide high performance for long-distance trunk logistics.

Sinotruck Howo TH7 Fence Cargo Truck Powertrain and Performance

Engine Range: Commonly equipped with high-displacement engines ranging from 460HP to 610HP, such as the Weichai WP13 or WP15T series. The WP15T can deliver a peak torque of up to 3200 N·m.
Transmission: Features the advanced S-AMT16 (16-speed Automated Manual Transmission) independently developed by Sinotruk, which includes an “Old Driver” manual mode for precise control.

Sinotruck Howo TH7 Fence Cargo Truck: Cargo Capacity and Body Design

Fence Structure: The specialized fence body (also called a stake or cage body) is designed for versatility, featuring high-strength steel and a locking mechanism to secure livestock or bulk construction materials.
Dimensions & Payload: The 8×4 configuration often features a 9.5m to 9.6m cargo box with a Gross Vehicle Weight (GVW) typically between 25,000kg and 34,000kg.

Sinotruck Howo TH7 Fence Cargo Truck: Cabin and Driver Comfort

Aerodynamic Design: The TH7 cab is engineered with Sinotruk’s most advanced aerodynamic profile to reduce wind resistance and fuel consumption.
Premium Amenities: The “mobile living space” interior includes air-suspension seats with lumbar support, a widened sleeper berth, and high-quality noise insulation to keep drivers alert.

Function

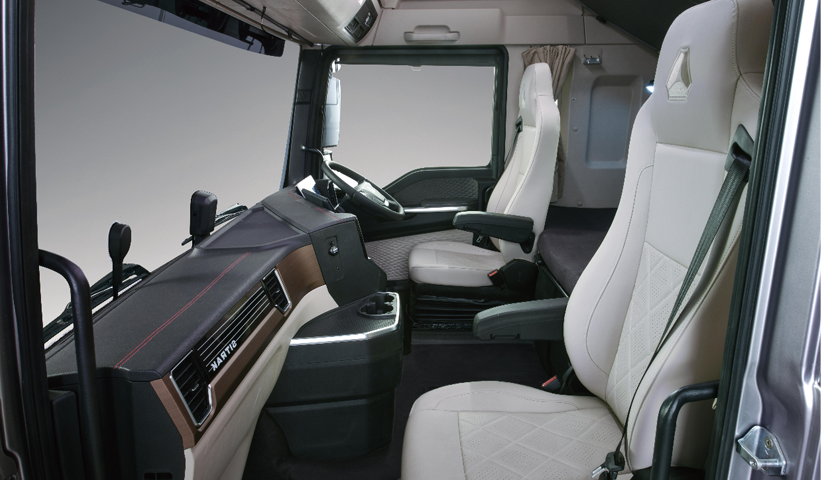

Exceptional Seating and Sleeping Comfort

Drivers can easily adjust the airbag's inflation and deflation with a simple button. Plus, both-sided armrests enhance driver comfort further.

Intuitive and User-Friendly Controls

Our clear and intuitive layout places functionally-related buttons and rotary switches together for direct, efficient, and error-free operation.

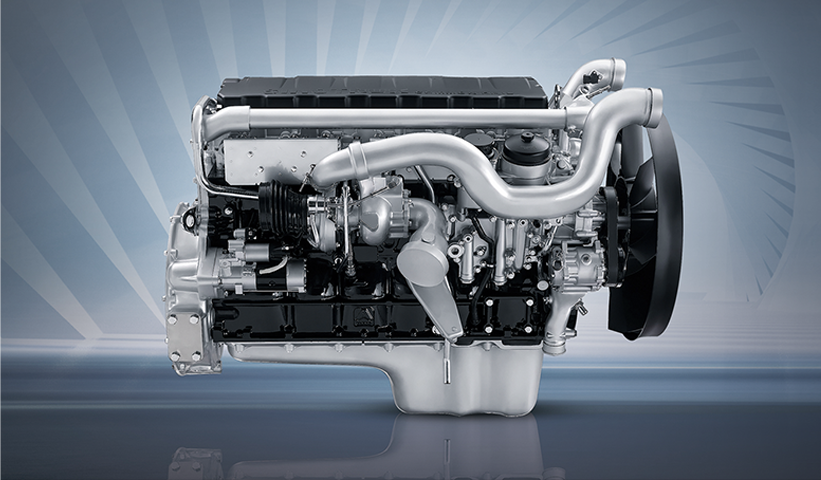

Strong Power, Efficient and Reliable

The combination of MC series engine, smart transmission and high-efficiency driving axles, enable you to raise economic yields and reduce cost while meet your more power needs.

Safety At All Times

Active and passive safety protection put your safety first and keeps other pedestrains safe at anytime and anywhere.

Specifications

Category	Details
Model	ZZ1317N466GE1 (8×4 configuration)
Truck Name	Sinotruck Howo TH7 Fence Cargo Truck
Drive Type	8×4
Engine	– Model: WD615.47 / MC11.440-60 – Power: 371 HP / 440 HP – Displacement: 9.726 L / 11.05 L – Emission Standard: Euro II / Euro VI
Transmission	– Model: HW19710 / HW25716 – Type: Manual / AMT optional – Gears: 10 forward + 2 reverse / 16 forward + 2 reverse
Axles	– Front axle: VGD71 (7.1t loading capacity) – Rear axle: MCY16 (16t loading capacity, MAN technology)
Fence Dimensions	– External: 9550mm x 2550mm x 3980mm – Internal: 9400mm x 2460mm x 3800mm
Weight	– Curb weight: 8,500 kg – Gross vehicle weight: 31,000 kg – Max payload capacity: 22,500 kg
Tires	12.00R20 mining area block pattern tires / 12R22.5 tubeless tires (12 pieces)
Fuel Tank	400L / 600L optional
Braking	WABCO ABS with disc brakes + EBS + ASR
Frame	High-strength double-layer frame (300x80x8+5 mm)
Cab	– Howo TH7 wide-body sleeper cab – Air suspension seat with heating/ventilation – Automatic air conditioning – 12-inch touchscreen multimedia system – Electronic stability control (ESC)
Electrical System	24V, CAN bus with intelligent diagnostics
Steering	ZF hydraulic power steering with variable ratio
Performance	– Max speed: 90 km/h – Gradeability: ≥30% – Minimum turning radius: 11 m

Gallery

The highly cost-effective HOWO-MAX offers you exceptional comfort, reliability, and economic benefits. Its meticulous design not only enhances the driving experience but also optimizes operating costs, making it the ideal choice for efficient transportation.
