Sinotruck Howo Side Wall Semi Trailer

Model: Side Wall Semi Trailer

Cargo area size:: 12500x2500x2200mm

Overall size: 12500x2500x3260mm

Load Capacity: 60 to 70 tons

Axle: 3-axle system

Leave A Message

Sinotruck Howo Side Wall Semi Trailer (5)

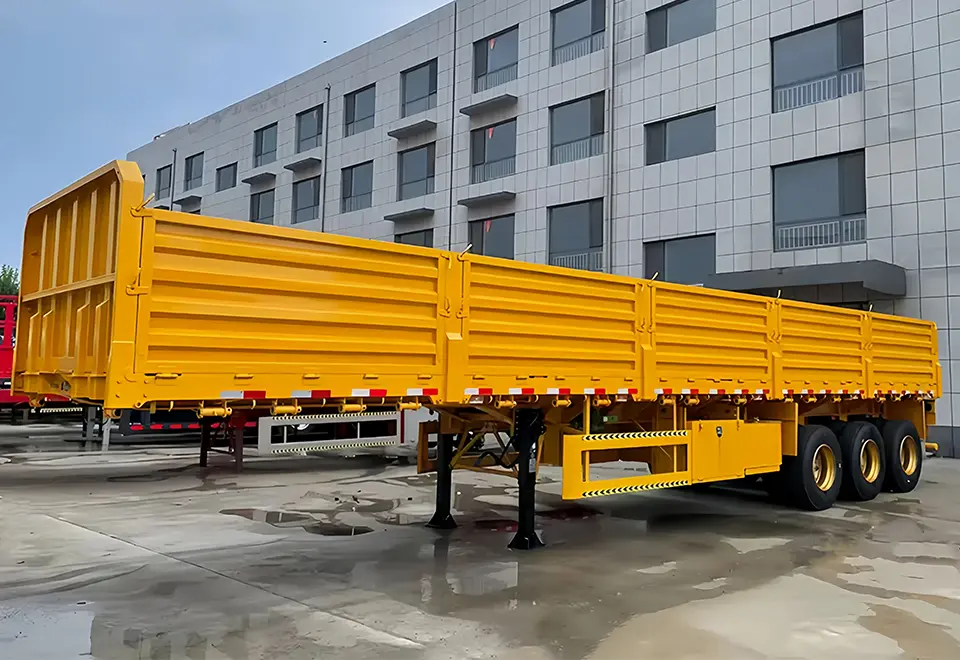

Sinotruck Howo Side Wall Semi Trailer (3)

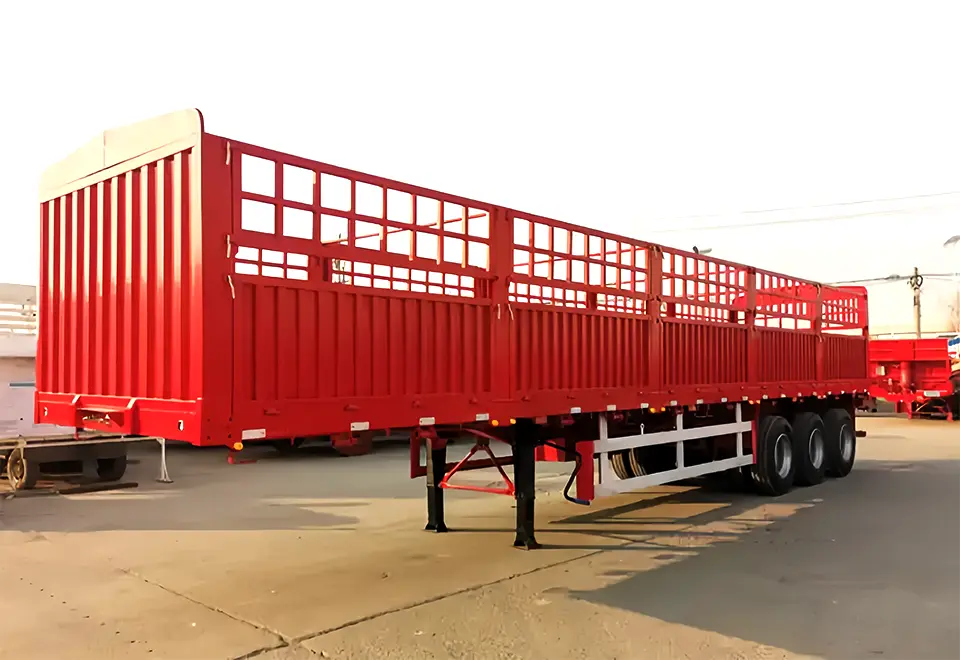

Sinotruck Howo Side Wall Semi Trailer (1)

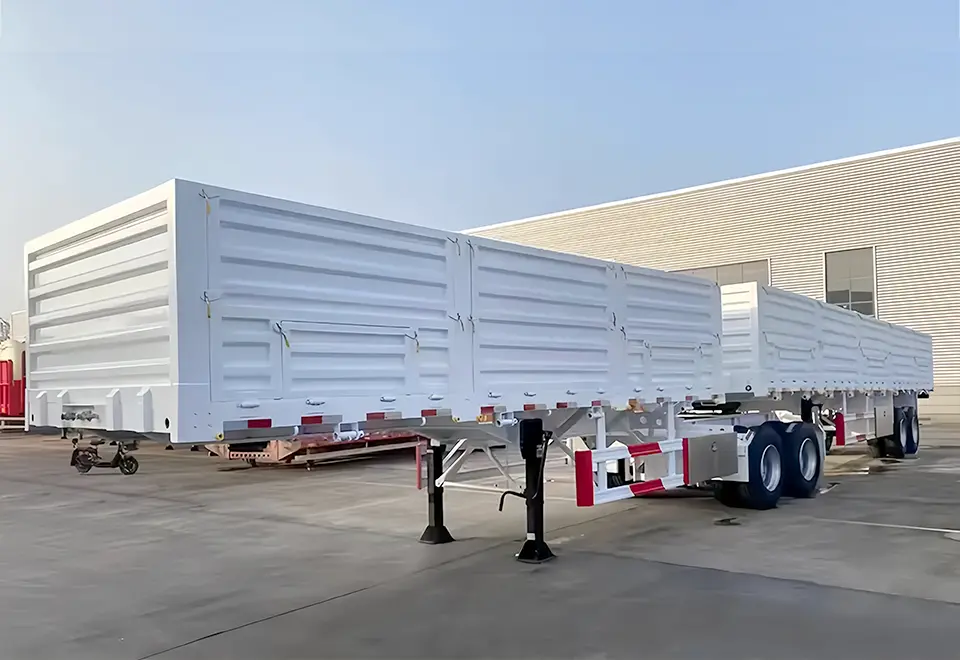

Sinotruck Howo Side Wall Semi Trailer (4)

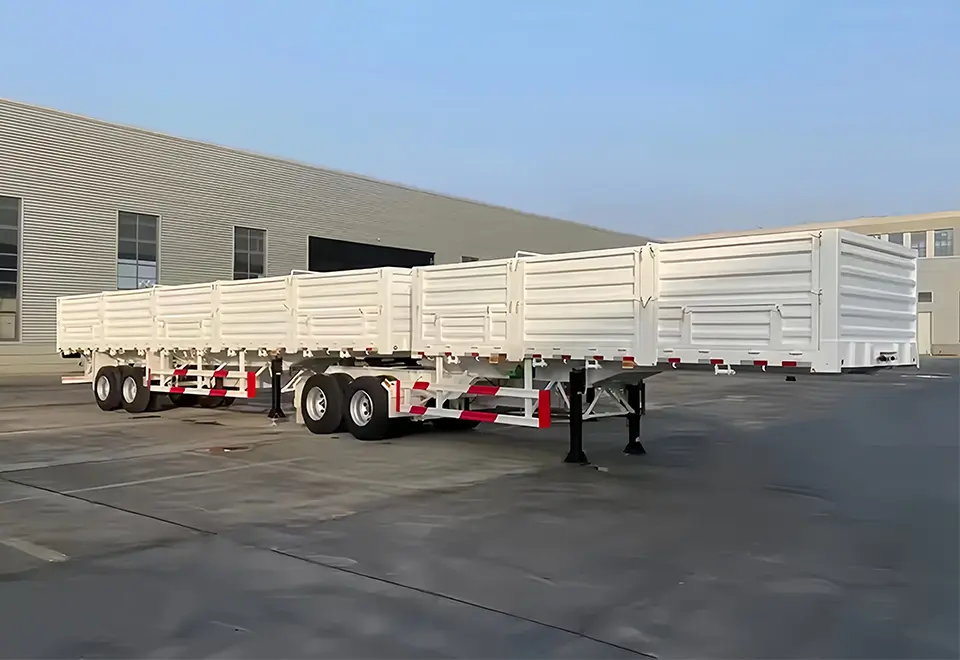

Sinotruck Howo Side Wall Semi Trailer (2)

Overview
Specifications
Gallery

Overview

Sinotruck Howo Side Wall Semi Trailer: High-Capacity and Versatile Transport Solution

The Sinotruck Howo Side Wall Semi Trailer is a robust and versatile heavy-duty transportation solution designed to work seamlessly with SINOTRUK’s Howo truck models. Manufactured by top-tier Chinese manufacturers, these semi trailers are engineered to transport a wide range of cargo, including construction materials, machinery, agricultural products, and general goods, meeting the rigorous demands of logistics companies, construction firms, and industrial operations worldwide.

Performance Features

Robust Construction: Built with high-quality T700 steel and automatic submerged-arc welding processes for exceptional durability and load-bearing capacity
Versatile Cargo Handling: Drop-side design enables easy loading and unloading of diverse cargo types, from construction materials to agricultural products
Customization Options: Available with 2-6 axle configurations to meet specific operational requirements and regional regulatory standards
Advanced Safety Features: Equipped with reliable braking systems,
reflective markings, and secure tie-down points for safe transport in various road conditions
Certifications: ISO, BV, CCC, and other international certifications available to meet global market requirements

Applications

Construction Material Transport: Ideal for transporting building materials such as steel bars, pipes, and prefabricated structures
Agricultural Product Logistics: Suitable for transporting grain, crops, and farm equipment
Industrial Goods Transport: Supports heavy machinery and industrial equipment delivery to construction sites and factories
General Cargo Distribution: Versatile enough to handle diverse general cargo transportation needs for logistics companies and distribution centers

Why Choose Sinotruck Howo Side Wall Semi Trailer?

Proven Durability: Built with high-strength T700 steel and advanced manufacturing processes to withstand extreme loads and harsh operating conditions
High Capacity: Up to 70-ton maximum loading capacity ensures efficient transport of heavy and bulky cargo
Cost-Effective: Competitive pricing with low maintenance costs compared to international brands, backed by readily available spare parts
Customization Expertise: Ability to tailor trailer configurations to specific industry needs and regional regulatory requirements

Specifications

SINOTRUCK HOWO SIDE WALL SEMI TRAILER
Type	Cargo Semi Trailer
Function	2×20 ft container or 1x40ft container or others goods
Overall dimensios	12500x2500x1600 mm
Loading weight	40,000 – 60,000 kg
Side wall and Fence	600mm+600mm, size is optional
Container twist lock	12 pcs
Main beam	Q345B steel
	The height of the beam is 50mm, upper plate is 14mm,
	down plate is 16mm, middle plate is 8mm
Side beam	16 U shaped steel or I shaped steel
Chassis
Axle brand	13 ton
Axle number	3
Landing gear	Standard 28 ton
Suspension system	Mechanical suspension
Steel spring	2010/10/10
Tire	12.00R22.5 tubeless tire
Tire quantity	12
Frame
Platform thickness	3 mm diamond plate
Accessories
Brake	6 big chamber brake system, without ABS
Tool box	1 unit
Spare wheel carrier	2 units
Side marker lamp	LED type
Voltage	24V
Receptacle	7 ways

Gallery

Sinotruck Howo Side Wall Semi Trailer – 40-60 Ton Cargo Transport
