Sinotruck Howo MAX 8×4 Box Cargo Truck

Model: ZZ5317XXYV446KF1

Engine model: MC11H.49-61

Horsepower: 490 HP

Gross vehicle weight: 31 t

Fuel Tank : 600L / 800L optional

Leave A Message

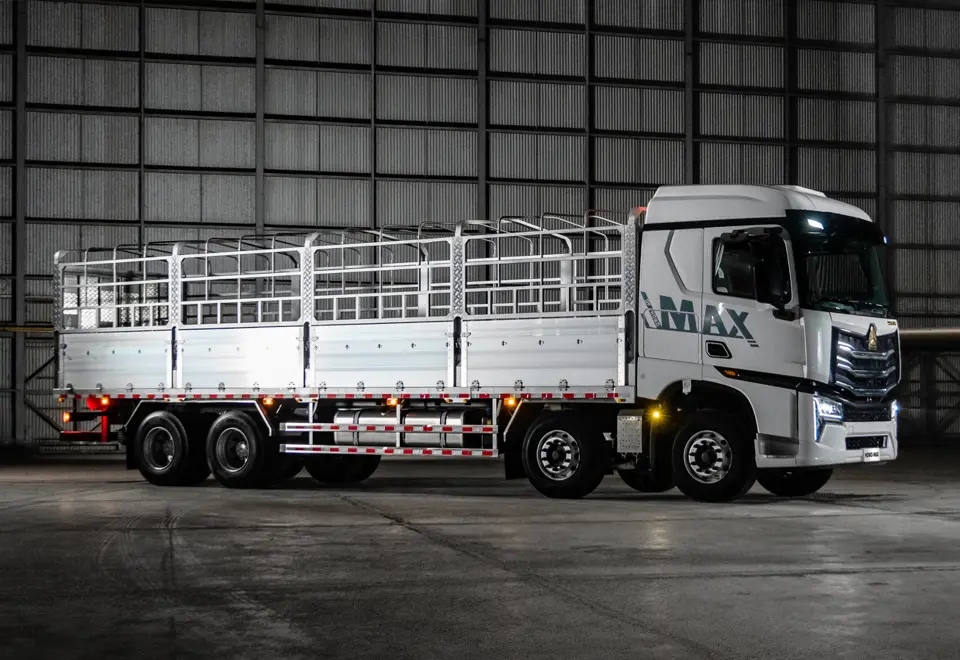

Sinotruck Howo MAX 8×4 Box Cargo Truck-1

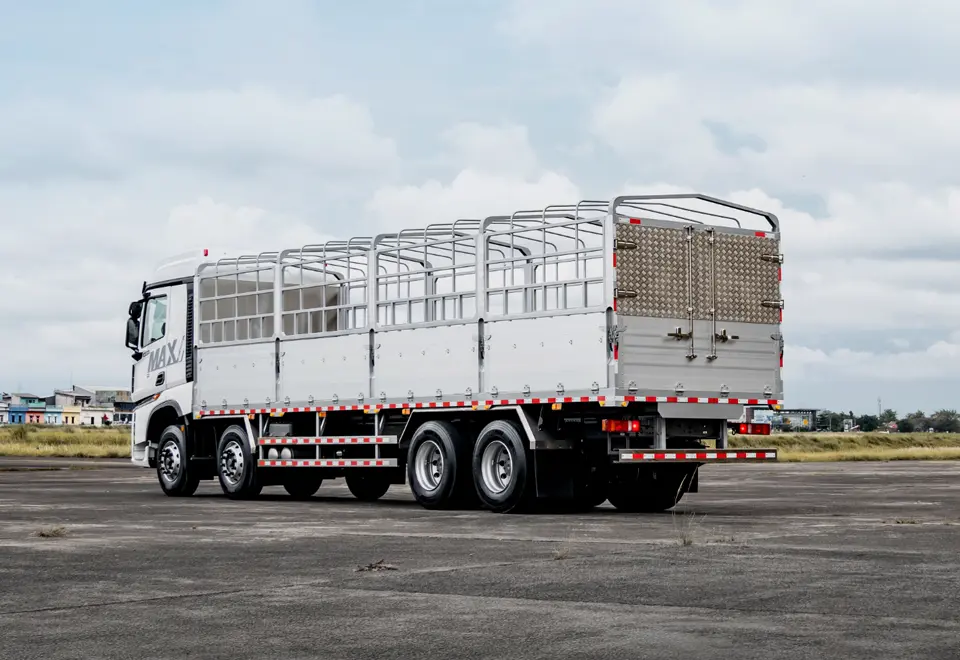

Sinotruck Howo MAX 8×4 Box Cargo Truck-2

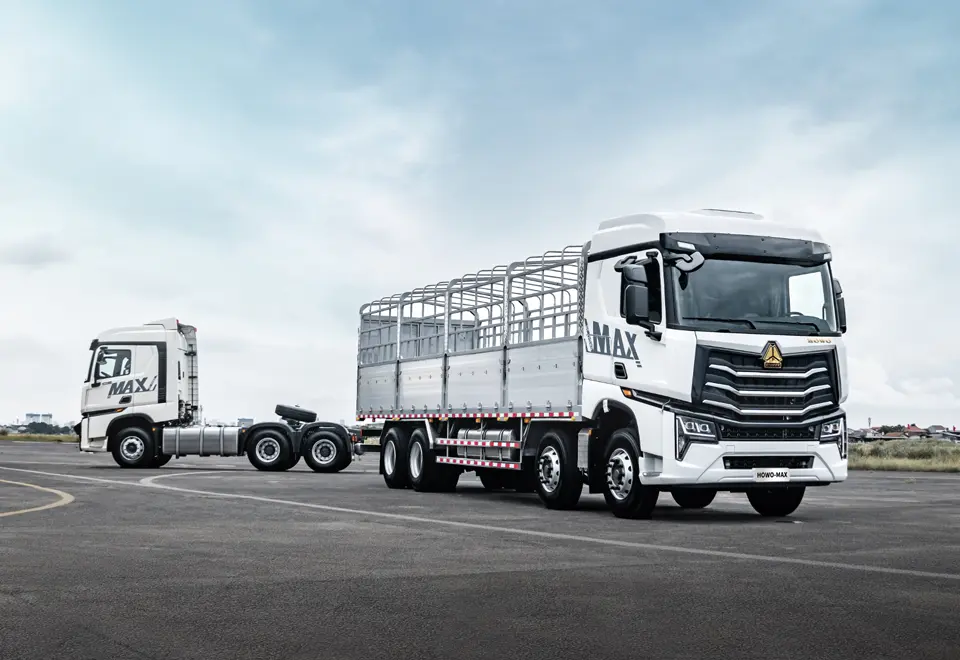

Sinotruck Howo MAX 8×4 Box Cargo Truck-3

Overview
Function
Specifications
Gallery

Overview

The Sinotruk HOWO MAX 8×4 Box Cargo Truck is a premium heavy-duty vehicle designed for large-scale logistics, express transportation, and high-capacity hauling. As part of the “MAX” series, it incorporates advanced German MAN technology for its powertrain and a modern, high-comfort cabin designed to meet the demands of long-distance drivers.

Sinotruck Howo MAX 8×4 Box Cargo Truck: Powertrain and Performance

Engine Options: Typically powered by Sinotruk MC11H or MC13H engines (MAN technology), with power outputs ranging from 400HP to 540HP. These engines are known for their high efficiency and compliance with Euro VI emission standards.
Transmission: Features either a 16-speed manual gearbox or an advanced AMT (Automated Manual Transmission), which reduces driver fatigue and optimizes fuel economy through intelligent shift logic.

Sinotruck Howo MAX 8×4 Box Cargo Truck : Cargo Capacity and Chassis

Box Dimensions: The standard cargo box length is typically 9.6 to 9.7 meters, with customizable heights and widths to suit specific logistics needs.
Payload Capacity: Depending on the specific configuration, the rated load capacity generally falls between 17.6 and 19 tons.
Chassis Durability: Built on a high-strength steel frame (e.g., 8+8mm dual-layer) with reinforced suspension, including VGD series front axles and MCJ series rear axles with high transmission efficiency (up to 98.6%).

Sinotruck Howo MAX 8×4 Box Cargo Truck : Safety Systems

Active Safety: Standard safety features include ABS (Anti-lock Braking System) and ESP (Electronic Stability Program).
Driver Assistance: Higher-end models can be equipped with LDWS (Lane Departure Warning System) and FCWS (Forward Collision Warning System) to enhance road safety.

Function

Sinotruck Howo MAX Engine

Powered by the high-performance, fuel-efficient MC series and competitively strong WP series engines, the HOWO-MAX offers a wide range of power outputs to meet different operational needs. The B10 engine lifespan reaches up to 1.5 million kilometers.

Sinotruck Howo MAX Transmission

The upgraded transmission system features optimized shift logic, faster response, and improved fuel efficiency, ensuring a smoother and more reliable driving experience.

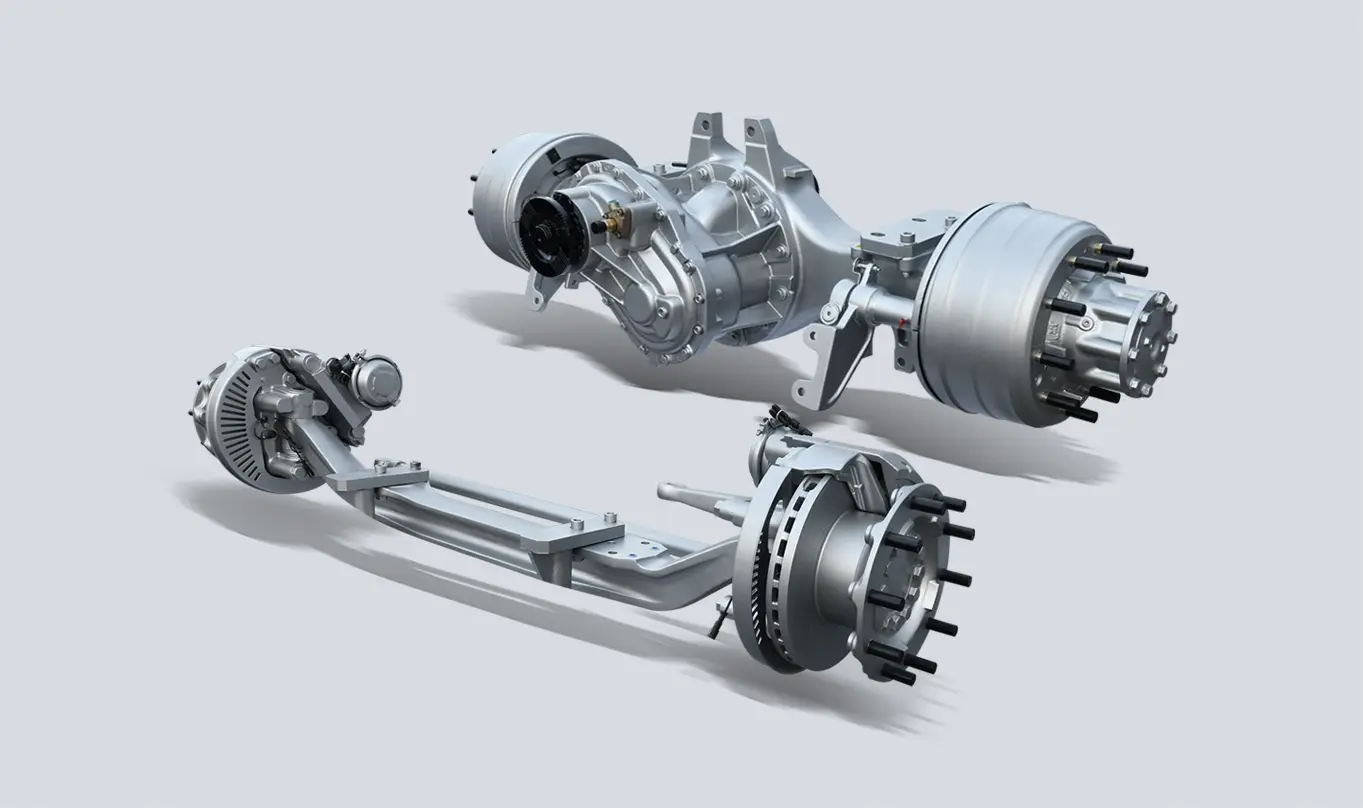

Sinotruck Howo MAX Axle

The drive axle main reducer adopts Oerlikon high-contact ratio gears, achieving a transmission efficiency of up to 98.6%.

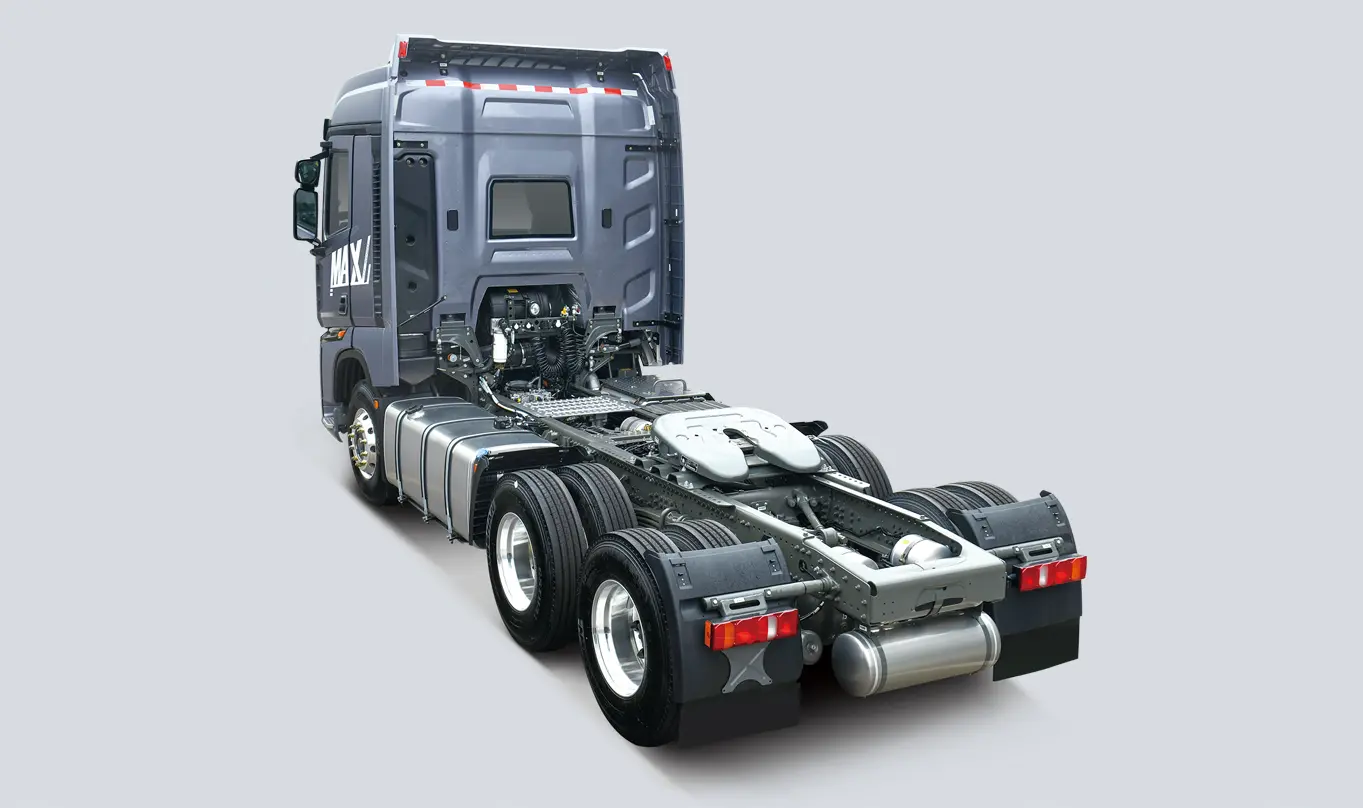

Lightweight and Comfortable Suspension System

In collaboration with internationally renowned company SACHS, the chassis and cab damping system have been finely tuned to provide optimal shock absorption, significantly enhancing overall ride comfort. The rear segmented balanced suspension adopts a rubber bearing structure to improve vehicle stability.

Specifications

Category	Details
Model	ZZ5317XXYV446KF1
Truck Name	Sinotruck Howo MAX 8×4 Box Cargo Truck
Drive Type	8×4
Engine	– Model: MC11H.49-61 – Power: 490 HP – Displacement: 11.05 L – Emission Standard: Euro VI
Transmission	– Model: 16-speed manual / AMT optional – Gears: 16 forward, 2 reverse
Axles	– Front axle: VGD75 (7.5t loading capacity) – Rear axle: MCY16 (16t loading capacity, MAN technology)
Box Dimensions	– External: 9550mm x 2550mm x 3980mm – Internal: 9400mm x 2460mm x 3800mm
Weight	– Curb weight: 11.985 t – Gross vehicle weight: 31 t – Max payload capacity: 18.79 t
Tires	12.00R20 / 12R22.5 tubeless tires (12 pieces)
Fuel Tank	600L / 800L optional
Braking	WABCO ABS with disc brakes + EBS + ASR
Frame	High-strength double-layer frame (300x80x8+5 mm)
Cab	– Howo MAX wide-body sleeper cab – Air suspension seat with heating/ventilation – Automatic air conditioning – 12-inch touchscreen multimedia system – Electronic stability control (ESC)
Electrical System	24V, CAN bus with intelligent diagnostics
Steering	ZF hydraulic power steering with variable ratio
Performance	– Max speed: 89 km/h – Gradeability: ≥28% – Minimum turning radius: 10.5 m

Gallery

The highly cost-effective HOWO-MAX offers you exceptional comfort, reliability, and economic benefits. Its meticulous design not only enhances the driving experience but also optimizes operating costs, making it the ideal choice for efficient transportation.
