Sinotruck Howo Lowbed Semi Trailer

Overview

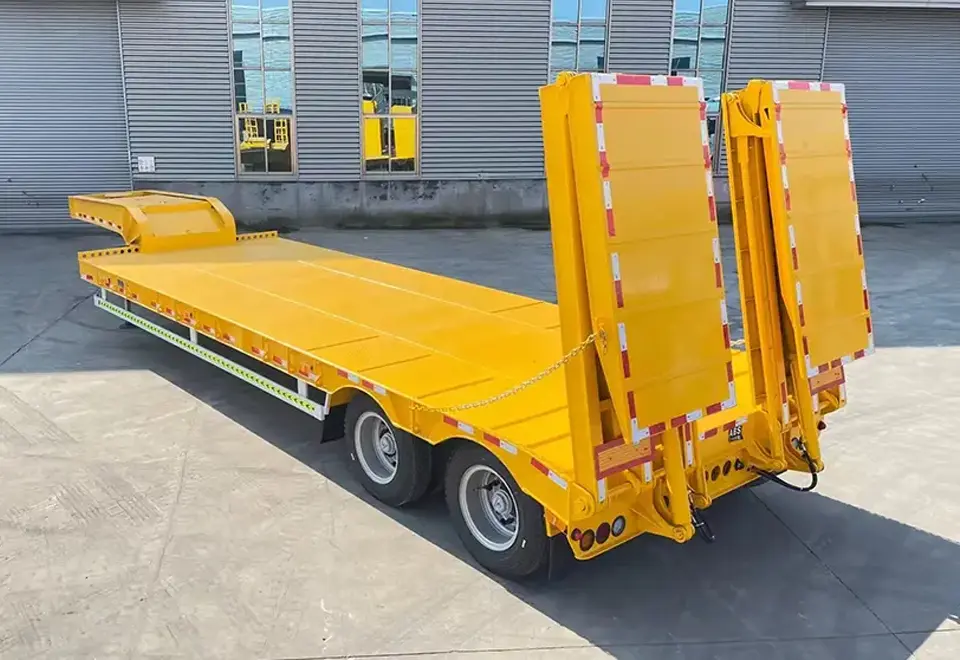

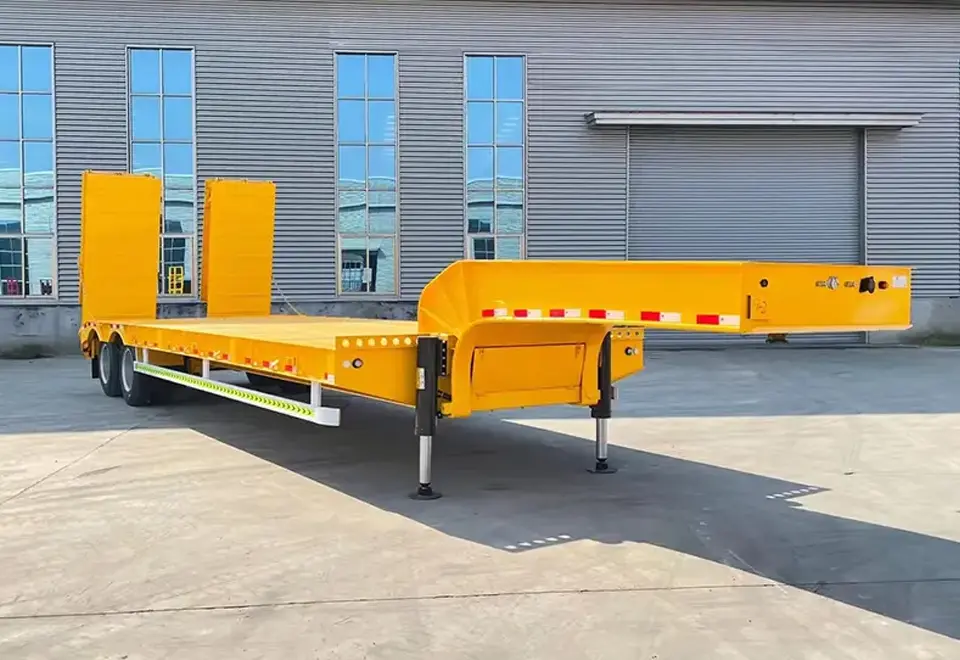

Sinotruck Howo Lowbed Semi Trailer: Heavy-Duty Transport Solution for Oversized Cargo

The Sinotruck Howo Lowbed Semi Trailer is a specialized heavy-duty transportation solution designed to work seamlessly with SINOTRUK’s Howo truck models. Manufactured by top-tier Chinese manufacturers, these semi trailers are engineered to carry oversized and heavy cargo such as construction machinery, mining equipment, and industrial components, meeting the rigorous demands of construction, mining, and heavy logistics operations worldwide.

Robust Construction: Built with high-quality high tensile steel and advanced manufacturing technology to withstand extreme loads and harsh operating conditions
Low-Profile Design: Low deck height enhances stability during transport and allows for taller cargo to be carried without exceeding height restrictions
Versatile Configurations: Multiple axle configurations and extendable options to accommodate different cargo sizes and weights
Customization Options: Tailorable dimensions, materials, and features to meet specific operational requirements and regional regulations

Why Choose Sinotruck Howo Lowbed Semi Trailer?

Proven Durability: Built to withstand the most demanding operating conditions with reinforced high tensile steel chassis
High Capacity: Ability to carry up to 120 tons makes it ideal for ultra-heavy-duty applications
Cost-Effective: Competitive pricing with low maintenance costs compared to international brands
Customization Expertise: Ability to tailor trailers to specific industry needs and regional regulatory requirem

Specifications

SINOTRUCK HOWO LOWBED SEMI TRAILER
Product Type & Model	2 Axle Lowbed Semi-Trailer
Main Chassis Material	Q345 material “I” profile is produced with gas welding, it has high-quality strength, produced according to the 98/91 EEC standards (Optional special steel for light weight design)
Chassis Floor Material	Structurally reinforced sheet base, the top of the wheels in 9.240 mm (for 3-axle type) platform length are drop-patterned steel and the rest of the platform has hardwood cover with 45 mm thickness
Chassis Extension	N/A (Optional chassis extension with any length in technical limits)
External Length	12500 mm (for 3-axle type) (Optional design with any size)
Gooseneck Length	3000 mm (for 3-axle type) (Optional design with any size)
Total Height from Ground	3.500 mm (The maximum height is variable according to the slope of the ramp in its open position)
Semi-Trailer Platform Height	Optional design from 900 mm to 1200 mm
Total Width	3000 mm – If side extension brackets available + 600 mm (Optional design with any size)
Semi Trailer Tare Weight	8.5 Tons (for 3-axle type) (Varies with optional properties design)
Semi Trailer Gross Weight	51 Tons (Optional design up to 72 tons, for 3-axle type)
Steering System	Self-steering (Optional mechanical or hydraulic steering system)
Semi Trailer Axle Specification
Number of Axles	2-3-4-5-6-7-8 axles
Axle Brake Type	Drum brake type (Optional disc brake type)
Each Axles Capacity	13 tons capacity (Optional up to 25 tons)
Each Sequence Twin/Single Wheel	Twin wheel (Depends on tire dimension)
Number of Liftable Axles and Position	Only front axle as standard
Number of Steered Axles and Position	Optional other options
Type of Steered Axles	Optional mechanical or hydraulic steering
Semi Trailer Suspension Equipment
Suspension Type	Air suspension and equipment’s (Optional any type)
Trailer Tires & Rims Specifications
Tire Dimensions	245/70R17.6 dimension (Optional any compatible size)
Other Compatible Tire Sizes	235/75R17.5 – 245/70R17.5 – 295/60R22.5 – 12R22.5 – 315/80R22.5 or any size within compatible
Semi Trailer Brake System
Air Line	Standard Dual circuit brake hardware
Brake System	EBS, 2S/2M (Optional 4S/3M or 4S/4M) WABCO or KNORR brand (Optional only ABS System)
Extension Brake Module	If chassis extension available, additional air and electrical signal accelerator hardware
Semi Trailer Electrical Equipment
Electrical Input Voltage	Standard 24V, optional 12V
Socket Type	Standard 7 (optional 15 pins) NATO type or any type distribution cable
Additional Electrical Connection	Directly battery connection sockets (24V, + and -) in front of the gooseneck for the power unit
Ex-Proof Compatibility	Available as optional
Lighting Functions	Brake, signal, stop, reversing and fog lights, side lights, reversing lights, license plate lights
Reflectors	Reflector application suitable for traffic regulations
Blackout Lambs	Available as optional
Rotating Lamp	Rotating lamp for warning
Other Standard Equipment
King Pin	50#/90#
Landing Legs	Telescopic landing gears mechanical with two speeds, static 50 tons capacity
Additional Supporting Legs	Additional mechanical lockable legs at rear as optional
Side Extension Brackets	25-35 cm and lockable side extension brackets at each side as optional
Ro-Ro Rings	6 + 6 ro-ro connection rings at each sides as optional
Safety Link of Rear Ramp	Easily removable safety connection
Lockable Cabinets	1 lockable cabinet (optionally 2) on gooseneck
Spare Tire Holder	1 spare tire holder (optionally 2) in front of the gooseneck
Fire Extinguisher Cabinet	1 unit fire extinguisher tube and cabinet
