Sinotruck Howo Dump Semi Trailer

Model: Rear Dump Semi Trailer

King Pin Options: HOWO Series

Payload Capacity: Up to 80 tons

Axle Configuration:: Primarily 2-6 axle

Dimensions: 11700x2500x3800mm

Leave A Message

Overview
Specifications
Gallery

Overview

Howo Truck: High-Capacity Transport Solution for Heavy Cargo

The Sinotruck Howo Dump Semi Trailer is a robust heavy-duty transportation solution designed to work seamlessly with SINOTRUK’s Howo truck models. Manufactured with high-quality materials and precision engineering, these semi trailers are engineered to meet the rigorous demands of construction, mining, and heavy cargo transportation operations worldwide.

Robust Construction: Built with high-quality steel and advanced manufacturing technology to withstand extreme loads and harsh operating conditions
High Payload Capacity: Engineered to carry heavy loads up to 80 tons, making it ideal for construction and mining applications
Efficient Unloading: Features hydraulic lift systems for quick and reliable cargo unloading, enhancing operational efficiency
Customization Options: Tailorable dimensions, materials, and features to meet specific operational requirements and regional regulations
Advanced Safety Features: Equipped with reliable braking systems and secure tie-down points for safe transport of heavy cargo

Why Choose Sinotruck Howo Dump Semi Trailer?

Proven Durability: Built to withstand the most demanding operating conditions with reinforced chassis and high-quality steel construction
High Capacity: Ability to carry up to 80 tons makes it ideal for heavy-duty applications
Cost-Effective: Competitive pricing with low maintenance costs compared to international brands
Customization Expertise: Ability to tailor trailers to specific industry needs and regional regulatory requirements

Specifications

SINOTRUCK HOWO DUMP SEMI TRAILER
Outside Dimension	11700x 2500x 3800mm
Payload	Max.80T capacity
Lifting System	HYVA brand oil cylinder 202 model
Main Beam	Q345B carbon steel, ‘H” type
Frame Beam(Heavy duty)	Upper and lower plate is 16mm and 18mm, Double middle is 10+10 mm. Height is 500 mm
Box thickness	Bottom plate:8mm Side plate:6mm
Axle	4 axles 16tons BPW or FUWA
Landing Gear	JOST brand 28tons with two speeds
King Pin	2.0 or 3.5 inch
Suspension	Mechanical suspension reinforced type
Leaf Spring(Strength)	90mm(W)16mm(T)10 Layer
Tires	12R22.5, 315/80R22.5
Color/Logo	By customer demand

Gallery

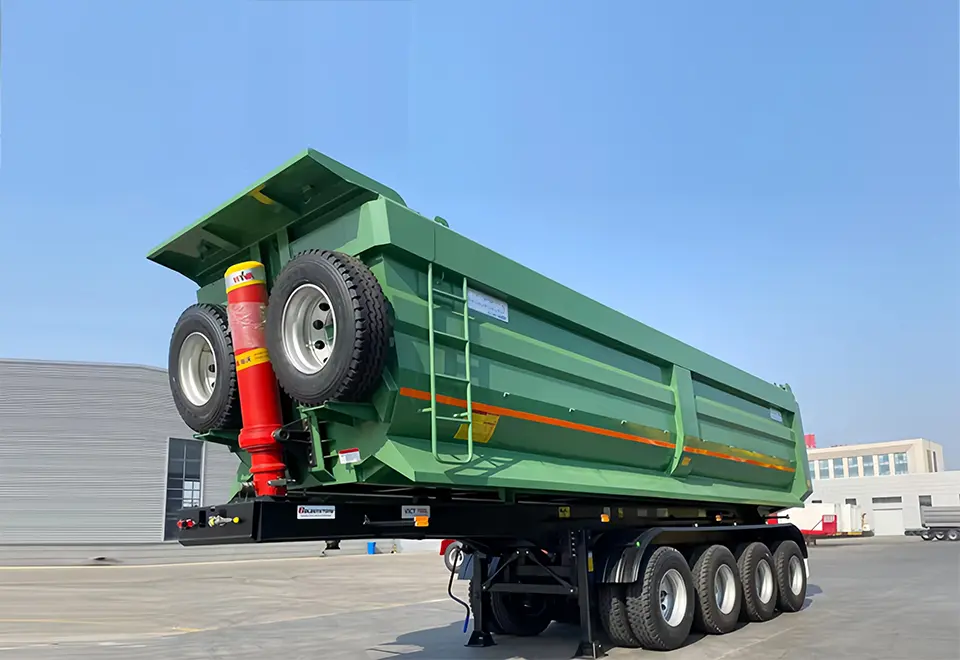

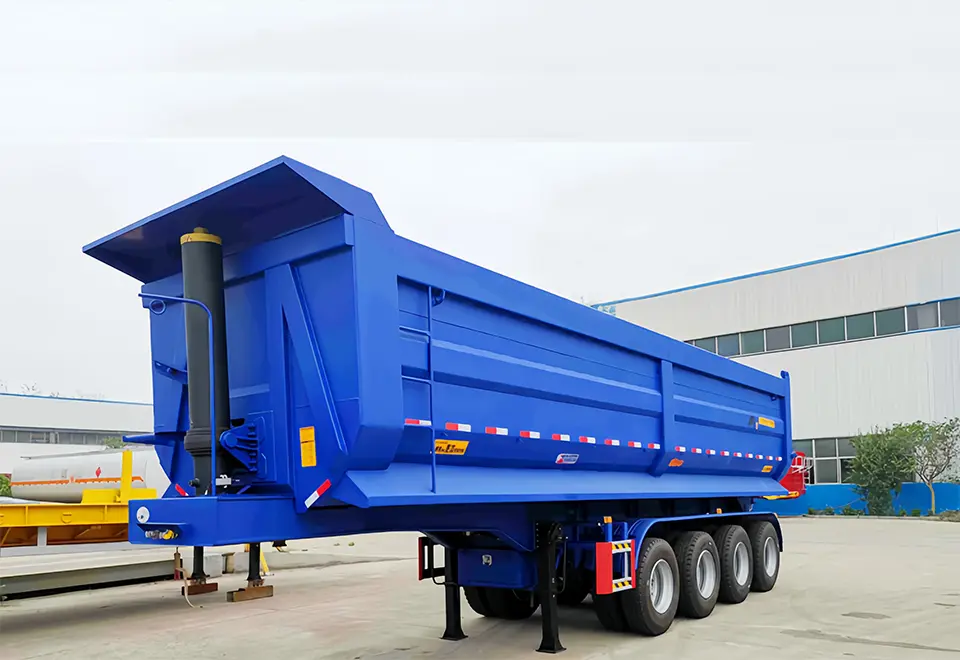

Sinotruck Howo Dump Semi Trailer -50- 80-Ton Mining & Construction Tipper Trailer
