Sinotruck Howo Container Chassis Semi Trailer

Sinotruck Howo Container Chassis Semi Trailer: Efficient Intermodal Transport Solution

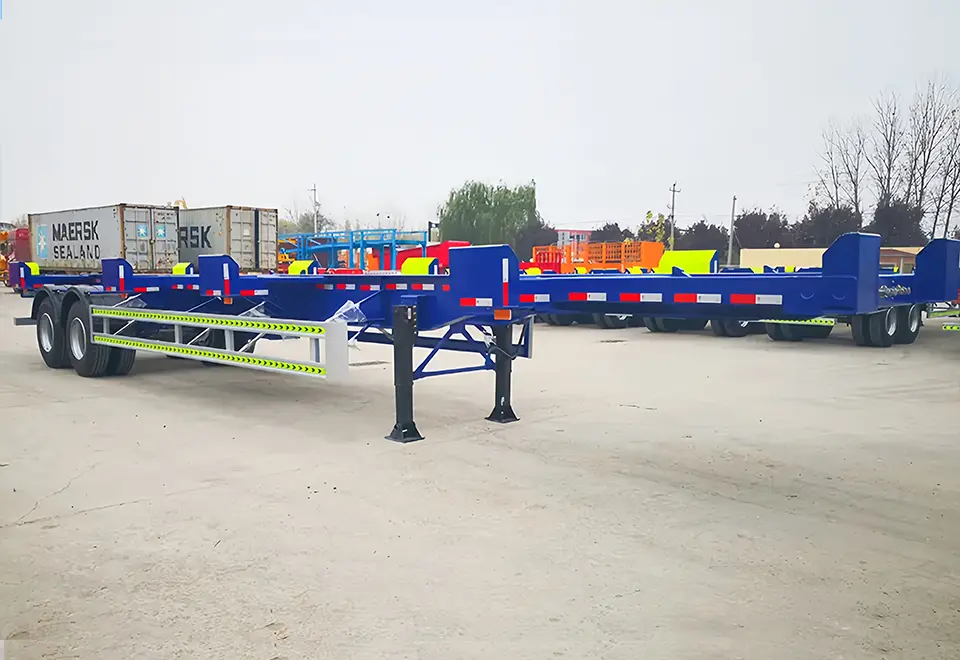

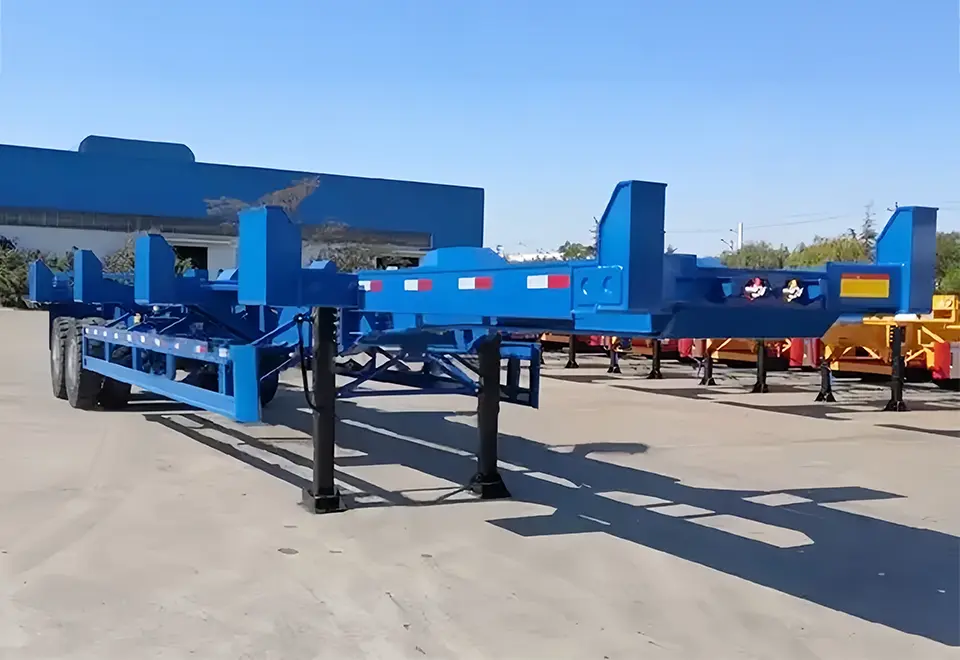

The Sinotruck Howo Container Chassis Semi Trailer is a specialized heavy-duty transportation solution designed to efficiently carry standard shipping containers. Manufactured by top-tier Chinese manufacturers, these semi trailers are engineered to meet the rigorous demands of intermodal logistics, port operations, and cross-border transportation worldwide.

Model Range: Available in multiple configurations including:
20ft Container Chassis: For standard 20-foot shipping containers
40ft Container Chassis: For standard 40-foot shipping containers
Extendable Container Chassis: For accommodating both 20ft and 40ft containers
Axle Configuration: Primarily 2-3 axle designs, with load capacity ranging from 20 to 50 tons
Dimensions: Customizable to meet regional road regulations

Construction: High-strength steel chassis with reinforced frame for durability
Payload Capacity: Up to 50 tons depending on configuration
Container Locking: Equipped with standard container twist locks for secure container attachment
Robust Construction: Built with high-quality steel and advanced
manufacturing technology to withstand extreme loads and harsh operating conditions
Intermodal Compatibility: Designed to work seamlessly with standard shipping containers and Howo tractor trucks

SINOTRUCK HOWO CONTAINER CHASSIS SEMI TRAILER
Main Chassis Material	The chassis designed in accordance with the international transportation standards. An “I” section with high resistance to allow to obtain the highest efficiency under all road and weather conditions, is manufactured with automatic tig welding machines. Under and Upper Lamas are 14 mm and main beam is 8 mm
Container Sizes	1×40’, 1x 45 Ft, 1x 30 Ft. or 2×20’ Upper Construction: Floor will be 3/4 mm steel chequred plate. If demanded side walls and front plate according to customer demands.
Semi Trailer Axle Specification
Number of Axles	2-3 axles
Axle Brake Type	Drum brake type (Optional disc brake type)
Each Axles Capacity	13 tons capacity (Optional up to 20 tons)
Each Sequence Twin/Single Wheel	Single wheel (Depends on tire dimension)
Number of Steered Axles and Position	Optional other options
Semi Trailer Suspension Equipment
Suspension Type	Leaf Spring suspension
Springs and Type	air suspension also possible
Trailer Tires & Rims Specifications
Tire Dimensions	12R22.5 (Optional any compatible size)
Total Tire & Rim Unit	With 385/65 R 22.5 option,
Other Compatible Tire Sizes	12.00R20 (Double tire size optional)
Semi Trailer Brake System
Air Line	Standard Dual circuit brake hardware
Brake System	EBS (Optional 4S/3M or 4S/4M) WABCO or KNORR brand (Optional only ABS System)
Brake Slack Adjusters	Automatic type
Semi Trailer Electrical Equipment
Electrical Input Voltage	Standard 24V
Socket Type	Standard 7 (optional 15 pins) NATO type or any type distribution cable
Ex-Proof Compatibility	Available as optional
Lighting Functions	Brake, signal, stop, reversing and fog lights, side lights, reversing lights, license plate lights
Other Standard Equipment
King Pin	50#/90#
Landing Legs	Dynamic 24 ton, static 50 tons capacity, one side controlled
Lockable Cabinets	1-2 units
Spare Tire Holder	1-2 units
Operate the shining vest	1-2 units
Water Tank	1 water tank with soap dispenser
Mudguards	3 sets of half mudguard

Sinotruck Howo Container Chassis Semi Trailer – 20/40ft Skeleton Container Transport
