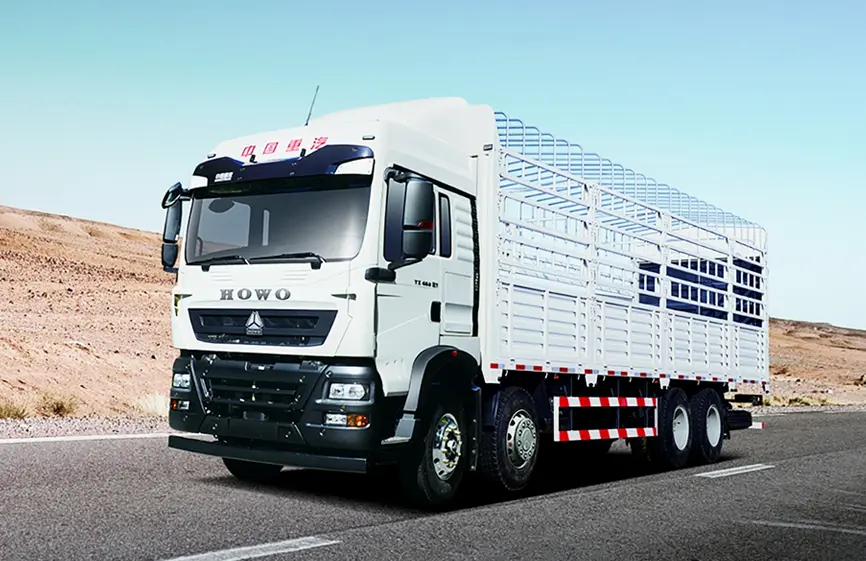

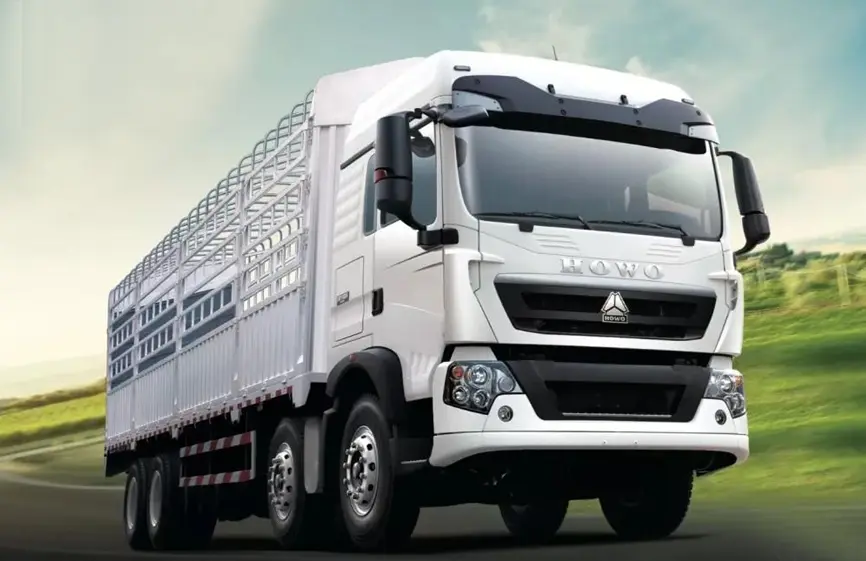

Sinotruck Howo Fence TX 8x4 Cargo Truck

Model: ZZ1317V466GE1

Engine : WP12.430E50 / MC11.430

Power : 430 HP

Transmission: HW19710

Gross vehicle weight: 31,000 kg

Leave A Message

Overview
Function
Specifications
Gallery

Overview

Sinotruck Howo TX 8×4 Fence Cargo Truck: Versatile and Reliable for Diverse Transportation Needs

The Sinotruck Howo TX 8×4 Fence Cargo Truck is a versatile heavy-duty vehicle designed for efficient and secure transportation of bulk cargo, agricultural products, construction materials, and general goods. Built with advanced technology and robust construction, this truck combines exceptional payload capacity, durability, and fuel efficiency, making it an ideal choice for urban logistics, intercity freight, and rural transportation.

Sinotruck Howo TX 8×4 Fence Cargo Truck Powerful and Efficient Performance

The Howo TX 8×4 Fence Cargo Truck is equipped with a WP12.430E50 or MC11.430 engine, delivering an impressive 430 horsepower and high torque, ensuring reliable performance even under full load. Paired with a HW19710 manual transmission (10 forward gears, 2 reverse gears), the truck provides smooth gear shifts and optimal power distribution for various road conditions. Its 8×4 drive configuration, featuring a VGD75 front axle and MCY16 rear axle (based on MAN technology), delivers exceptional traction and stability, making it suitable for challenging terrains. With a maximum speed of up to 90 km/h, the TX ensures efficient and timely deliveries.

Sinotruck Howo TX 8×4 Fence Cargo Truck Durable and Robust Construction

Constructed with a high-strength double-layer frame (300x80x8+5 mm) and a reinforced suspension system, the Howo TX 8×4 Fence Cargo Truck is built to withstand heavy loads and harsh operating conditions. With a gross vehicle weight of 31,000 kg, it offers a substantial payload capacity of up to 22,775 kg for efficient cargo transportation. The truck is fitted with 12.00R20 mining area block pattern tires or 12R22.5 tubeless tires, providing excellent durability and grip on various road surfaces. Its strengthened frame and thickened suspension further reduce maintenance costs and extend vehicle longevity, ensuring a low total cost of ownership.

Function

Excellent Ergonomic Design

All controls, instrument panels, and displays are intuitively arranged for easy access and quick information retrieval, minimizing distractions and maximizing driver focus. The pneumatically controlled steering wheel is fully adjustable for both height and angle.

MC Series Engine – SINOTRUK's Exclusive High-End Power

Experience more power with less fuel: Employing the most advanced BOSCH high-pressure common rail system, the ECU precisely controls the fuel injection process according to the engine’s operating state, achieving a maximum injection pressure of 1600 bar to ensure superior fuel atomization, increased engine power, and reduced fuel consumption.

Intuitive and User-Friendly Controls

Our clear and intuitive layout places functionally-related buttons and rotary switches together for direct, efficient, and error-free operation.

Safety At All Times

Active and passive safety protection put your safety first and keeps other pedestrains safe at anytime and anywhere.

Specifications

Category	Details
Model	ZZ1317V466GE1
Truck Name	Sinotruck How Fence TX 8×4 Cargo Truck
Drive Type	8×4
Engine	– Model: WP12.430E50 / MC11.430 – Power: 430 HP – Displacement: 11.596 L – Emission Standard: Euro V / Euro VI
Transmission	– Model: HW19710 – Type: Manual – Gears: 10 forward, 2 reverse
Axles	– Front axle: VGD75 (7.5t loading capacity) – Rear axle: MCY16 (16t loading capacity)
Dimensions	– Length x Width x Height: 12000mm x 2550mm x 3995mm – Wheelbase: 1800+4600+1350 mm – Wheelbase Options: 4200mm / 3900+1350mm
Weight	– Curb weight: 8,225 kg – Gross vehicle weight: 31,000 kg – Max payload capacity: 22,775 kg
Tires	12.00R20 (18PR) mining area block pattern tires / 12R22.5 tubeless tires
Fuel Tank	300L / 400L optional
Braking	WABCO ABS system with disc brakes
Frame	High-strength double-layer frame (300x80x8+5 mm)
Cab	– TX-F-Cab with 1 sleeper – Air conditioning, air suspension seat – 4-point full floating air suspension – Central door lock, electric window lifter, power mirror
Electrical System	24V, CAN bus intellectual electronic control system
Steering	ZF hydraulic power steering system

Gallery

The HOWO-TX cab is designed with the driver in mind, prioritizing comfort and convenience to enhance both work and living conditions. Every detail reflects a deep understanding of their needs.
