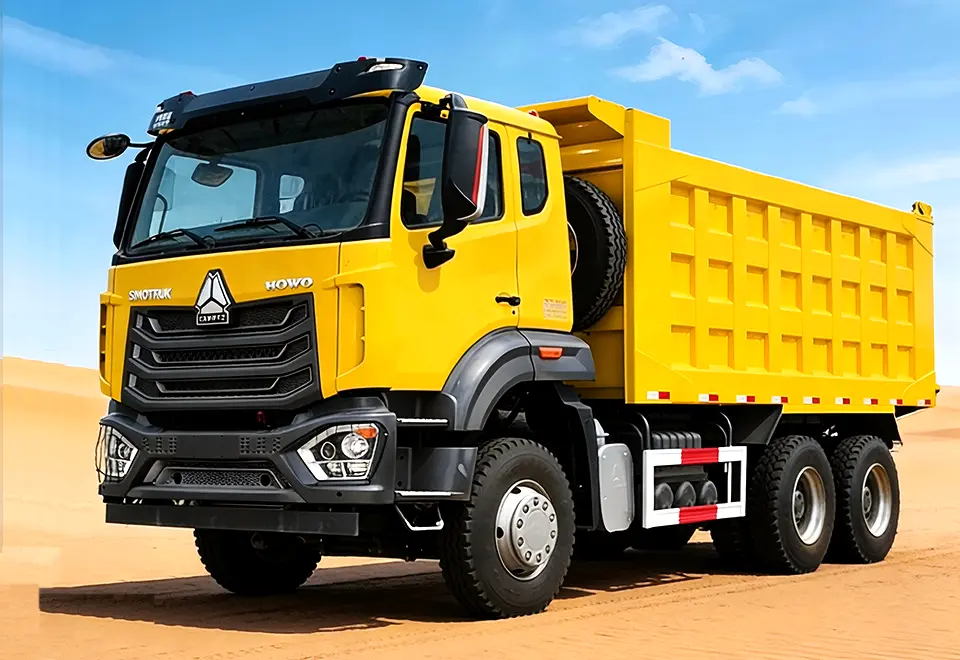

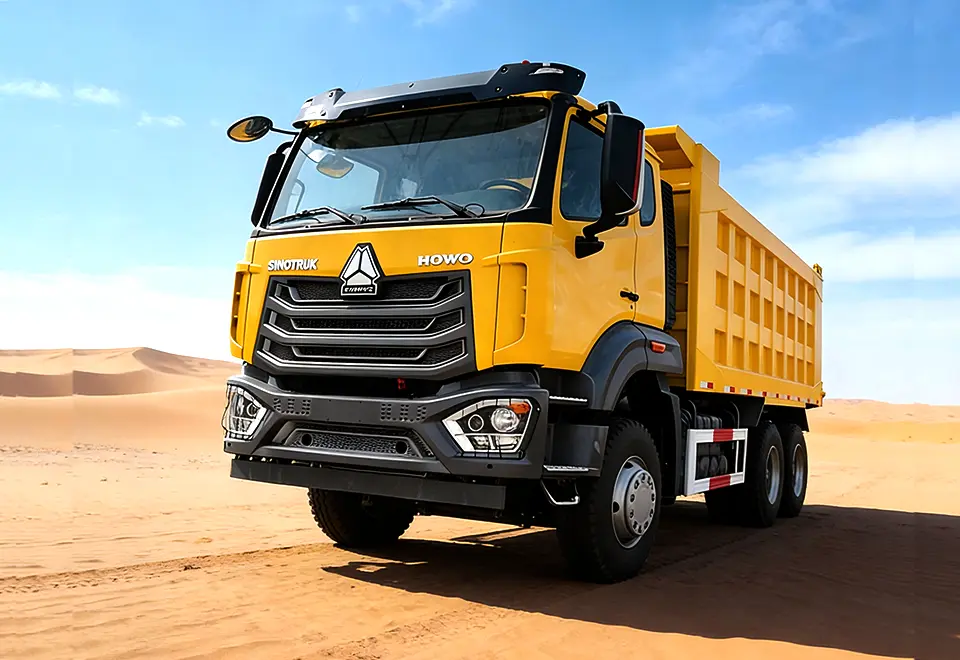

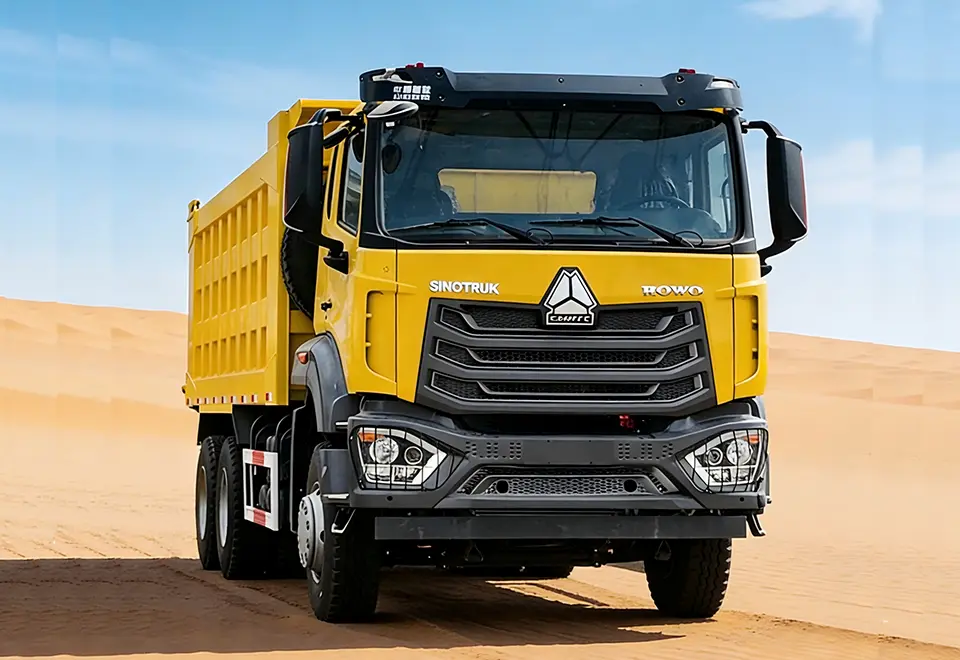

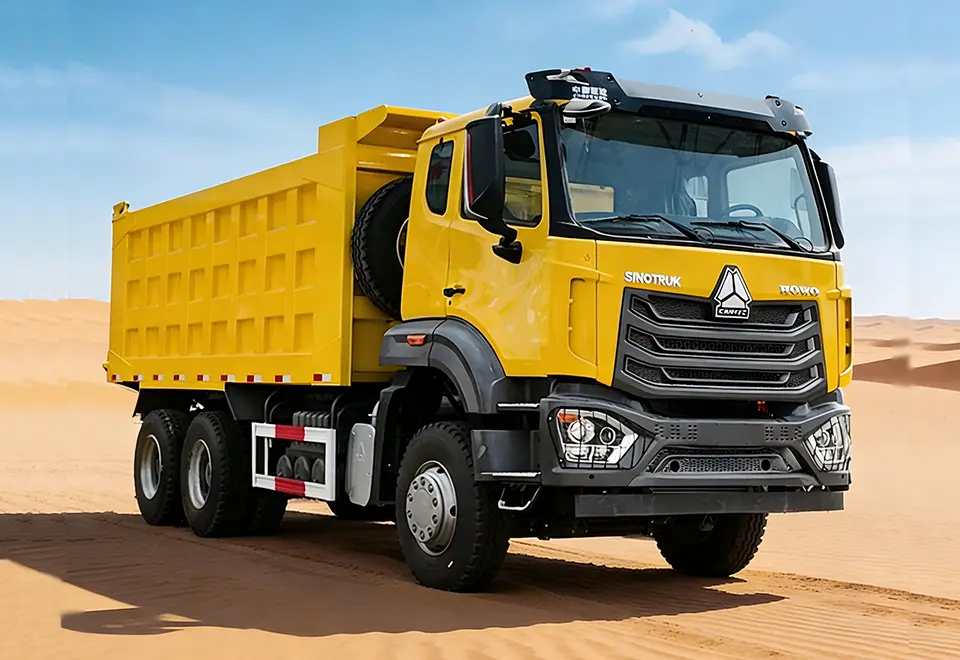

Second Hand Howo NX 6X4 Tipper Truck

Second Hand Sinotruk Howo NX 6X4 Tipper Truck: High-Performance Workhorse for Demanding Operations

The Sinotruk Howo NX 6X4 Tipper Truck is a rugged heavy-duty vehicle designed for construction, mining, and infrastructure projects. Known for its durability, powerful engine, and efficient payload capacity, used models in China offer cost-effective solutions for businesses seeking reliable performance without the price tag of a new truck.

Horsepower: 371HP/380HP/430HP (Weichai WD615 series diesel engine)
Emission Standards: Euro 2/Euro 3 (most used models comply with domestic and export requirements)
Drive Configuration: 6×4 (3 axles, 10 wheels) for optimal traction on rough terrain
Payload Capacity: 25-35 tons, with a cargo box volume of 12-18 cubic meters
Transmission: 10-speed manual gearbox (SINOTRUK HW19710) for smooth shifting under heavy loads
Dimensions: 8545mm (length) × 2496mm (width) × 3170mm (height)
Chassis Features: Reinforced frame, heavy-duty front/rear axles, and 12.00-20 radial tires for durability

MC Series Engine – SINOTRUK's Exclusive High-End Power

Experience more power with less fuel: Employing the most advanced BOSCH high-pressure common rail system, the ECU precisely controls the fuel injection process according to the engine’s operating state, achieving a maximum injection pressure of 1600 bar to ensure superior fuel atomization, increased engine power, and reduced fuel consumption. Durable and Reliable: The cylinder block is constructed from vermicular graphite cast iron, offering increased rigidity and strength, enabling thinner walls, and reducing engine weight. Compared to traditional gray cast iron, vermicular graphite cast iron offers a 75% increase in tensile strength, a 40% increase in elastic modulus, and a 100% increase in fatigue strength.

Axles - Carry More, Cost Less

The MC series drive axles and V series steering axles are engineered based on advanced German axle technology and improved with the latest technical standards, offering higher transmission efficiency, superior heat dissipation, increased load capacity, and extended service life to accommodate various road conditions. The main reducer utilizes an Oerlikon gear, offering a 10% increase in strength and improved transmission efficiency

SECOND HAND HOWO NX 6X4 TIPPER TRUCK
Production Year	Used Truck
Cabin	H77L cab, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver’s seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer,with 4-point support fully floating suspension + shock absorber. High steel bumper, Inter-cooler Protection.
Engine	Diesel 4-stroke direct injection diesel engine Engine model: WD615.47, 371HP 6-cylinder in-line with water cooling, turbo-charging and intercooling Displacement:9.726L
Transmission	HW19710, 10F & 2R, with HW50 Direct PTO Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)
Steering	ZF power steering, model ZF8098, hydraulic steering with power assistance
Front Axle	VGD95, 1*9500 KGS
Front Axle	Steering with double T-cross section beam
Rear Axle	MCP16ZG, 2×16000 KGS Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles.
Propeller Shaft	Double universal joint propeller shaft with gear-shaped coupling flange
Chassis	Front suspension:11semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer
Brake	Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake
Electrics	Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Fuel Tank	300L
Tire	12.00R20, Radial (steel wire) Tires . 10+1 Pics
Cargo body	5400x2300x1450mm. 18 Cubic Meters
Color	Optional
Overall Dimension	860025503450 mm

Second Hand Howo NX 6X4 Tipper Truck | Used Heavy Duty Dump Truck for Sale
