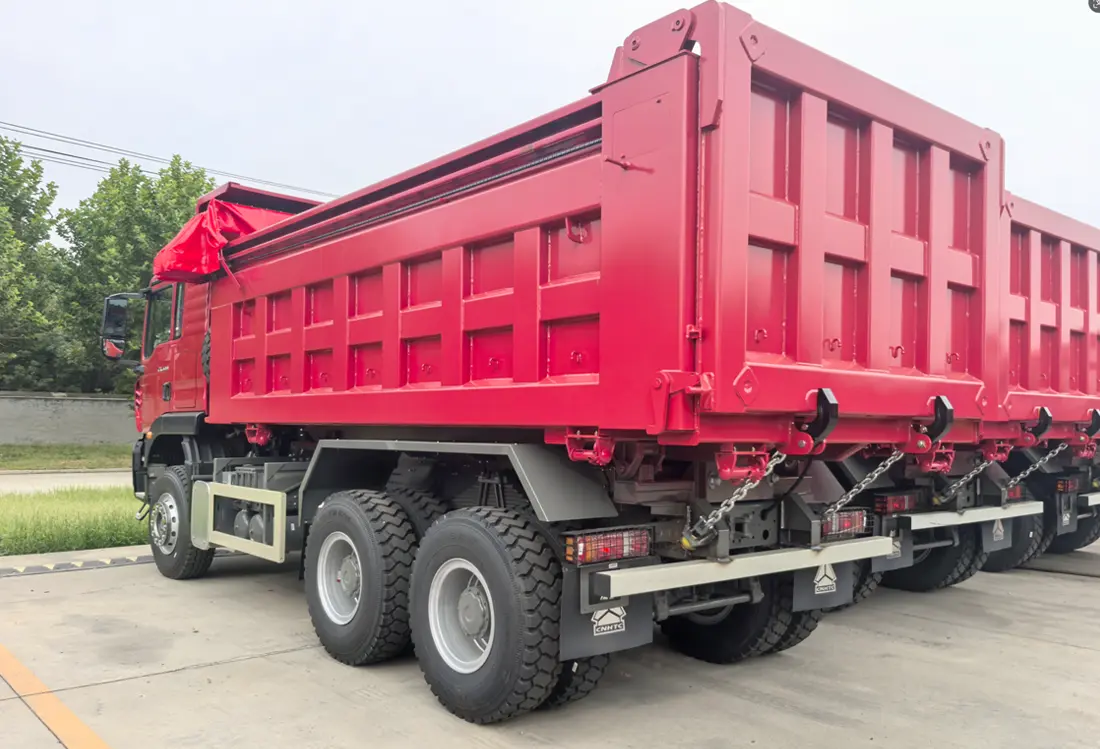

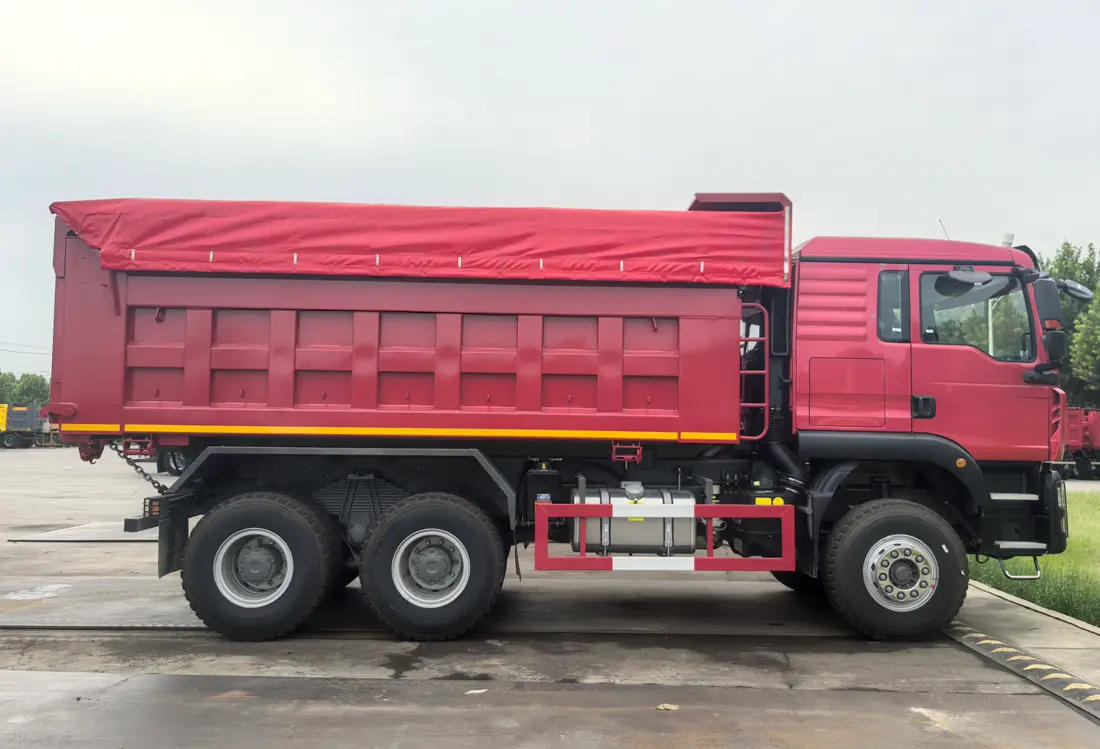

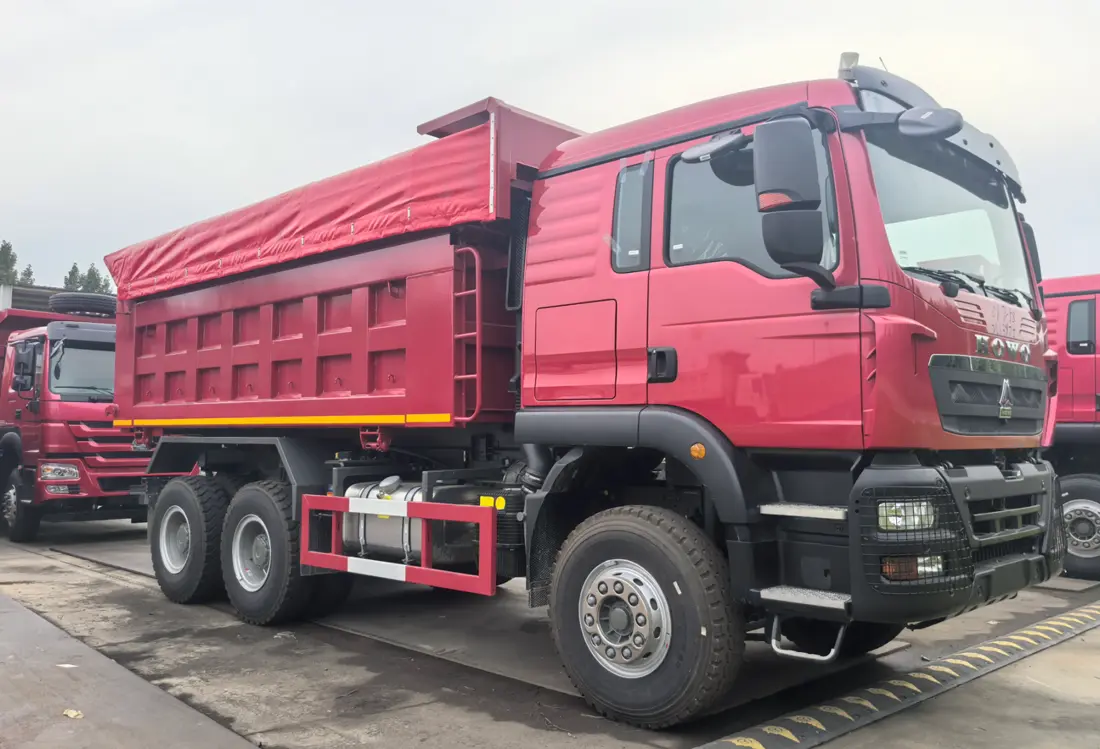

Second Hand Howo TX 6X4 Tipper Truck With Tarp

The Second Hand Sinotruk HOWO TX 6×4 Tipper Truck with Tarp is a premium, “urban-ready” heavy-duty workhorse designed for high-efficiency construction and infrastructure projects. As the technologically advanced successor to the classic HOWO7, the TX series integrates German MAN technology to provide a more durable, fuel-efficient, and environmentally compliant second-hand solution.

Second Hand Howo TX 6X4 Tipper Truck With Tarp Key Technical Highlights:

Automatic Tarpaulin System: Equipped with a robust electric or manual tarp system, this tipper is ideal for urban hauling. The cover prevents dust, debris, and material spillage, ensuring compliance with strict environmental and safety regulations in city centers.
MAN Technology Powertrain: Typically powered by Sinotruk MC series or Weichai WP series engines (340HP–440HP). These engines are renowned for their 1.5 million km B10 life and exceptional torque, maintaining high performance even after years of service.

Heavy-Duty Chassis: Featuring a reinforced 6×4 (10-wheeler) configuration with VGD95 front axles and MCP16 rear reduction axles. This setup ensures a stable payload capacity of 20–30 tons on harsh terrains.
Premium TX-F Cabin: The cabin offers a “mobile home” experience with an air-suspension driver’s seat, four-point cab suspension for reduced vibration, and superior noise insulation (NVH) to minimize driver fatigue.

Why Choose a Second Hand Howo TX 6X4 Tipper Truck With Tarp?

Purchasing a second-hand HOWO TX allows fleet owners to access next-generation reliability and a modern interior at a significantly lower cost than a new unit. With the added value of a pre-installed tarp system, this truck is “ready-to-work” for municipal contracts and large-scale earthmoving.

MC Series Engine – SINOTRUK's Exclusive High-End Power

Experience more power with less fuel: Employing the most advanced BOSCH high-pressure common rail system, the ECU precisely controls the fuel injection process according to the engine’s operating state, achieving a maximum injection pressure of 1600 bar to ensure superior fuel atomization, increased engine power, and reduced fuel consumption. Durable and Reliable: The cylinder block is constructed from vermicular graphite cast iron, offering increased rigidity and strength, enabling thinner walls, and reducing engine weight. Compared to traditional gray cast iron, vermicular graphite cast iron offers a 75% increase in tensile strength, a 40% increase in elastic modulus, and a 100% increase in fatigue strength.

Transmission - Always in the Right Gear

The HW series transmission incorporates a globally advanced transmission design, employing a double countershaft main transmission coupled with a planetary gear auxiliary transmission. This results in simpler, more reliable, and more durable PTO and gear shifting operations.

Axles - Carry More, Cost Less

The MC series drive axles and V series steering axles are engineered based on advanced German axle technology and improved with the latest technical standards, offering higher transmission efficiency, superior heat dissipation, increased load capacity, and extended service life to accommodate various road conditions. The main reducer utilizes an Oerlikon gear, offering a 10% increase in strength and improved transmission efficiency

Chassis: A Good Foundation

The HOWO-TX chassis is constructed from high-strength steel, providing exceptional resistance to compression, torsion, and impact. The frame is engineered to handle both the heavy loads of cargo transport and the intense vibrations encountered on challenging roads, providing the strength necessary for vehicle stability and long-lasting durability. A variety of suspension configurations are available, allowing users to select the optimal setup for their specific transportation needs, thereby enhancing operational efficiency and economic benefits.

Category	Main Specifications (Refurbished Units)
Basic Information	– Model: SINOTRUK HOWO TX 6×4 Tipper Truck With Tarp – Condition: Used (Refurbished) – Emission Standard: Euro 2 / Euro 3 / Euro 4 optional – Application: Construction material transport (sand/gravel/cement), mining waste disposal, urban infrastructure projects, and bulk cargo delivery requiring dust control – Warranty: 6-12 months for main components (engine, transmission, hydraulic system, tarp mechanism)
Cargo Box & Tarp System	– Cargo Box Type: U-shaped high-strength steel box with anti-corrosion coating, designed for fast and complete material discharge. – Cargo Box Capacity: 20-25 cubic meters – Cargo Box Dimensions (L×W×H): 6200-8000 mm × 2500 mm × 1500-1800 mm – Tarp System: Automatic electric or hydraulic roll-up tarp, providing dust control and protecting cargo from weather. Refurbished units include tarp inspection, repair, or replacement if damaged.
Engine Performance	– Engine Type: Weichai WP10.350E32 350 HP (257 kW) / WP12.400E40 400 HP (294 kW) diesel engine – Torque: 1600-1900 Nm @ 1200-1600 rpm – Fuel Efficiency: 30-40 L/100 km depending on load and working conditions – Cooling System: Water-cooled with radiator and fan for efficient heat dissipation
Chassis & Transmission	– Drive Configuration: 6×4 (6 wheels, 4 driven axles) – Transmission: SINOTRUK HW19710 10-speed manual transmission with synchronized gear shifts – Axles: 9.5-ton front axle with drum brakes, dual 16-ton rear axles with differential locks – Suspension: Multi-leaf spring suspension (10 leaves front / 12 leaves rear) with shock absorbers – Wheels & Tires: 12.00R20 radial tires with reinforced sidewalls; refurbished units typically include new or near-new tires
Hydraulic Tipping System	– Tipping Mechanism: Hydraulic cylinder system with a lifting angle of up to 45 degrees – Tipping Time: 10-15 seconds from horizontal to fully raised – Lowering Time: 8-12 seconds from fully raised to horizontal – Refurbishment: Hydraulic system inspection, including pump testing, seal replacements, and leak checks to ensure reliable operation
Dimensions & Weight	– Overall Dimension (L×W×H): 8300-10500 mm × 2500 mm × 3450-3900 mm – Curb Weight: 12,500-15,000 kg – Gross Vehicle Weight (GVW): 25,000-35,000 kg – Payload Capacity: 10,000-20,000 kg – Wheelbase: 3825+1350 mm
Safety & Comfort Features	– Cab Design: HOWO TX high-roof sleeper cab with air-suspended driver seats, air conditioning, power windows, and a multi-function steering wheel – Safety Systems: Anti-lock braking system (ABS), electronic stability control (ESC), rearview camera with parking sensors, fire extinguisher, and emergency brake system – Tarp Safety: Tarp mechanism includes safety sensors to prevent operation while the truck is moving or the box is not in the correct position
Refurbishment Standards	– Mechanical Inspection: Full engine diagnostics, transmission service, brake system overhaul, and hydraulic tipping mechanism testing – Cargo Box & Tarp Maintenance: Box cleaning, anti-corrosion coating inspection, leak testing, and tarp mechanism repair or replacement – Cosmetic Upgrade: Cab interior cleaning, exterior repainting, and replacement of worn tires, mirrors, or lights – Documentation: Service records, inspection report, and emission compliance certificate provided
Market Price Range	– Price: US $15, 000 -$ 25,000, depending on year of manufacture, mileage (100,000-300,000 km), condition, and equipment configuration – Price Variation: Trucks with automatic tarp systems, newer engines, or lower mileage may cost 10-15% more than standard units

The HOWO-TX handles any task with ease – from long-haul logistics and regional distribution to specialized operations and even engineering projects – making it the perfect choice for addressing a wide range of transportation challenges.
