Sinotruck Howo TX Flatbed Cargo Truck

Model: ZZ1317V466GE1

Engine : WP12.400

Power : 400 HP

Transmission: HW19710

Gross vehicle weight: 31,000 kg

Leave A Message

Overview
Function
Specifications
Gallery

Overview

Sinotruck Howo TX Flatbed Cargo Truck: Versatile and Efficient for Heavy-Duty Transportation

The Sinotruck Howo TX Flatbed Cargo Truck is a robust and versatile heavy-duty vehicle designed for efficient transportation of containers, construction materials, bulk goods, and oversized cargo. Built with advanced technology and reinforced construction, this truck combines exceptional payload capacity, durability, and fuel efficiency, making it an ideal choice for urban logistics, long-distance freight, and construction site operations.

Sinotruck Howo TX Flatbed Cargo Truck Powerful and Efficient Performance

The Howo TX Flatbed Cargo Truck is equipped with a WP12.400 engine, delivering an impressive 400 horsepower and high torque, ensuring reliable performance even under full load. Paired with a 10-speed manual transmission, the truck provides smooth gear shifts and optimal power distribution for various road conditions. Its 8×4 drive configuration, featuring heavy-duty axles, delivers exceptional traction and stability, making it suitable for challenging terrains. With a maximum speed of up to 90 km/h, the TX ensures efficient and timely deliveries.

Sinotruck Howo TX Flatbed Cargo Truck Fuel Efficiency and Environmental Compliance

With optimized engine technology and aerodynamic design, the Howo TX Flatbed Cargo Truck delivers excellent fuel efficiency, helping operators reduce operational costs. It complies with Euro V / Euro VI emission standards, making it suitable for use in regions with strict environmental regulations. The truck is equipped with a 300L / 400L optional fuel tank, providing a long driving range between refuels, further enhancing operational efficiency. Its efficient powertrain and lightweight design contribute to lower fuel consumption, minimizing its carbon footprint.

Sinotruck Howo TX Flatbed Cargo Truck Customization and After-Sales Support

The Howo TX Flatbed Cargo Truck offers flexible customization options to meet specific operational needs, including adjustable wheelbase, different engine power outputs, and optional features such as a hydraulic lift gate or side panels. Sinotruck provides comprehensive after-sales service, including a one-year warranty, lifelong technical support, and a global network of service centers. The company’s overseas engineers are available for on-site training and technical assistance, ensuring optimal performance and reliability for customers worldwide.

Function

Excellent Ergonomic Design

All controls, instrument panels, and displays are intuitively arranged for easy access and quick information retrieval, minimizing distractions and maximizing driver focus. The pneumatically controlled steering wheel is fully adjustable for both height and angle.

Intuitive and User-Friendly Controls

Our clear and intuitive layout places functionally-related buttons and rotary switches together for direct, efficient, and error-free operation.

MC Series Engine – SINOTRUK's Exclusive High-End Power

Experience more power with less fuel: Employing the most advanced BOSCH high-pressure common rail system, the ECU precisely controls the fuel injection process according to the engine’s operating state, achieving a maximum injection pressure of 1600 bar to ensure superior fuel atomization, increased engine power, and reduced fuel consumption.

Transmission - Always in the Right Gear

The HW series transmission incorporates a globally advanced transmission design, employing a double countershaft main transmission coupled with a planetary gear auxiliary transmission. This results in simpler, more reliable, and more durable PTO and gear shifting operations.

Specifications

Truck Name	Sinotruck How0 TX Flatbed Cargo Truck
Model	ZZ1317V466GE1
Drive Type	8×4
Engine	– Model: WP12.400 – Power: 400 HP – Displacement: 11.596 L – Emission Standard: Euro V / Euro VI
Transmission	– Model: HW19710 – Type: Manual – Gears: 10 forward, 2 reverse
Axles	– Front axle: VGD75 (7.5t loading capacity) – Rear axle: MCY16 (16t loading capacity)
Dimensions	– Length x Width x Height: 12000mm x 2550mm x 3995mm – Wheelbase: 1800+4600+1350 mm – Flatbed Length x Width: 7000mm x 2500mm
Weight	– Curb weight: 8,225 kg – Gross vehicle weight: 31,000 kg – Max payload capacity: 22,775 kg
Tires	12.00R20 (13 pieces) mining area block pattern tires / 12R22.5 tubeless tires
Fuel Tank	300L / 400L optional
Braking	WABCO ABS system with disc brakes
Frame	High-strength double-layer frame (300x80x8+5 mm)
Cab	– TX-F-Cab with 1 sleeper – HW76 cabin with air conditioning, air suspension seat – 4-point full floating air suspension – Central door lock, electric window lifter, power mirror
Electrical System	24V, CAN bus intellectual electronic control system
Steering	ZF hydraulic power steering system

Gallery

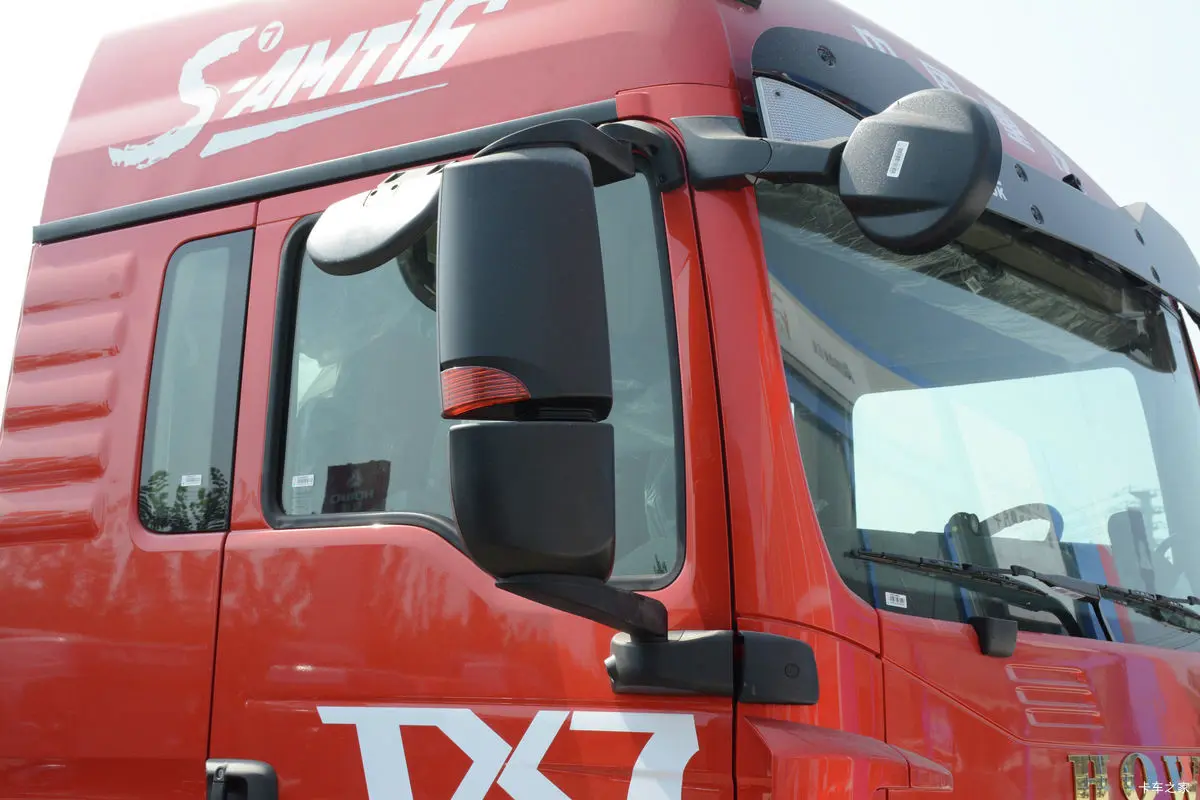

The HOWO-TX cab is designed with the driver in mind, prioritizing comfort and convenience to enhance both work and living conditions. Every detail reflects a deep understanding of their needs.
