Sinotruk Howo-7 8x4 Dump Truck

Model: ZZ3317V3567B1

Engine model: WD615.47

Transmission: HW19710, 10F & 2R

Front Axle: MCP16ZG, 2*16000KG

Overall Dimension: 10800*2550*3500

Leave A Message

Overview
Function
Specifications
Gallery

Overview

Sinotruk Howo-7 8×4 Dump Truck: Ultra-High Payload Heavy-Duty Workhorse

The Sinotruk Howo-7 8×4 Dump Truck is an ultra-high payload heavy-duty commercial vehicle engineered to handle the most demanding construction, mining, and earthmoving tasks. As a flagship model in SINOTRUK’s product line, it combines exceptional power, reinforced durability, and operator-centric design to deliver unmatched performance in challenging working conditions, particularly in emerging markets like Africa where it holds a leading market share.

Powerful and Adaptable Engine: The Weichai diesel engine delivers high torque at low RPMs, ensuring excellent performance even on steep gradients and uneven surfaces. Its strong fuel adaptability makes it ideal for operating in regions with variable fuel quality.
Reinforced Chassis and Axles: Built with heavy-duty components, the Howo-7’s chassis and axles are designed to withstand extreme loads and harsh operating conditions, minimizing downtime and maintenance costs. It has passed rigorous tests including -40℃ low temperature, 50℃ high temperature, high-altitude load, and 1 million km durability.
Efficient Hydraulic System: The ventral lift hydraulic system provides smooth and reliable cargo unloading, reducing cycle times and improving productivity on job sites.

Engine: Weichai WD615 series 371-380HP diesel engine, renowned for high reliability, strong power, and low fuel consumption
Transmission: HW19710 10-speed manual gearbox (SINOTRUK’s own HOWO series), ensuring smooth shifting and durable performance
Drive Configuration: 8×4 (four axles, four driving wheels) with robust 16-ton rear axles and 5.73 ratio for heavy-load hauling
Payload Capacity: 31-40 tons, with a spacious cargo box customizable up to 18.63 m³
Cargo Box: High-strength steel construction with 8mm bottom and 6mm side thickness, available with front/middle lift hydraulic system
Cabin: European-inspired HOWO classic cab with single berth, air conditioning, and left-hand drive, designed for operator comfort during long shifts

Function

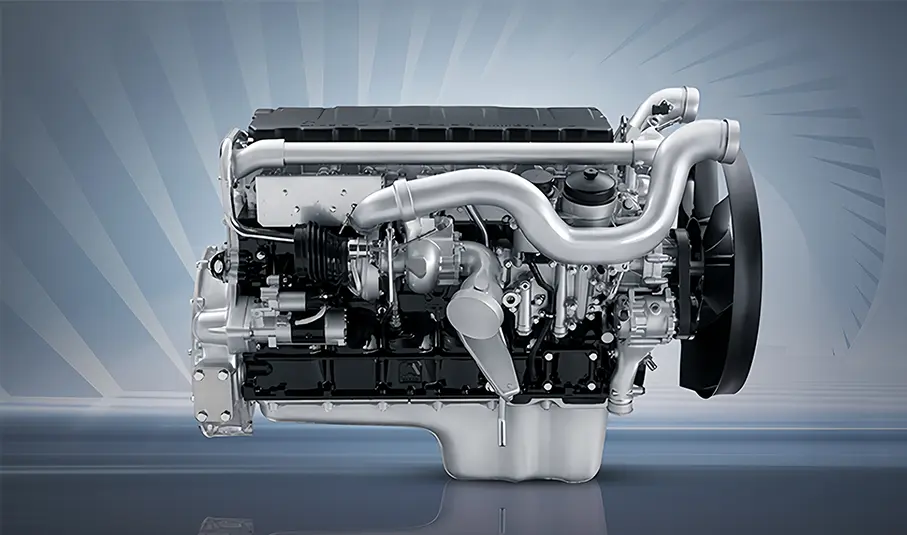

MC Series Engine – SINOTRUK's Exclusive High-End Power

Experience more power with less fuel: Employing the most advanced BOSCH high-pressure common rail system, the ECU precisely controls the fuel injection process according to the engine’s operating state, achieving a maximum injection pressure of 1600 bar to ensure superior fuel atomization, increased engine power, and reduced fuel consumption. Durable and Reliable: The cylinder block is constructed from vermicular graphite cast iron, offering increased rigidity and strength, enabling thinner walls, and reducing engine weight. Compared to traditional gray cast iron, vermicular graphite cast iron offers a 75% increase in tensile strength, a 40% increase in elastic modulus, and a 100% increase in fatigue strength.

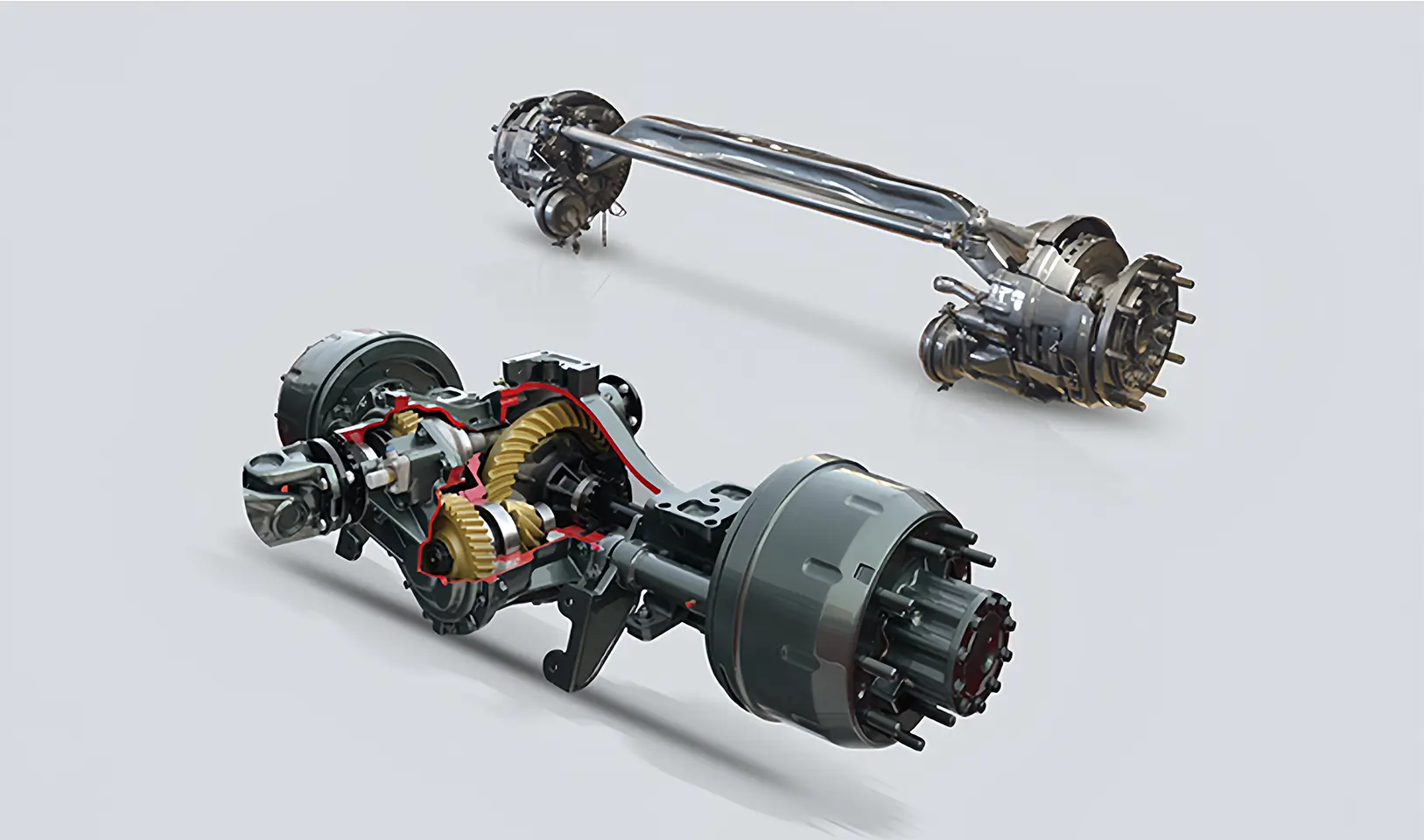

Axles - Carry More, Cost Less

The MC series drive axles and V series steering axles are engineered based on advanced German axle technology and improved with the latest technical standards, offering higher transmission efficiency, superior heat dissipation, increased load capacity, and extended service life to accommodate various road conditions. The main reducer utilizes an Oerlikon gear, offering a 10% increase in strength and improved transmission efficiency

Specifications

SINOTRUK HOWO- 7 8X4 DUMP TRUCK
Production Year	new truck.
Cabin	HW76 cab, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver’s seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer,with 4-point support fully floating suspension + shock absorber. High steel bumper, With inter-cooler fence.
Engine	Diesel 4-stroke direct injection diesel engine Engine model: WD615.47, 371HP 6-cylinder in-line with water cooling, turbo-charging and intercooling
Transmission	HW19710, 10F & 2R, with HW50 PTO Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)
Steering	ZF power steering, model ZF8098, hydraulic steering with power assistance
Propeller Shaft	Double universal joint propeller shaft with gear-shaped coupling flange
Front Axle	VGD95, 9500 KGS Steering with double T-cross section beam
Rear Axle	MCP16ZG, 2*16000KG Pressed axle housing, central Single reduction with hub reduction and with differential locks between wheels and axles.
Chassis	Front suspension:11 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension:11leaf semi-elliptic springs, bogie spring and stabilizer
Brake	Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake
Electrics	Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Fuel Tank	300L
Tire	12.00R20, Radial (steel wire) Tires. 12+1 Pics
Cargo Body	7300X2300X1700mm, 28.54Cubic Meters Thickness: Floor 8 mm, Side 6 mm Front Lifting System
Overall Dimension	1180025503500 mm
Color	Optional

Gallery

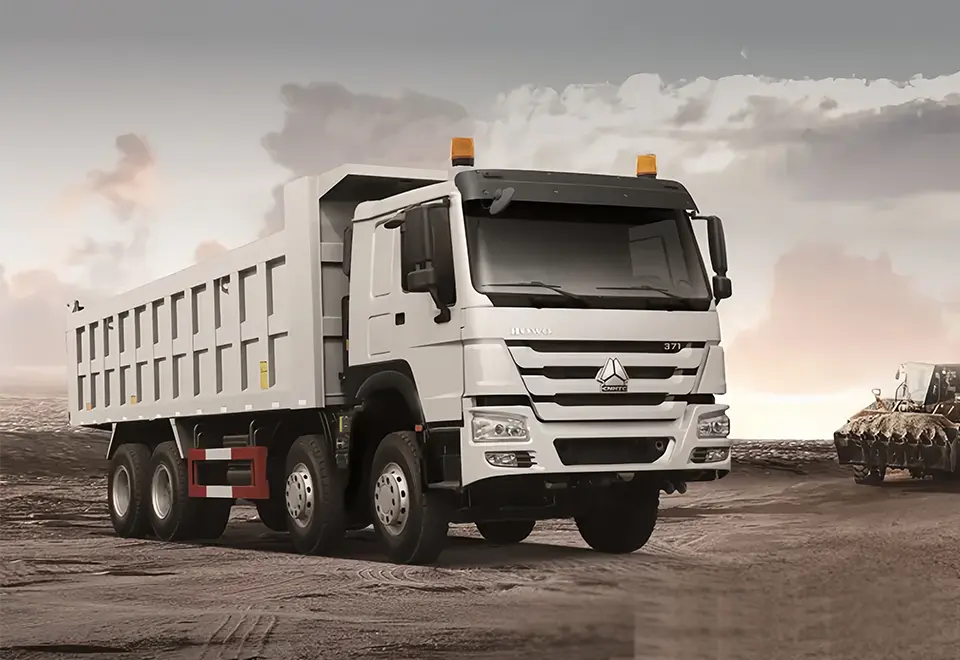

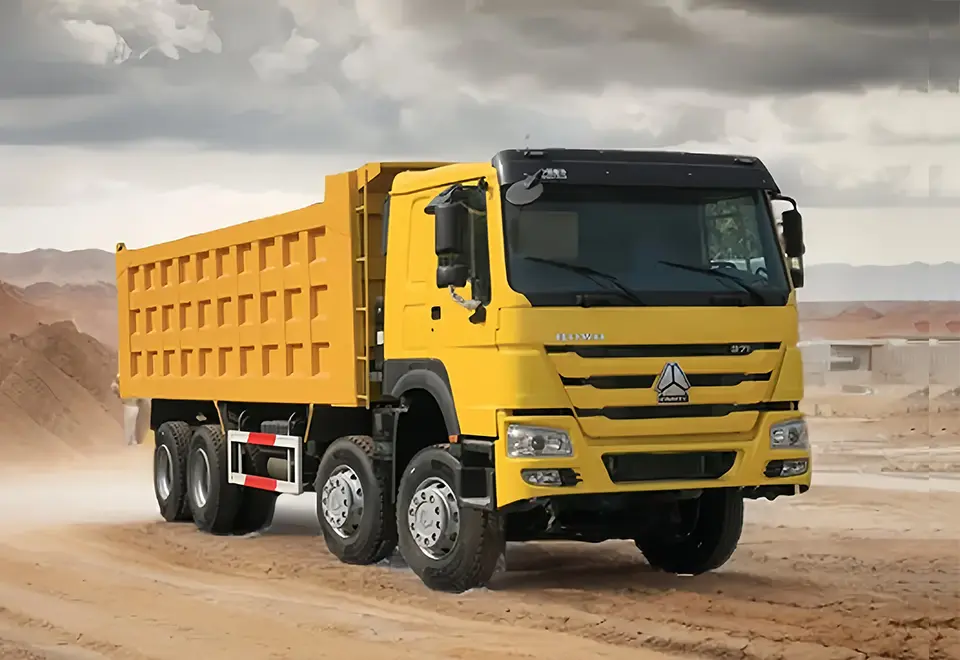

Sinotruk Howo-7 8×4 Dump Truck – 371HP 50-Ton Mining & Construction Tipper
